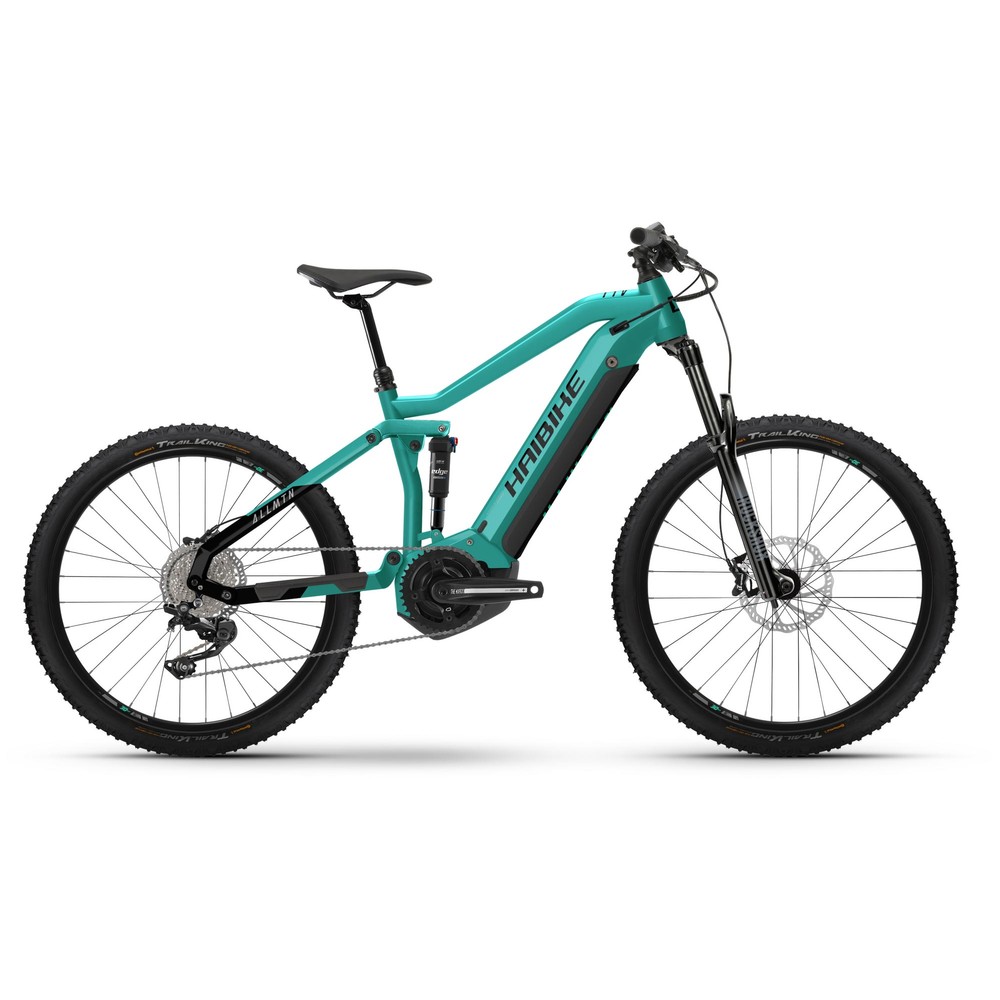

Haibike AllMtn 1 Electric Mountain Bike 2022
Designed to yield epic performance on technical terrain, the Haibike AllMtn 1 Electric Mountain Bike aims to please both new and existing cyclists with its wide range of features. Featuring 160mm of suspension travel both front and rear and a powerful Yamaha PW-ST 250w/70Nm motor system, this model is highly capable when it comes to both descending and climbing. This bike has an electric-assisted speed limit of 15.5 mph / 25 km/h. The mixed wheel setup sees a 29” front wheel and 27.5” rear combination, which keeps the ride both stable and agile on the trail.
For long-lasting power, this model features a 630Wh high-capacity Yamaha battery, keeping you focused on the ride and not your range. The RockShox 35 Silver fork is plush and supple, offering excellent traction for unrivalled grip when cornering. The Tektro Orion brakes have four pistons to improve their braking power, and the Continental Trail King tyres provide high levels of grip and a fast-rolling speed for performance on hardpack trails.
Browse our range of Haibike electric mountain bikes today.
Highlights
- Powerful Yamaha motor system with 250w of power and 70Nm of torque, 25km/h maximum assistance
- The lightweight 6061 aluminium frame features 160mm of bump-eating suspension travel
- 11-speed Shimano Deore drivetrain
- Long-lasting 630Wh Yamaha InTube battery provides excellent range
- Yamaha Side Switch display features seven functions and a 1.7” screen
- 160mm RockShox 35 Silver suspension fork
- Powerful Tektro Orion four-piston hydraulic disc brakes offer control when descending
Battery Specifications
- Maximum Assist: 250w / 70Nm torque
- Motor Weight: 3.4kg
- Battery Power: 630Wh
Technical Specification
| Frame | Haibike, AllMtn Yamaha i630, aluminium |
| Fork | RockShox, 35 Silver, Air, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | SR Suntour, Edge LO-R8, Air, Trunnion Mount M8x25 |
| Stem | Haibike Components The Stem, alu, A-head, 31.8mm |
| Grips | Haibike, MTB grips |
| Handlebar | Haibike Components The Bar Gravity, 780mm |
| Front Brake | Tektro Orion M745, hydraulic disc brake, four-piston, 180mm |
| Rear Brake | Tektro Orion M745, hydraulic disc brake, four-piston, 180mm |
| Brake Levers | Tektro Orion M745 |
| Rear Derailleur | Shimano Deore M5100, 11-speed |
| Shifter | Shimano Deore M5100, trigger switch, 11-speed |
| Chain | KMC, X11E |
| Cassette | Shimano M5100, 11-51t |
| Crankset | Haibike, forged, aluminium |
| Front Wheel | Rim - Rodi, Tryp 30, with eyelets, hollow rim, aluminium / Hub - Haibike Components The Hub, 6-bolt standard |
| Rear Wheel | Rim - Rodi, Tryp 30, with eyelets, hollow rim, aluminium / Hub - Haibike Components The Hub, 12x148mm, 6-bolt standard |
| Front Tyre | Continental Trail King, 65-584, 29 x 2.4 inch, clincher |
| Rear Tyre | Continental Trail King, 65-584, 27.5 x 2.4 inch, clincher |
| Saddle | Selle Royal Vivo 1216HRN |
| Seatpost | Haibike Components The Seatpost, aluminium, 31.6mm |
| Pedals | Freeridepedal, aluminium |
| Motor | Yamaha PW-ST System, 250w, 70 Nm, 25 km/h |
| Battery | Yamaha InTube, 630Wh |
| Ui/Remote | Yamaha Side Switch, 1.7" LCD, seven functions |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Haibike AllMtn 1 Electric Mountain Bike 2022 Sizing
