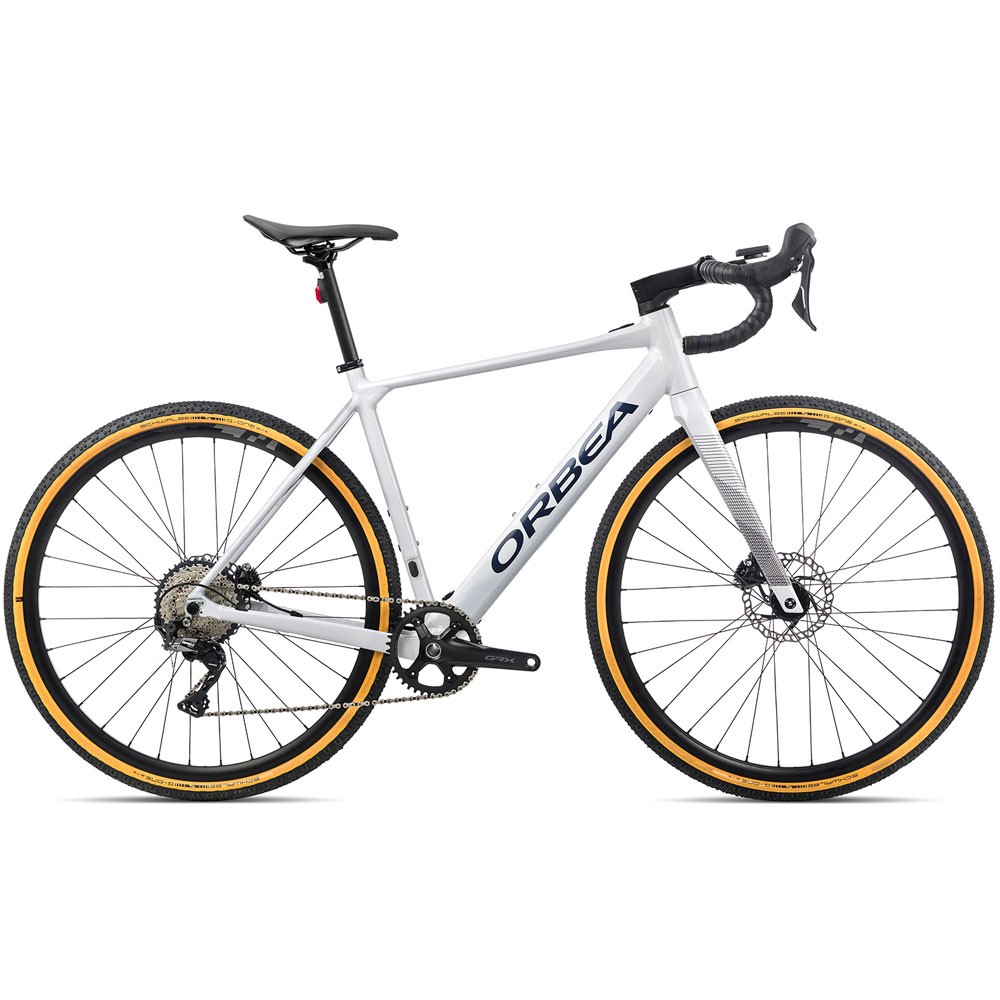

Orbea Gain D30 1X Electric Road Bike 2022
Featuring a robust, hydroformed aluminium frameset and a stealthily integrated Ebikemotion X35 Plus motor system, the Orbea Gain D30 1X Electric Road Bike can conquer any terrain. Fast and lively, the frame is lightweight, stiff and responsive, and the low weight of the motor and battery enhances the handling for pinpoint control. Adjustable via the Ebikemotion iWoc ONE top tube interface, there is a range of assistance settings available to provide assistance up to a maximum speed of 15.5 mph / 25 km/h, allowing you to put as much or as little effort in as required, vanquishing hills and eliminating headwinds as necessary.
Integrated lights add a degree of visibility for riding in low-light conditions, drawing their power from the battery to ensure there is only a single charge required. The Shimano RX400 hydraulic brakes are reliable, offering supreme braking performance in all weather conditions. A Shimano GRX groupset is highly durable and designed to survive the rigours of gravel riding, while the Schwalbe G-ONE tyres feature a wide 38c width to deliver epic traction on loose surfaces.
Browse our range of Orbea electric road bikes today.
Highlights
- The Ebikemotion X35 Plus motor improve your rides rather than dominates them
- The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
- ICR Plus internal cable routing keeps the cockpit clean looking
- Integrated lights draw power from the main battery
- The Ebikemotion 248Wh battery is neatly housed in the downtube
- The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
- The hydroformed aluminium frame is lightweight and robust
- Endurance geometry is perfect for all-day rides
- Shimano GRX 11-speed groupset is ideal for gravel riding
- Schwalbe G-ONE tyres are plush and comfortable off-road, providing plenty of grip on a range of surfaces
Battery Specification
- Maximum Assist: 250W, 40Nm
- Motor Weight: 3.5kg
- Battery Power: 248Wh
Technical Specification
| Frame | Orbea Gain Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximum tyre, 1" 1/2 semi-integrated headset, 41 x 86.5 press-fit bottom bracket |
| Fork | Orbea Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tapered head tube compatible, 700x40c maximum tyre, flat mount disc mount, thru-axle 12x100mm |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | Orbea OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface |
| Handlebar | Orbea OC GR30 Gravel, 80mm reach, 125mm drop, 12° flare |
| Front Brake | Shimano GRX400 hydraulic disc |
| Rear Brake | Shimano GRX400 hydraulic disc |
| Brake Levers | Shimano GRX400 |
| Rear Derailleur | Shimano GRX812 GS 11-speed |
| Shift Levers | Shimano GRX ST-RX600 11-speed |
| Chain | KMC X11 |
| Cassette | Shimano SLX M7000 11-40t 11-Speed |
| Crankset | Shimano GRX RX600 40t |
| Front Wheel | Orbea Ready GR, clincher, 700c |
| Rear Wheel | Orbea Ready GR, clincher, 700c |
| Front Tyre | Schwalbe G-ONE Bite, 700x38c, Performance Line RaceGuard, TLE, ADDIX Classic Skin, clincher |
| Rear Tyre | Schwalbe G-ONE Bite, 700x38c, Performance Line RaceGuard, TLE, ADDIX Classic Skin, clincher |
| Seatpost | Orbea OC 27, zero offset, for integrated light |
| Pedals | Available to be purchased separately |
| Accessories | 60 Lumen COB LED front light on display holder, 11-lumen Lezyne STVZO seatpost mounted rear light |
| Motor | Ebikemotion X35 Plus, 250W, 40Nm |
| Remote | Ebikemotion iWoc ONE |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Charger | Ebikemotion X35 |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
