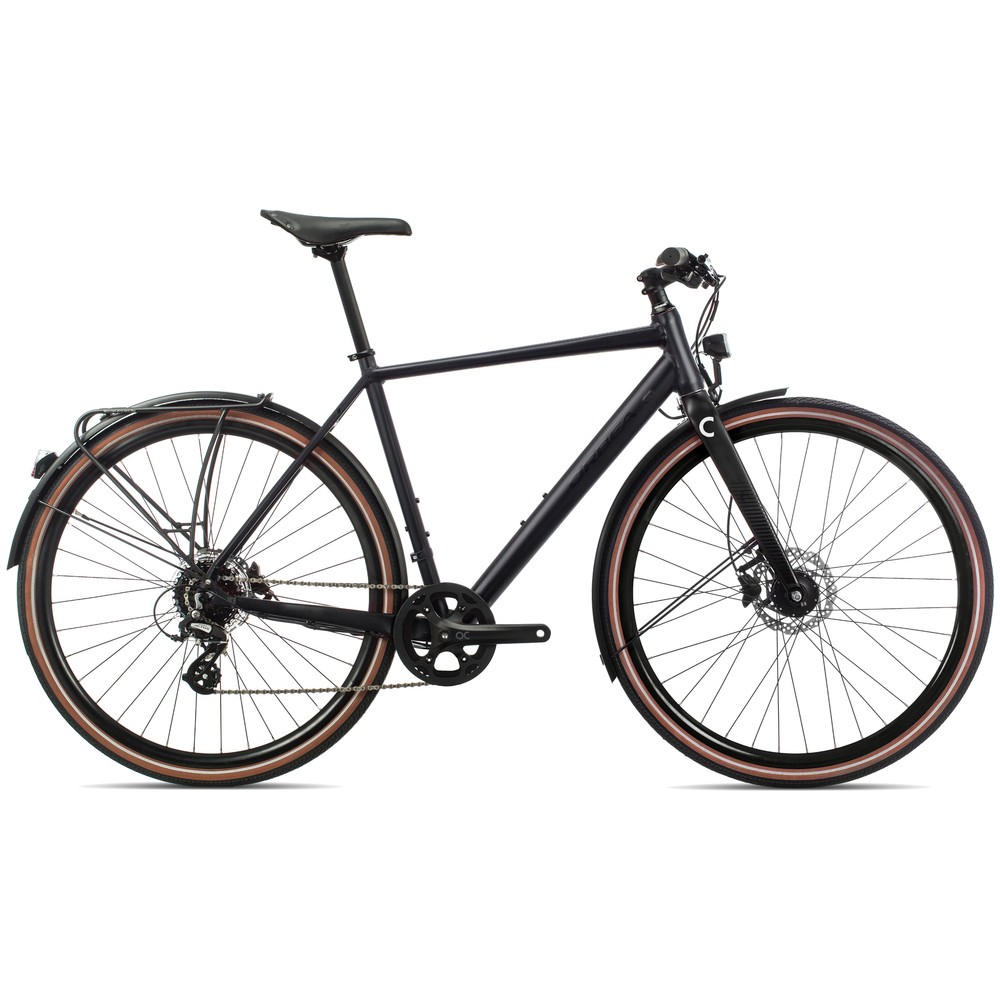

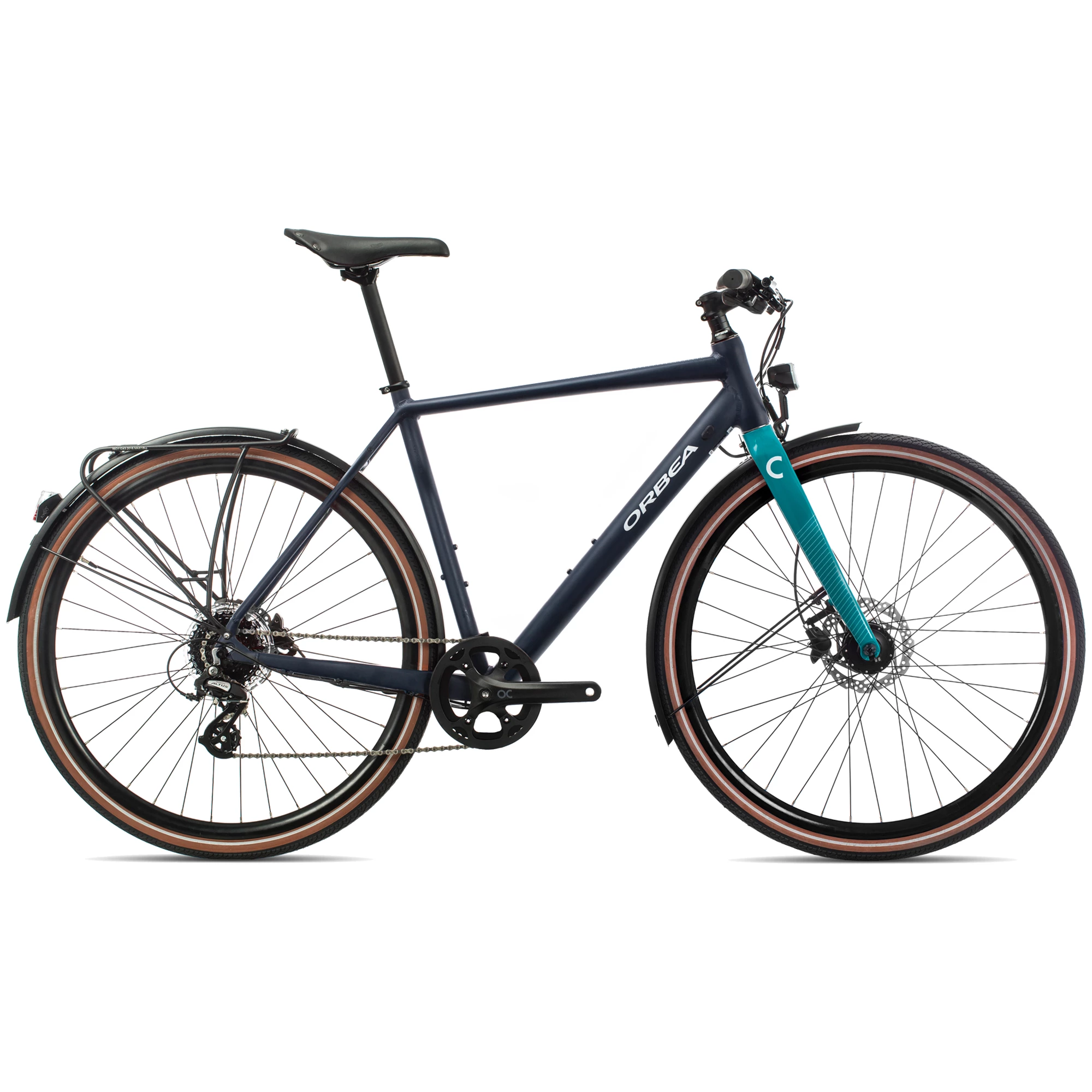

Orbea Carpe 25 Disc Hybrid Bike 2020
Light, versatile and comfortable, the Orbea Carpe 25 Disc Hybrid bike is one that will excel on the city streets, be that when commuting, visiting the sites or simply spinning to the shops. The aluminium frame and fork keep weight low, and the bike has been built up with reliable Shimano components, including powerful hydraulic disc brakes for confident stopping regardless of the conditions.
The Orbea wheels include a Dynamo hub, powering the included lights, and they roll on wide, shock-absorbing tyres with reflective elements furthering your visibility to others out on the roads. There are practical features included too, the mudguards will get you to your destination dry, and there's a rear carrier for if you wish to carry more luggage.
Highlights
- Lightweight aluminium frame and fork
- Balanced Sport geometry
- Shimano components
- Hydraulic disc brakes
- Front and rear lights
- Reflective tyres
- Mudguards and rear carrier included
Please note: Spec is as listed, images are for illustration of colourway only.
Technical Specification
| Frame | Orbea Urban Speed, Aluminium 6000, Orbea tube shaping, Flat Mount disc brake, 135x9mm quick release, carrier and mudguard compatible, maximum 700x40C tyre clearance, inner cable routing |
| Fork | Orbea Speed 400mm Alloy Flat mount |
| Headset | 1-1/8” semi-integrated |
| Handlebar | Orbea alloy 31.8mm riser, 640mm |
| Stem | Orbea alloy 31.8mm interface 7°, 70mm |
| Front Brake | Shimano MT200 Hydraulic Disc |
| Rear Brake | Shimano MT200 Hydraulic Disc |
| Brake Levers | Shimano SL-M315 |
| Front Derailleur | n/a |
| Rear Derailleur | Shimano Altus M310 |
| Shift Levers | Shimano SL-M315, 8-speed |
| Cassette | Shimano HG200 12-32t 8-Speed |
| Crankset | Prowheel 42 steel, custom logo |
| Chain | KMC X8 |
| Front Wheel | Orbea Airline Corsa Disc, 700X19c, Shimano DH-3D37-NT, 6V Dynamo 3.0W hub |
| Rear Wheel | Orbea Airline Corsa Disc, 700X19c |
| Front Tyre | Kenda K1067 700x38C Reflective type+puncture protection, clincher |
| Rear Tyre | Kenda K1067 700x38C Reflective type+puncture protection, clincher |
| Saddle | Velo 1221 |
| Seatpost | Alloy 27.2mm, Offset 0 |
| Pedals | VP-538 Black |
| Extras | Joss Spanninga Kendo XDAS Dynamo front light / Spanninga Pixeo rear light / SKS EDGE Alloy C46R mudguards / Yuan yi YA-267 rear carrier |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
