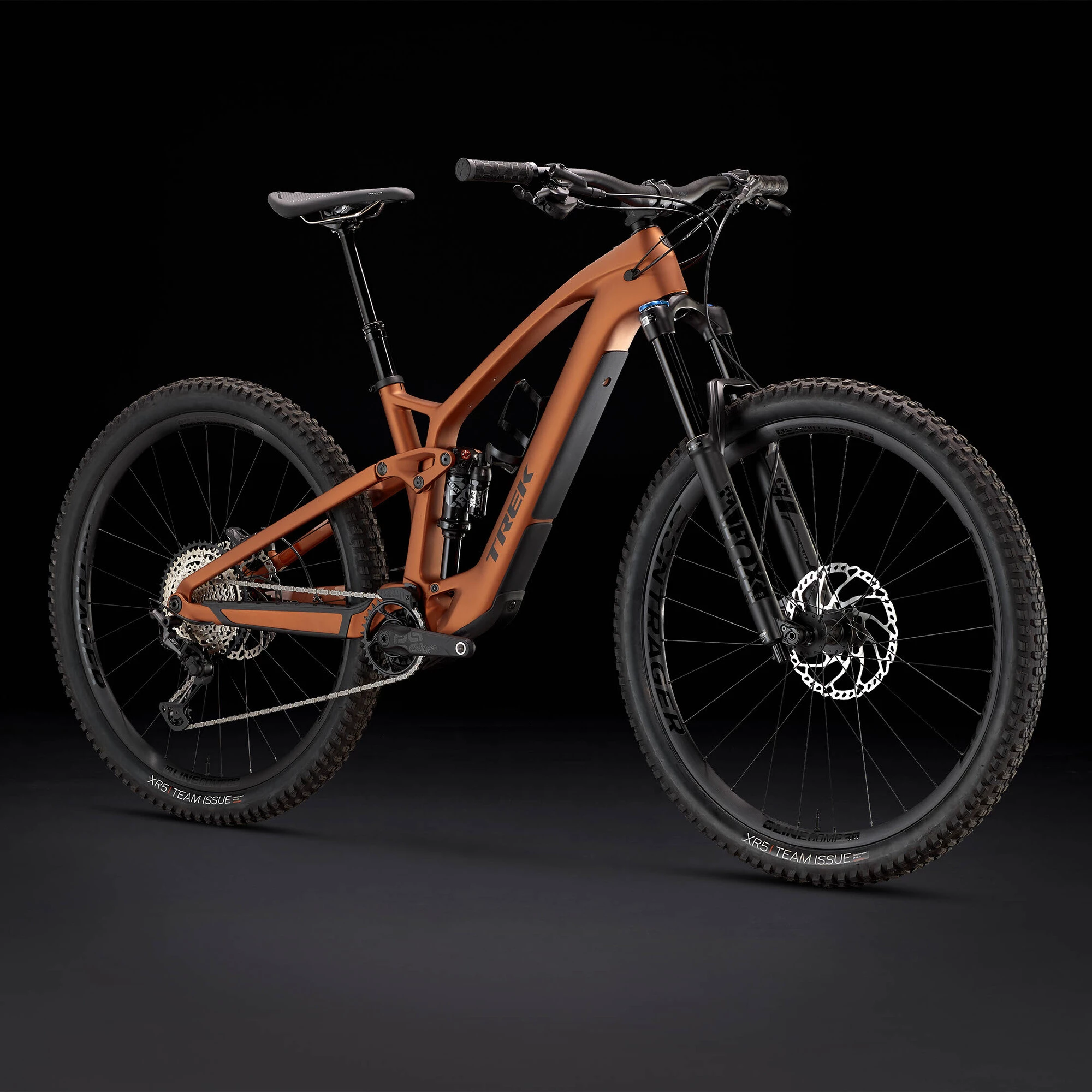

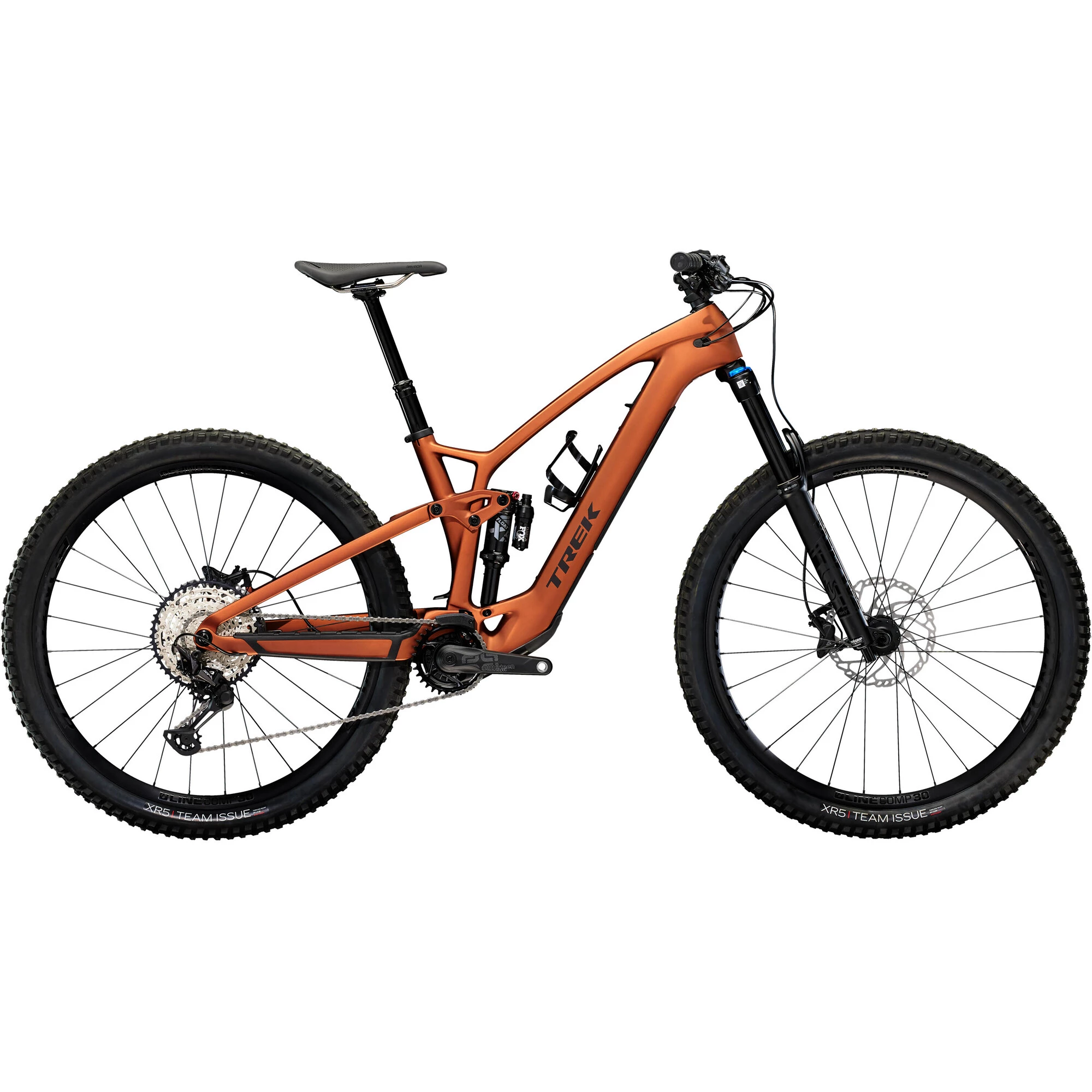

Trek Fuel EXe 9.7 Electric Mountain Bike 2023
A trail bike extraordinaire, Trek’s Fuel EXe 9.7 Electric Mountain Bike is agile and efficient, with a compact motor that makes the climbs almost as much fun as the descents.

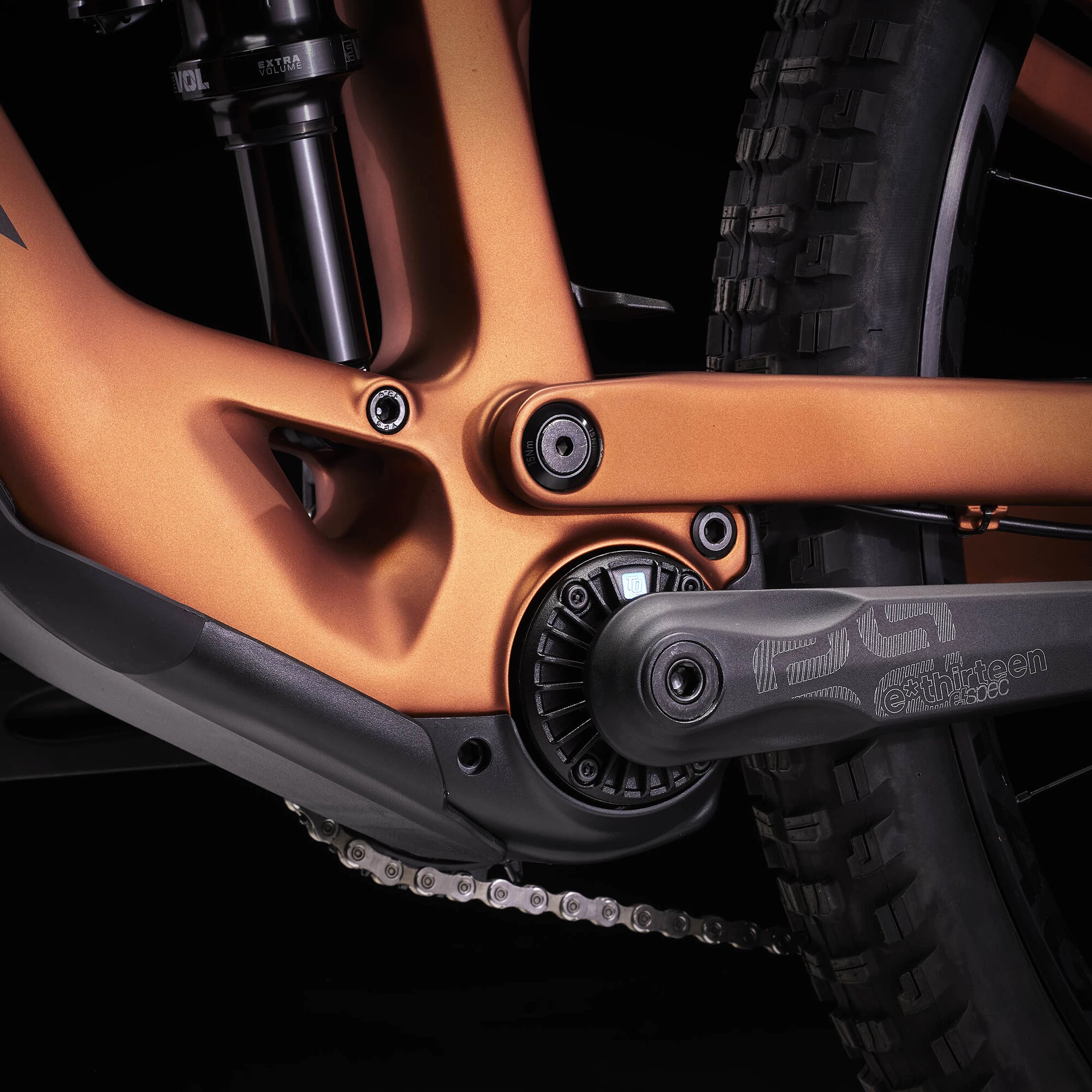

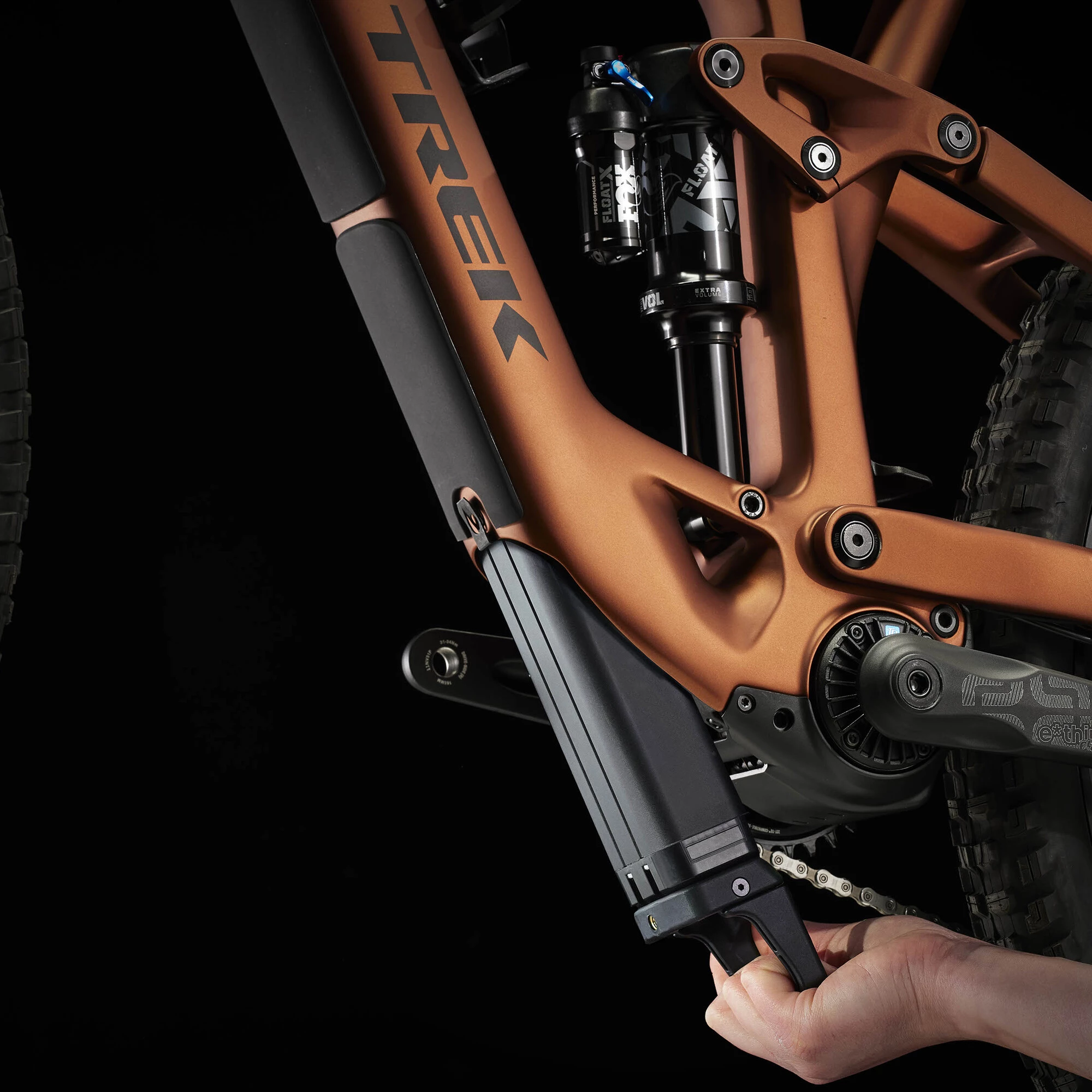

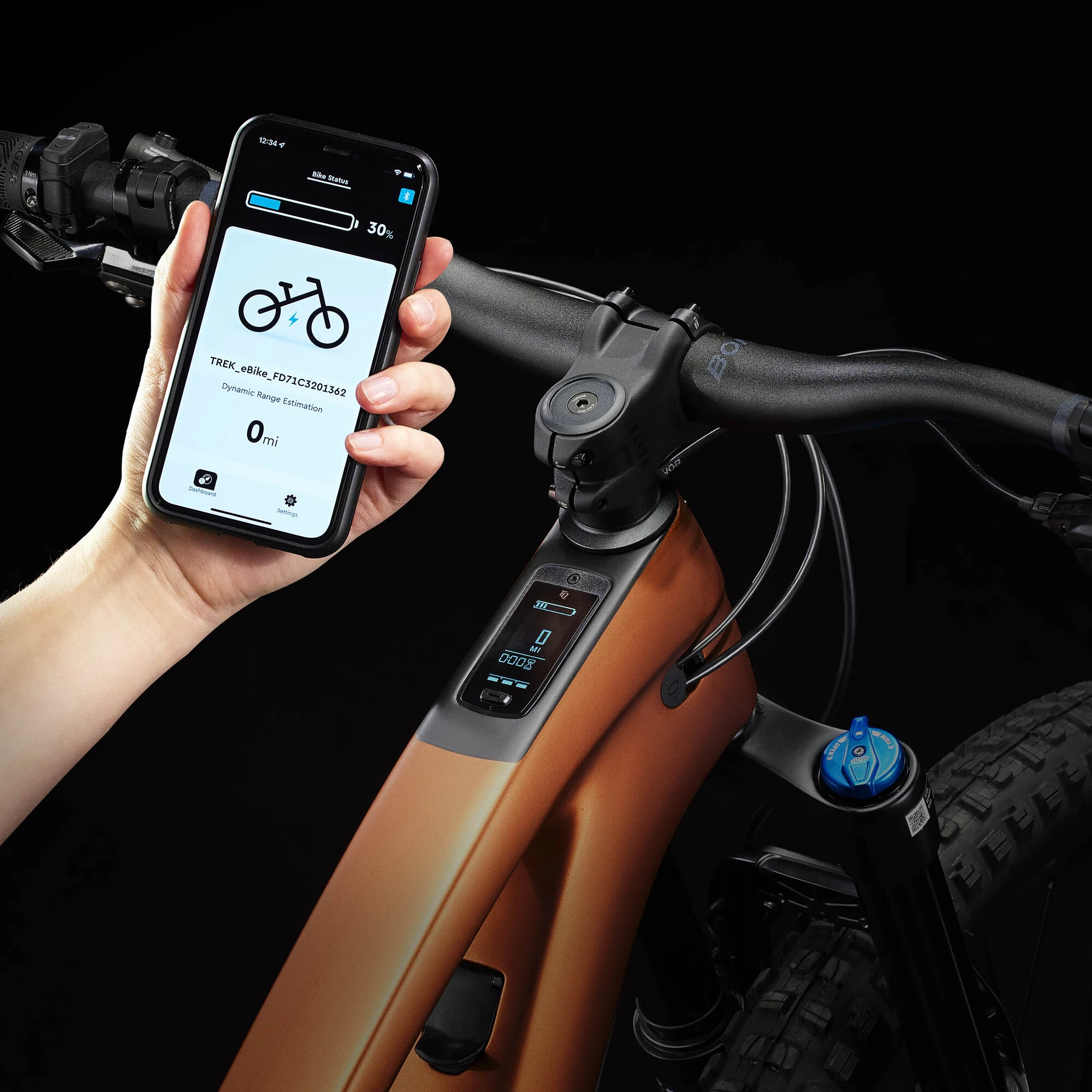

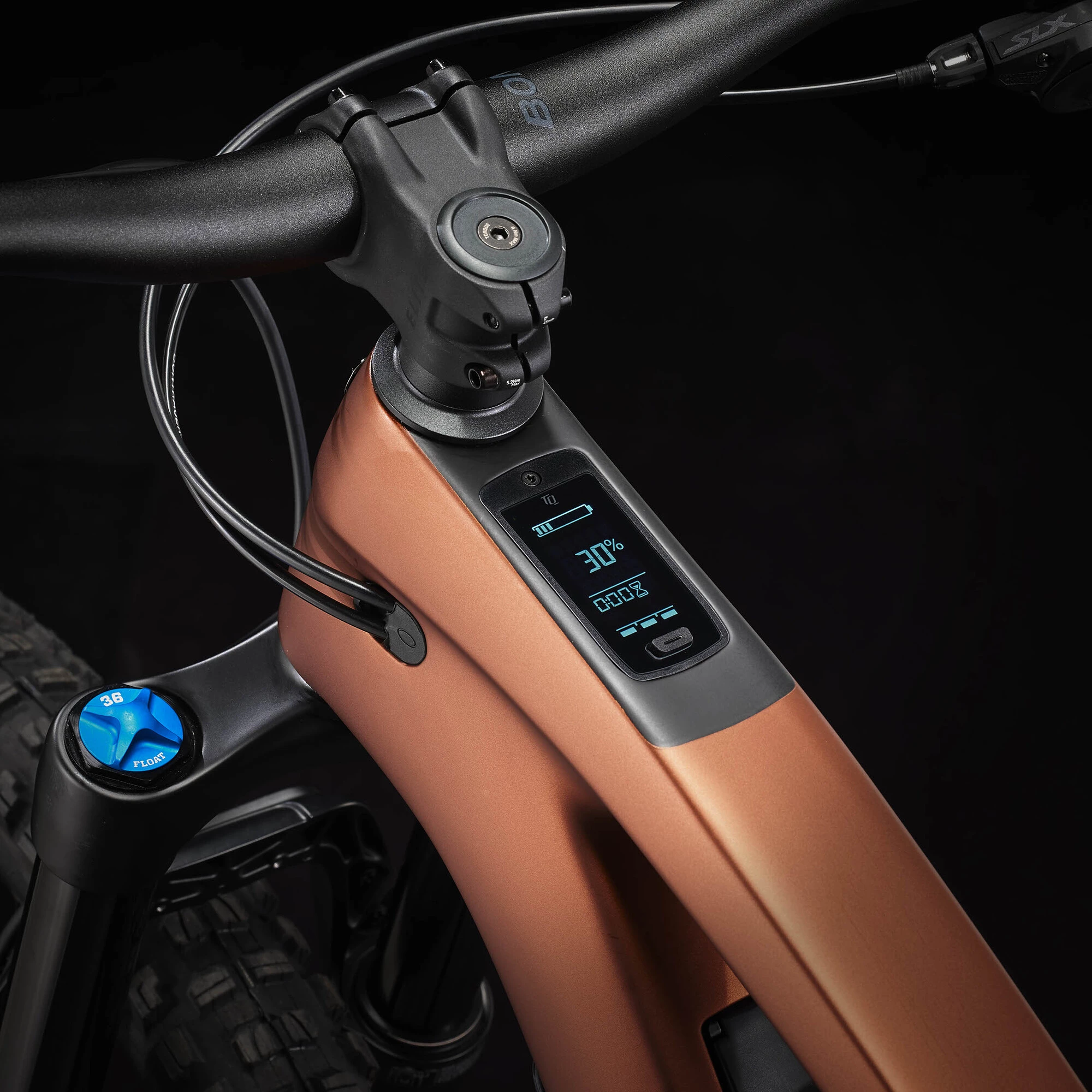

At the bike’s heart is the unique, 300W TQ-HPR50 motor. Its Harmonic Pin-Ring (HPR) design means that it is quieter, lighter and more compact than belt drive motors, providing natural feeling assistance up to 15.5 mph / 25 km/h. The responsive nature of the power delivery is superb when climbing technical trails or flicking through windy singletrack and underlies the trail-ready nature of the Fuel EXe. The 360Wh battery can be charged in situ in the downtube or removed if required, and the top tube display gives access to the bike’s power modes and other ride information.

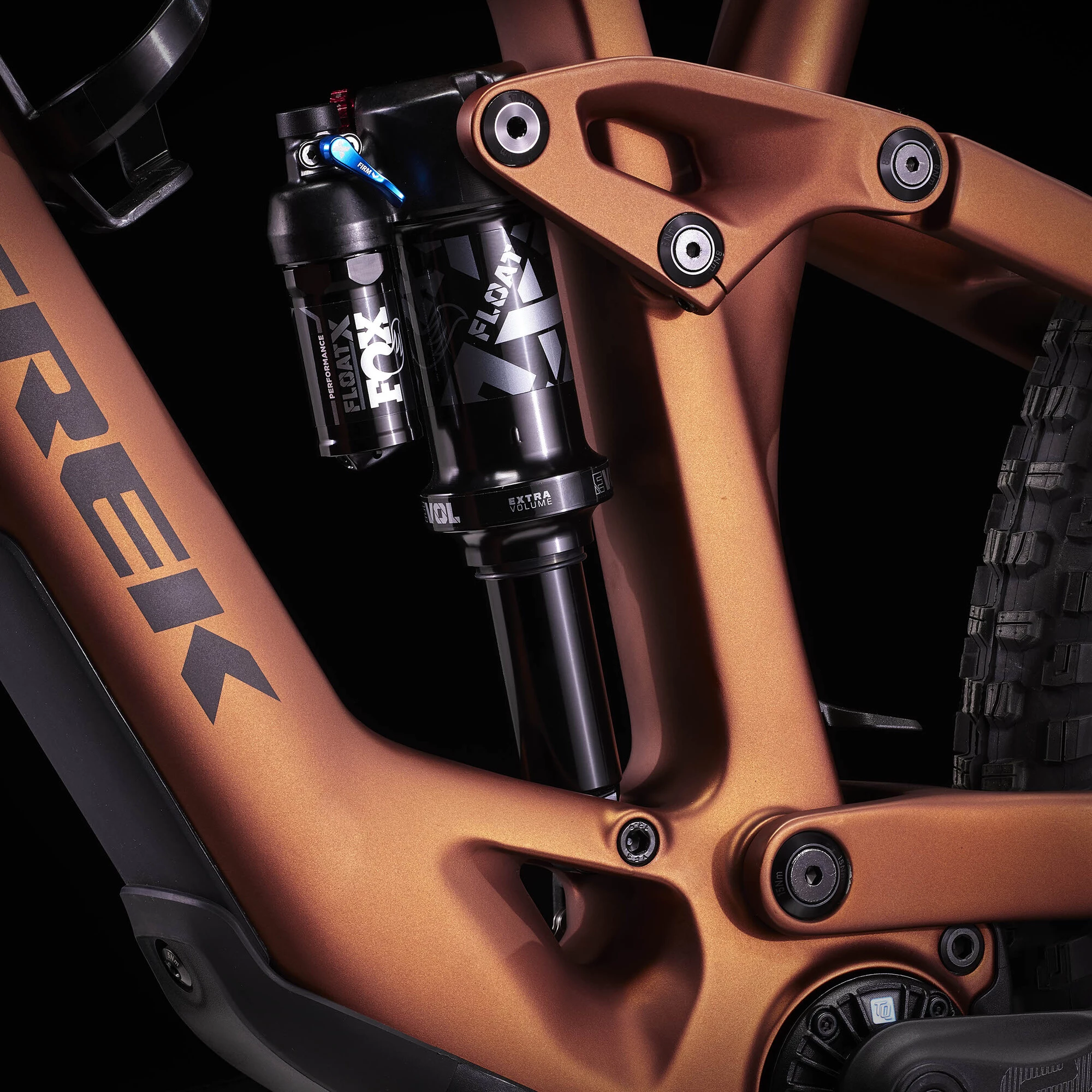

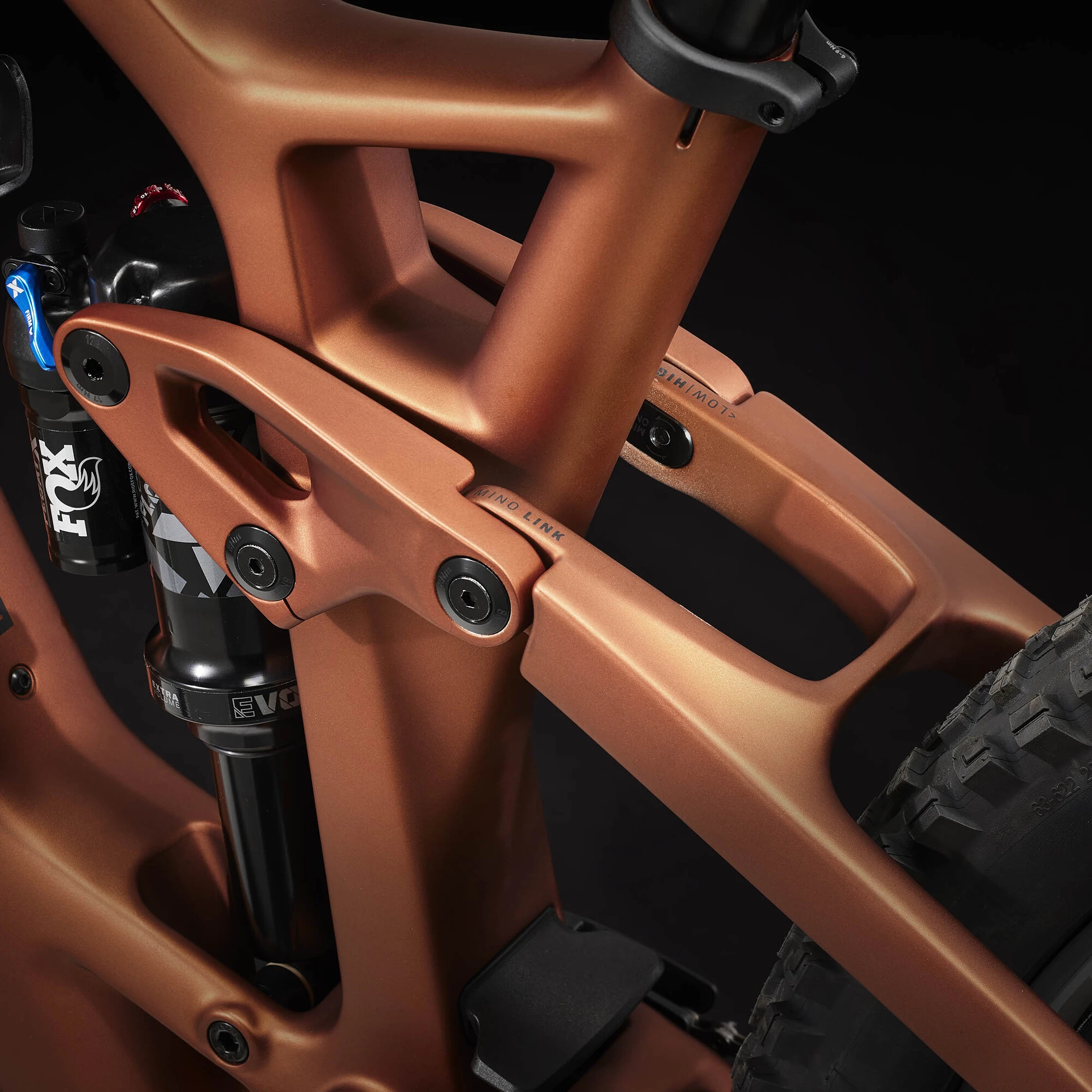

The carbon frame offers 140mm of travel from the FOX Performance Float X shock, paired with the 150mm FOX Rhythm 36 Float fork. The switchable Mino Link allows the geometry to be altered by about 1/2° to fine-tune the handling and mechanics will love the internal channels in the frame that make cable replacement simpler.
The curated mix of components includes a 12-speed Shimano XT derailleur paired with SLX shifters for reliable gear changes and SRAM 4-piston hydraulic disc brakes for tireless control. The wide-range 10-51-tooth cassette ensures ample ratios for any climb and the TranzX dropper seatpost allows the saddle to be instantly lowered for tricky descents.
29” wheels allow the ground to be covered quickly and efficiently, with both the rims and the Bontrager XR5 Team Issue tyres being tubeless-ready so that low pressures can be safely used for greater grip without fear of pinch punctures.
Browse our range of Trek electric mountain bikes today.
Highlights
- Trek OCLV Mountain Carbon frame with FOX Performance Float X shock and Mino Link, 140mm of travel
- FOX Rhythm 36, Float EVOL fork, 150mm of travel
- Shimano XT / SLX, 12-speed drivetrain
- SRAM Code R 4-piston hydraulic disc brakes
- Bontrager Line Comp 30 wheels with XR5 Team Issue 29x2.50" tyres
- TranzX JD-YSP39 dropper seatpost
Battery Specifications
- Maximum Assist: 300w / 50Nm torque
- Motor Weight: 1.85kg
- Battery Power: 360Wh
Technical Specification
| Frame | Trek OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
| Fork | FOX Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel |
| Rear Shock | FOX Performance Float X, 2-position damper, 205mm x 60mm |
| Stem | Bontrager Elite, 35mm, 0°, 45mm length |
| Handlebar | Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Front Brake | SRAM Code R 4-piston hydraulic disc, 200mm rotor |
| Rear Brake | SRAM Code R 4-piston hydraulic disc, 200mm rotor |
| Brake Levers | SRAM Code R |
| Rear Derailleur | Shimano XT M8100, long cage |
| Shift Levers | Shimano SLX M7100, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Cassette | Shimano SLX M7100, 10-51, 12-speed |
| Crankset | E*thirteen E*spec Plus, 34T, 165mm length |
| Front Wheel | Bontrager Line Comp 30, tubeless-ready, 6-bolt, Boost110, 15mm thru-axle |
| Rear Wheel | Bontrager Line Comp 30, tubeless-ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12mm thru-axle |
| Front Tyre | Bontrager XR5 Team Issue, Inner Strength casing, aramid bead, 60 tpi, 29x2.50", tubeless-ready |
| Rear Tyre | Bontrager XR5 Team Issue, Inner Strength casing, aramid bead, 60 tpi, 29x2.50", tubeless-ready |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | TranzX JD-YSP39 dropper, internal routing, 34.9 mm, 100mm travel (Size S), 150mm (M), 170mm (L, XL) |
| Pedals | Available to be purchased separately |
| Manufacturer claimed weight | 19.05kg size M |
| Electric Assisted Speed Limit | 15.5 mph / 25 km/h |
| Motor | TQ-HPR50, 300 watt, 50Nm |

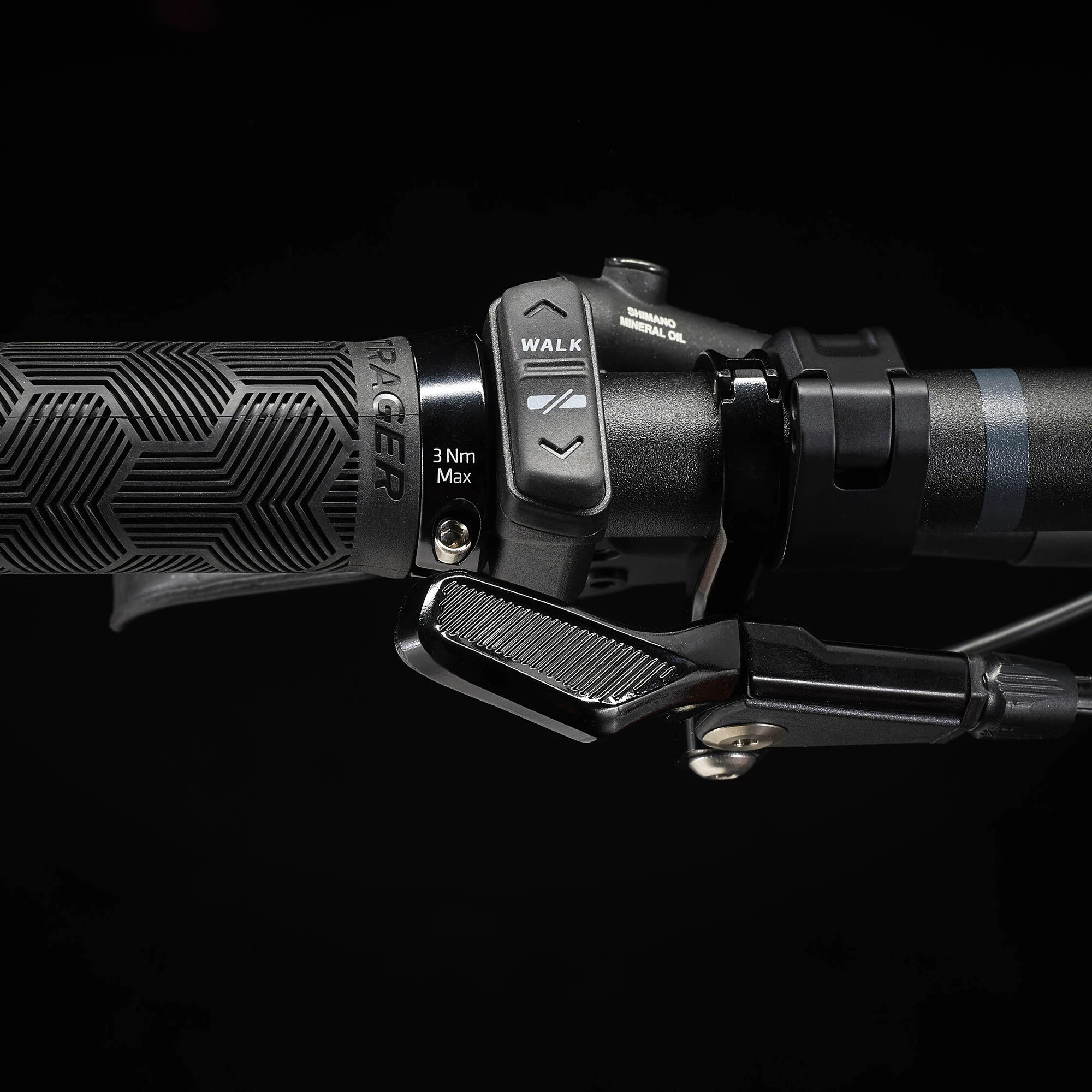

| Ui/Remote | TQ LED display with Bluetooth & ANT+ connectivity |
| Battery | TQ 360Wh |
| Charger | TQ 4A charger |
