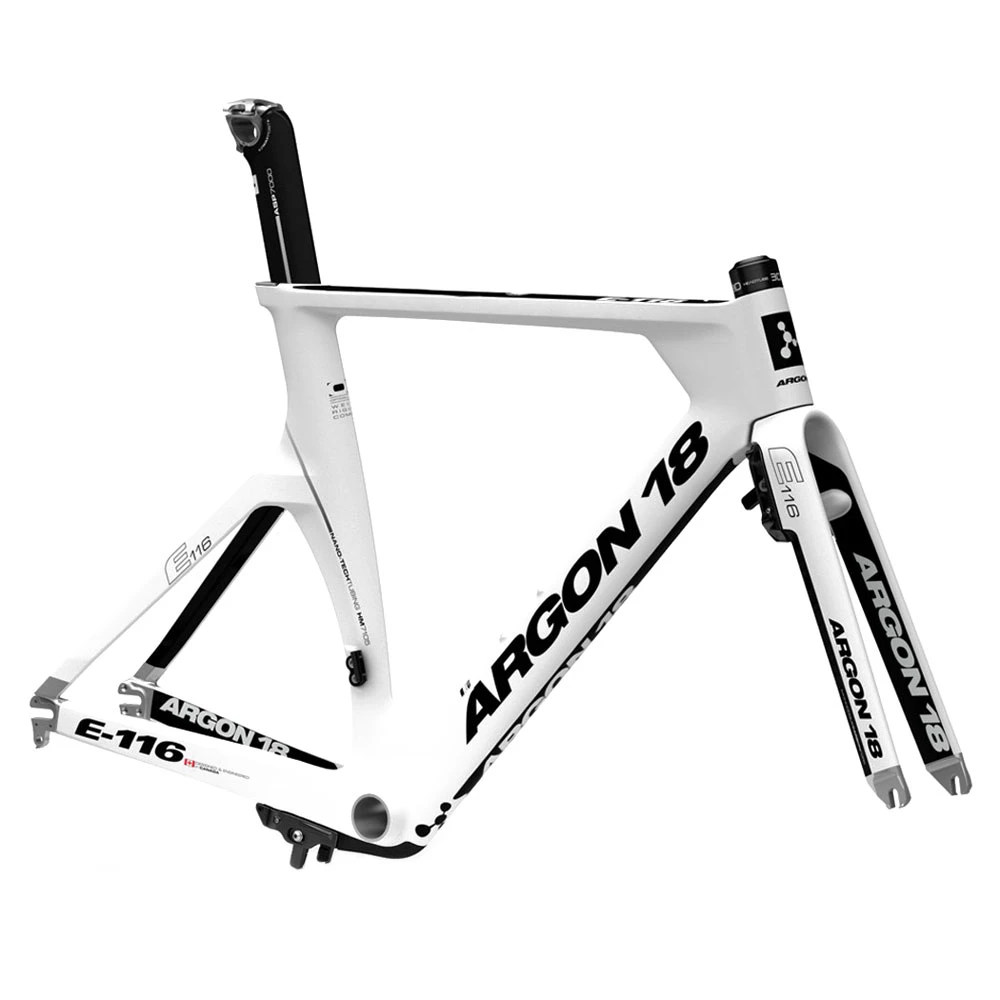

Argon 18 E-116 Frameset 2012

Argon 18 E-116 Frameset 2012

Feed your need for speed!

Argon 18 triathlon bikes are known for their stability and accurate tracking through turns. Embodying all the advantages of Argon 18’s Optimal Balance principle, the new E-116 is no exception to the rule. Built in the same mold, it benefits from the innovative aerodynamics research methodology used in developing the E-118.

The E-116 is an uncompromised racing frameset, the end result of an extensive development process that has called on cutting-edge science and technologies as well as sound cycling knowledge. An outstanding example of our prized Optimal Balance, the E-116 can help you optimize your performance too.

The E-116 is equipped with the 3D Headtube system, an Argon 18 exclusive. Easy to install and adjust, 3D replaces conventional spacers with a structural mechanism that allows for handlebar height adjustment without compromising front-end stiffness.

This device offers two main advantages:

• A rider can fine-tune the bar height without piling up an excessive number of conventional spacers, leaving the frame’s rigidity intact. Thanks to 3D, a handlebar set at a 15mm height preserves 5% more stiffness over a similar conventional set-up, and this figure reaches 11% with a bar set at a 25mm height.

• Since the 3D Headtube system offers three effective head tube lengths, a rider can set the right position initially, but can later revise this position as fitness, taste or riding style evolve over time.

Frame: 2012 Argon 18 E-116 carbon frameset 1425g (Medium size) with proven aerodynamic efficiency featuring Horizontal Dual System (HDS), 3D Headtube, NEW Integrated BB86 bottom bracket. NEW aero frame optimized by virtual windtunnel development (CFD): better aerodynamic results than the 2011 version E114 (details to be announced). NEW 6105 HM Carbon composite maximizing stiffness to weight ratios. The E116 frame is 10% lighter versus the E112 Braze-on front derailleur compatible with compact chainrings. Forged horizontal drop-outs with replaceable derailleur hanger. Stainless steel integrated chain tensioner included. Integrated fork crown race.

Fork: 2012 NEW E116 monocoque aero carbon fork (400g)

Finish: Gloss White

Parts: NEW ASP-7500 reversible (76/78 degree) carbon seatpost (275g), FSA Orbit IS-2 3D FSA TH-885 Compressor included.
