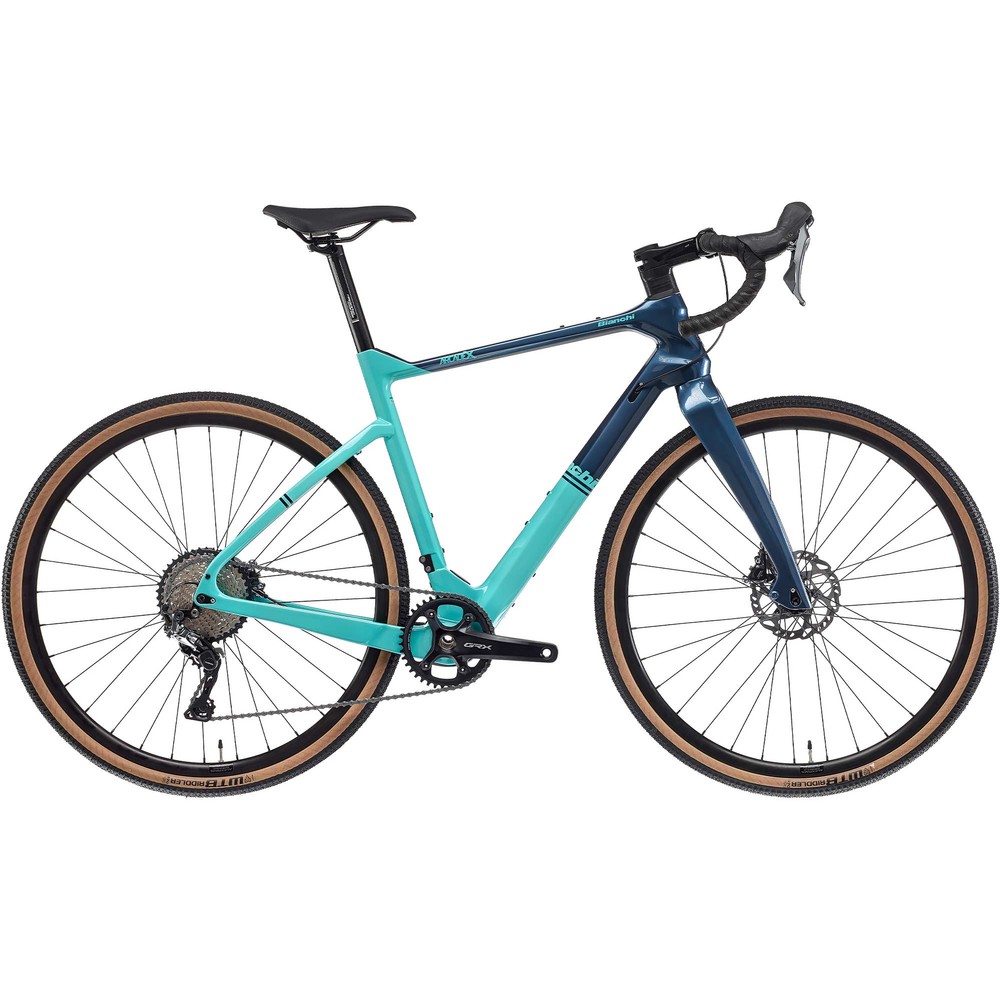

Bianchi Arcadex GRX600 40 Gravel Bike 2021
With a sculpted carbon frameset and off-road capability, the Bianchi Arcadex GRX600 40 Gravel Bike is ready to inject some Italian flair into your gravel rides. Designed to deliver the distinct Bianchi feel on all terrains, the Arcadex is built for modern adventure cyclists and sees a host of technical features help riders tackle rough terrain. The frame is sleek and aerodynamically optimised, and offers clearance for up to 700×42cc or 650×47cc tyres, to provide grip and compliance on harsh terrain. To ensure a consistent feel across the size range the chainstay length varies by frame size, with the stable geometry providing a confidence-inspiring platform for technical rides.
Mudguard eyelets add versatility, allowing the Arcadex to be the perfect choice for fast, multi-day bikepacking adventures. The dedicated seatpost and stem spacer design add a sleek aesthetic, supplying the bike with an integrated look. The 1 1/8th to 1.5" tapered head tube is stiff and stable, particularly under braking, and the hydraulic disc brakes deliver great poor-weather performance.
Durable and purpose-built, the Shimano GRX600 drivetrain is designed to cope with the rigours of gravel riding. A wide 11-42t cassette flattens hills, with the 11-speed drivetrain providing a wide range for all gradients and situations on the trail. The AlexRims GD24 rims are strong enough to survive seasons of abuse and are tubeless-ready to make converting from tubes a possibility.
Highlights
- Bianchi Arcadex full-carbon frameset
- Aerodynamic gravel design for fast, off-road adventures
- 11-speed Shimano GRX600 gravel-specific groupset
- 1x gearing with a wide range 11-42t cassette
- Durable tubeless-ready wheels
- Hydraulic Shimano disc brakes
- WTB Riddler 700x37cc tyres
- Up to 42cc tyre clearance
Technical Specification
| Frame | Bianchi Arcadex Carbon, 1.5" headset, 31.6mm seatpost diameter, thru-axle 12x142mm, flat-mount caliper, Pressfit 41 BB, compatible with up to a 42mm tyre, mudguards and pannier racks |
| Fork | Bianchi Full Carbon Disc, 1.5" headtube, flat-mount caliper, thru-axle 12x100mm |
| Bottom Bracket | Shimano BB-RS500-PB, Pressfit |
| Stem | FSA ST-OS-188/SMR-0°, 6061 aluminium , zero degree rise, 80mm (XS-SM), 100mm (MD), 120mm (LG/XL) |
| Handlebar | Bianchi aluminium 6061, 70mm reach, 16-degree flare angle , 120mm drop (40cm width), 130mm drop (42/44cm widths), 40cm (XS/SM), 42cm (MD/LG), 44cm (XL) |
| Bar Tape | Bianchi La Spirale cork ribbon tape |
| Front Brake | Shimano BR-RX400, hydraulic disc |
| Rear Brake | Shimano BR-RX400, hydraulic disc |
| Brake Levers | Shimano GRX 600 ST-RX600 |
| Rear Derailleur | Shimano GRX RD-RX812 11-speed |
| Shift Levers | Shimano GRX 600 ST-RX600 1x11-speed |
| Chain | KMC X11-1 EPT finish |
| Cassette | Shimano SLX CS-M7000, 11-42t, 11-speed |
| Crankset | Shimano GRX 600 FC-RX600 40T, Crank Length - 170mm (XS-SM), 172.5mm (MD-LG), 175mm (XL) |
| Front Wheel | Rim - AlexRims GD24 disc 622-21, tubeless-ready / Hub - Shimano FH-RS470 |
| Rear Wheel | Rim - AlexRims GD24 disc 622-21, tubeless-ready / Hub - Shimano FH-RS470 |
| Front Tyre | WTB Riddler Comp, 700x37 tubeless-ready |
| Rear Tyre | WTB Riddler Comp, 700x37 tubeless-ready |
| Saddle | Selle Royal 2315HRN, steel rail, open, 250x148mm |
| Seatpost | Bianchi Reparto Corse Alloy 6061 shaft, alloy head, 15mm offset, 31.6mm |
| Pedals | Available to be purchased separately |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
