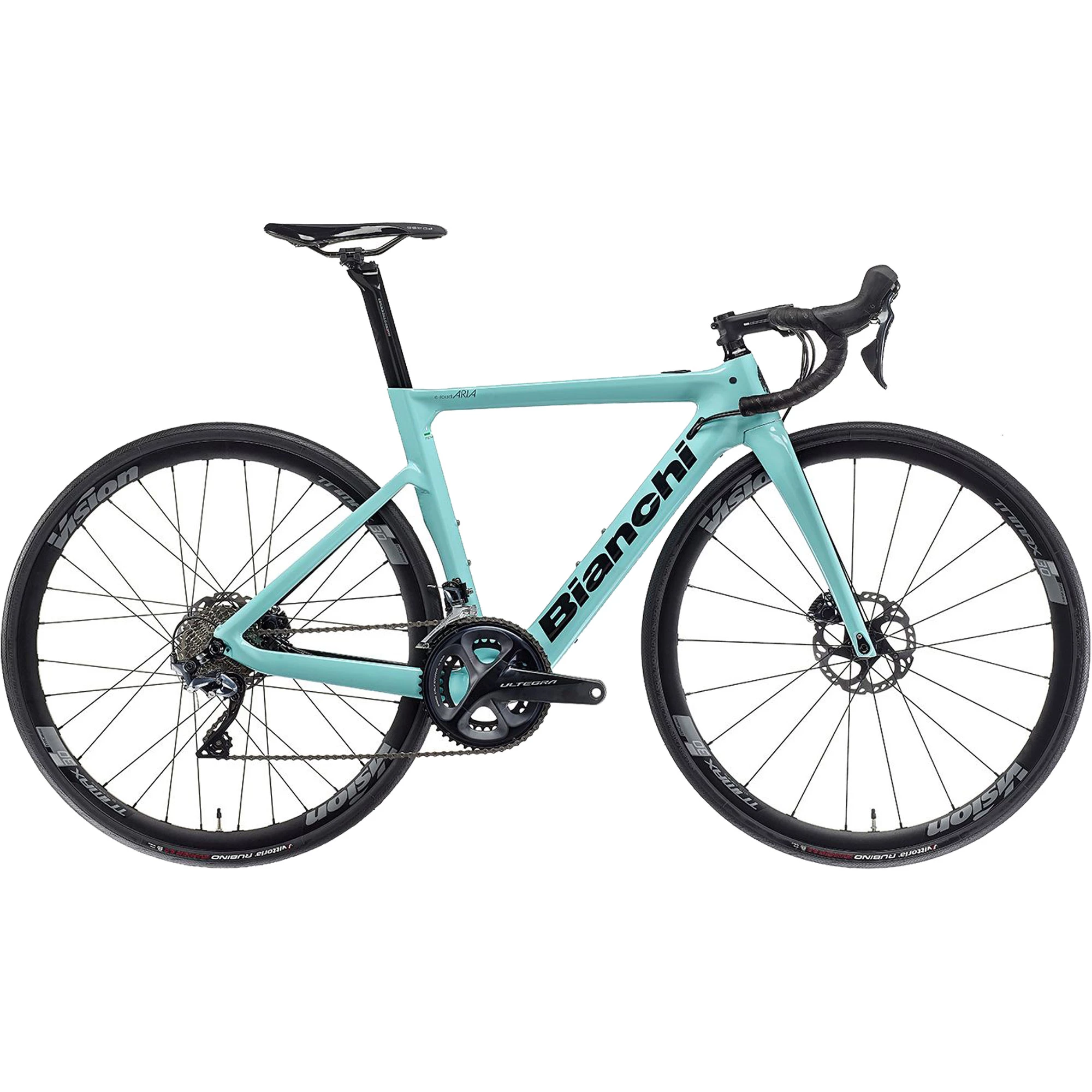

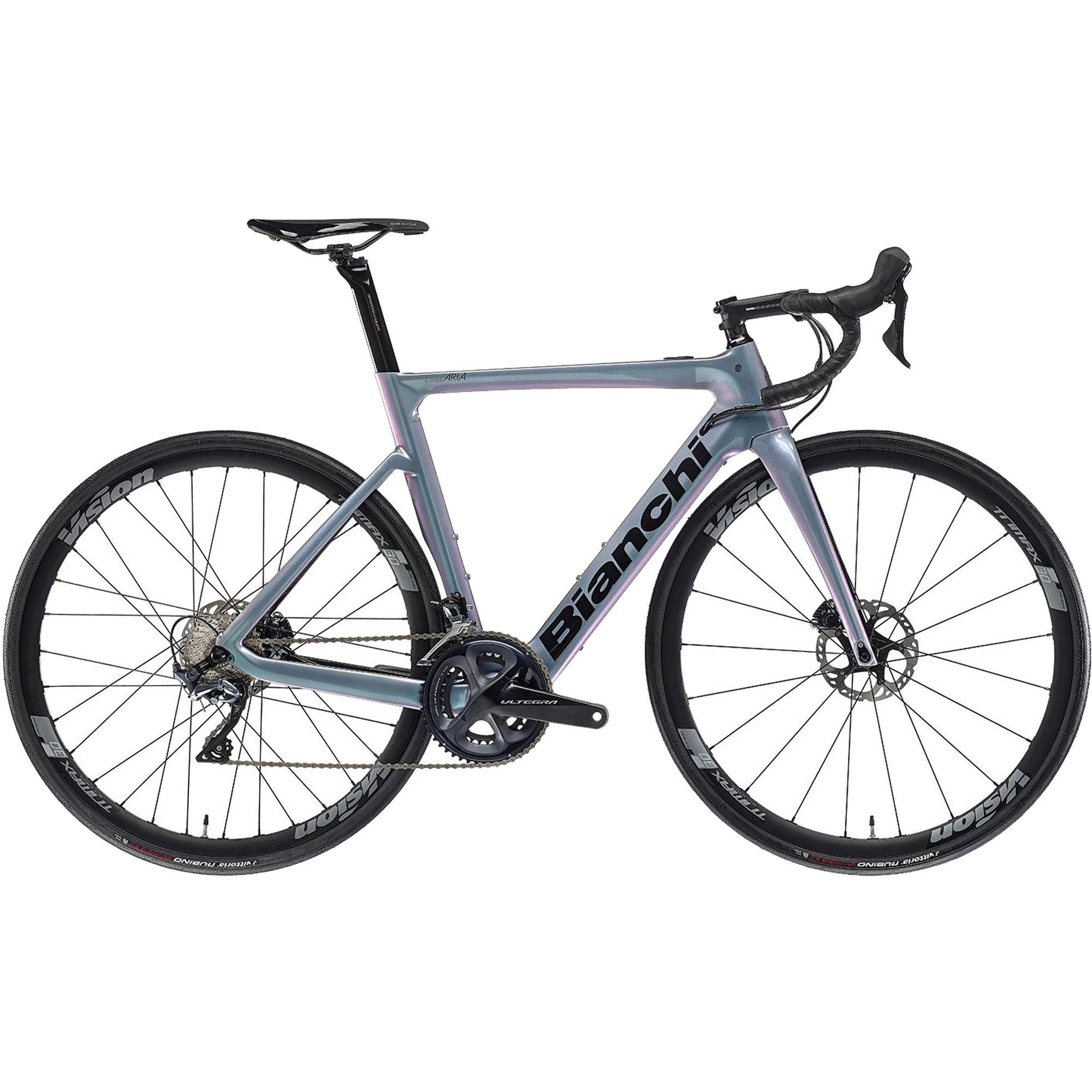

Bianchi Aria E-Road Ultegra Disc Electric Road Bike 2022
The Bianchi Aria E-Road Ultegra Disc Electric Road Bike offers smooth and powerful pedalling assistance and heightened efficiency to demanding riders who like to ride at the quickest speeds. The full carbon frameset is light and responsive and has sculpted tube sections to markedly lower aerodynamic drag. The frame conceals a long-lasting 36V battery entirely within its downtube to ensure undisturbed aesthetics. This battery links to the Mahle Ebikemotion X35 rear hub motor that pumps out assistance up to a maximum speed of 15.5 mph / 25 km/h to help the rider when the parcours is at its most challenging. The motor system has three different levels that can be easily controlled by the top tube integrated iWoc ONE button. When the battery is flat, it can be recharged in just four hours via the neat downtube charging port.
Race-inspired geometry places the rider in a powerful but comfortable position, and robust but lightweight alloy wheels promote a rugged but lively performance across even the roughest road surfaces. A Shimano Ultegra R8000 11-speed gear configuration shifts crisply amongst a broad set of sprockets. Hydraulic disc brakes complete the build, offering confidence-inspiring stopping power and control in all weather conditions.
Browse our range of Bianchi electric road bikes today.
Highlights
- A super light carbon electric road bike for expert riders requiring high performance
- The Mahle Ebikemotion X35 rear hub motor provides up to 250 watts of smooth pedalling assistance
- The Panasonic battery is long-lasting and is concealed entirely inside the down tube
- The system offers three assistance levels that can be toggled while riding
- An iWoc ONE control unit is integrated into the top tube, controls the motor power level and provides battery charge level information
- The battery and motor system is easily recharged from flat in four hours via the downtube charging port
- A full carbon frame is light, responsive and has aerodynamic tube shapes
- Race-inspired geometry positions the rider powerfully and comfortably over the pedals
- A Vision TriMax alloy wheelset is strong, reliable and reactive to acceleration
- Shimano Ultegra R8000 11-speed gears shift smoothly amongst a wide range of ratios
- Hydraulic disc brakes stop powerfully in all weather conditions
Battery Specifications
- Maximum Assist: 250w, 40Nm
- Motor Weight: 3.5kg (motor unit, integrated battery and remote)
- Range: Can handle up to 1200m of elevation gain (depending on rider weight, power level selected and riding conditions)
- Battery Power: 36V
- Charge Time: 3.5 to 4 hours from flat
Technical Specification
| Frame | Bianchi Aria E-Road carbon, mechanical/electronic shifting compatible, PressFit 86.5x41mm bottom bracket, headset 1.1/4"-1.1/8", integrated seat clamp, full carbon dropout, flat mount, QR system, OLD 135mm |
| Fork | Bianchi Full Carbon Disc 1.1/4"-1.1/8", thru-axle 12x100mm |
| Headset | Fsa Orbit C-33, NO.44E, 1.1/8"-1.1/4" |
| Bottom Bracket | Shimano SM-BB72-41B |
| Stem | Velomann 3D Forged alloy 2014, raise - 6°, height 38mm, 1.1/8", length - 90mm (sizes 48/50cm), 100mm (size 52/54cm), 110mm (size 56cm), 120mm (size 58cm) |
| Handlebar | Bianchi Reparto Corse Aero Compact, alloy 6061 31,8mm diameter, 74mm reach, 116mm drop, width - 400mm (size 44/53cm), 420mm (size 55/59cm), 440mm (size 61cm) |
| Grips | Bianchi La Spirale Ribbon cork |
| Front Brake | Shimano Ultegra BR-R8070 hydraulic disc caliper with Shimano SM-RT86 160mm rotor |
| Rear Brake | Shimano Ultegra BR-R8070 hydraulic disc caliper with Shimano SM-RT86 160mm rotor |
| Brake Levers | Shimano Ultegra ST-R8020, hydraulic |
| Front Derailleur | Shimano Ultegra FD-R8000 |
| Rear Derailleur | Shimano Ultegra RD-R8000 GS 11-speed |
| Shift Levers | Shimano Ultegra ST-R8020 2x11-speed, hydraulic disc brake / Shimano Ultegra ST-R8025 2x11-speed with smaller lever size for sizes 47/53cm |
| Chain | Shimano Ultegra CN-HG701-11, 11-speed |
| Cassette | Shimano 105 CS-R7000, 11-speed, 11-32T |
| Crankset | Shimano Ultegra FC-R8000 50x34T, Hollowtech II, Crank Length - 170mm (size 47/53cm), 172.5mm (size 55/59cm), 175mm (size 61cm) |
| Front Wheel | Vision Trimax Alloy disc |
| Rear Wheel | Vision Trimax Alloy disc with Mahle Ebikemotion X35 Plus motor unit rear hub |
| Front Tyre | Vittoria Rubino IV 700x28mm, 60TPI, G2.0 Graphene, clincher |
| Rear Tyre | Vittoria Rubino IV 700x28mm, 60TPI, G2.0 Graphene, clincher |
| Saddle | Velomann 1285 URN, steel rails, 278x144mm (length x width) |
| Seatpost | Full Carbon Aero, special clamp type with alloy head, +/- 35mm adjustable set back, length - 300mm (size 47/50cm), 350mm (size 53/61cm) |
| Pedals | Available to be purchased separately |
| Range | Can handle up to 1200m of elevation gain (depending on rider weight, power level selected and riding conditions) |
| Charge time | 3.5 to 4 hours from flat |
| Motor | Mahle Ebikemotion X35 Plus, 250w, 40Nm |
| Ui/Remote | Mahle Ebikemotion iWoc One |
| Battery | Panasonic 36V 250w, concealed in the downtube |
| Charger | Integrated Mahle Ebikemotion charging point |
| Claimed Manufacturers Weight | 11.9kg, size 55 |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
