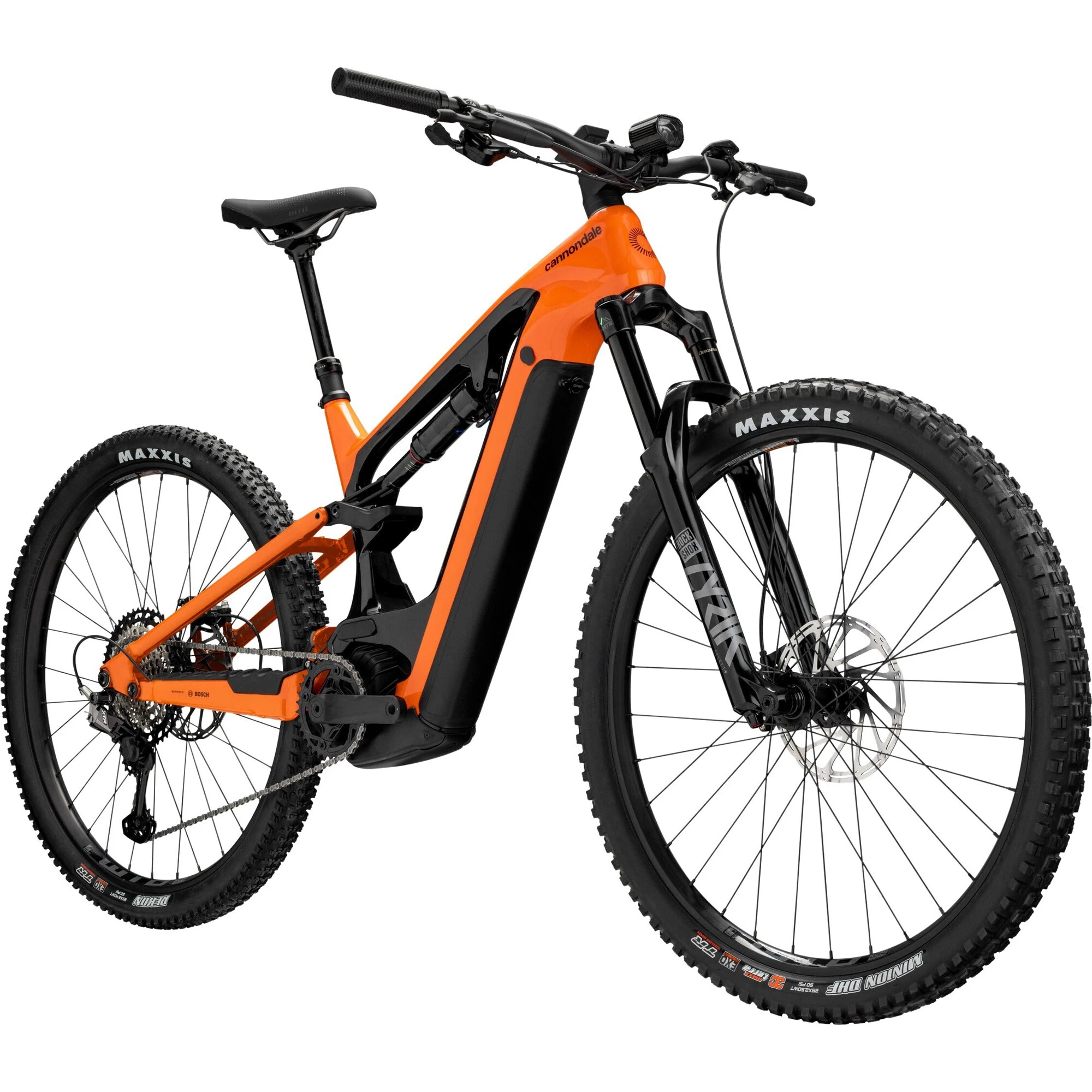

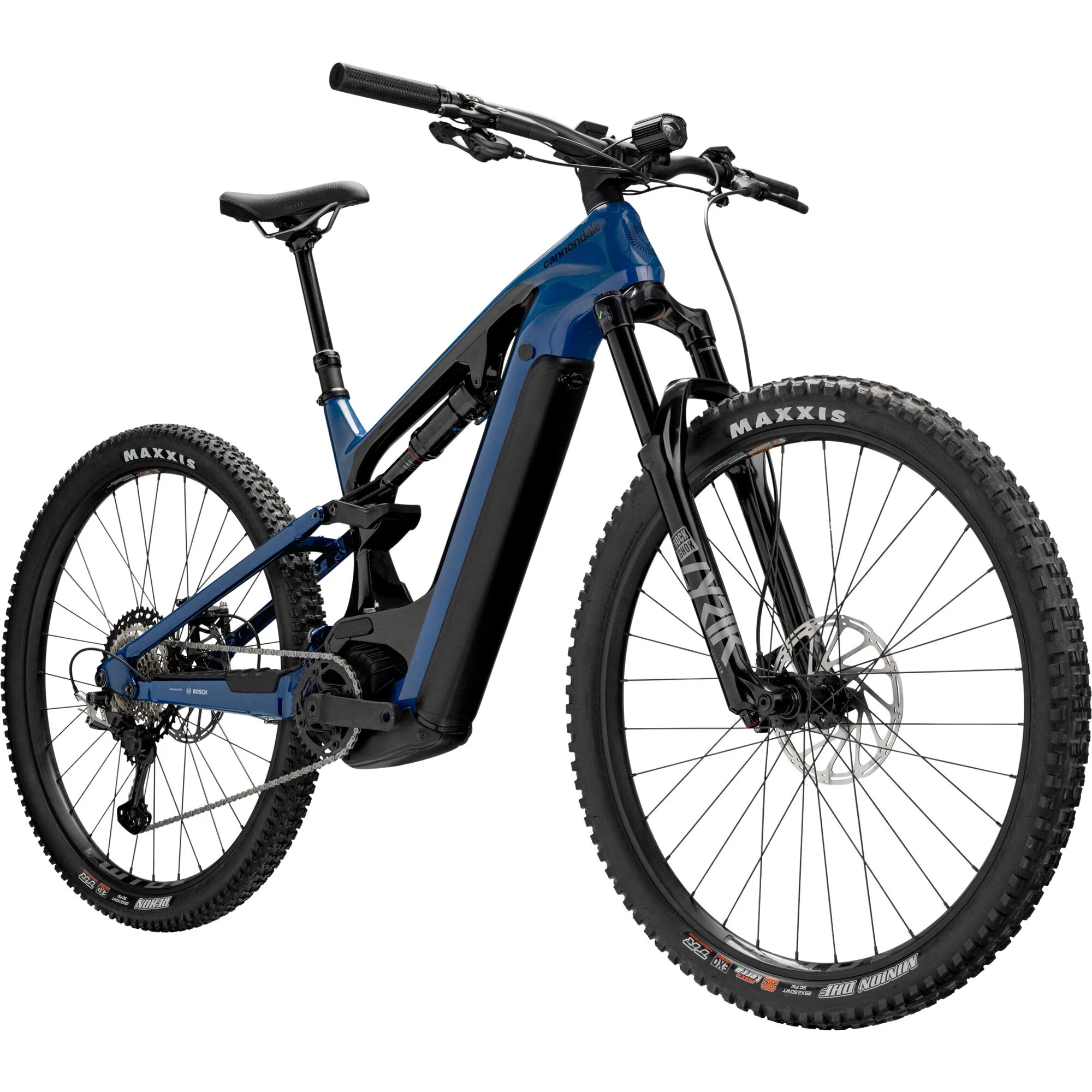

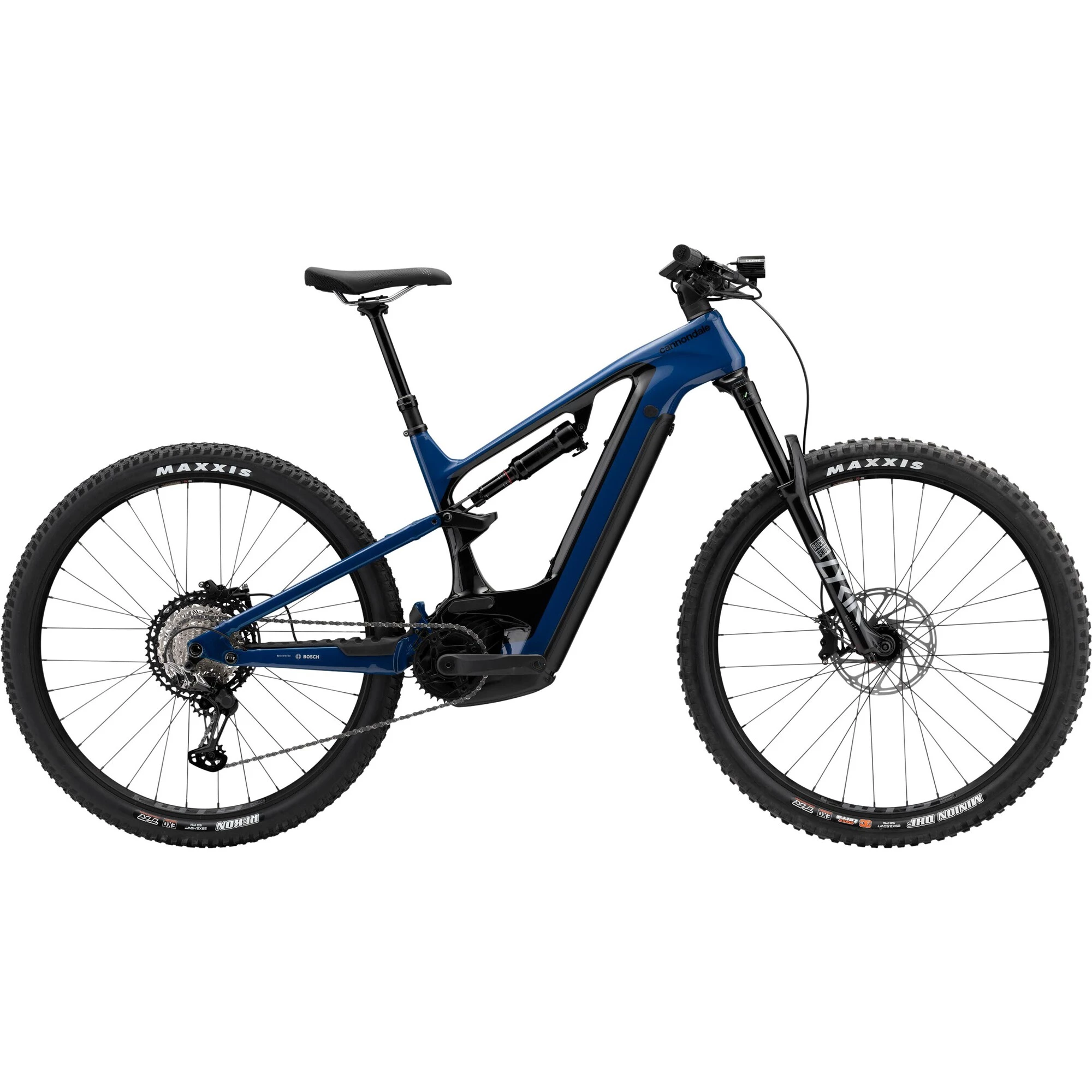

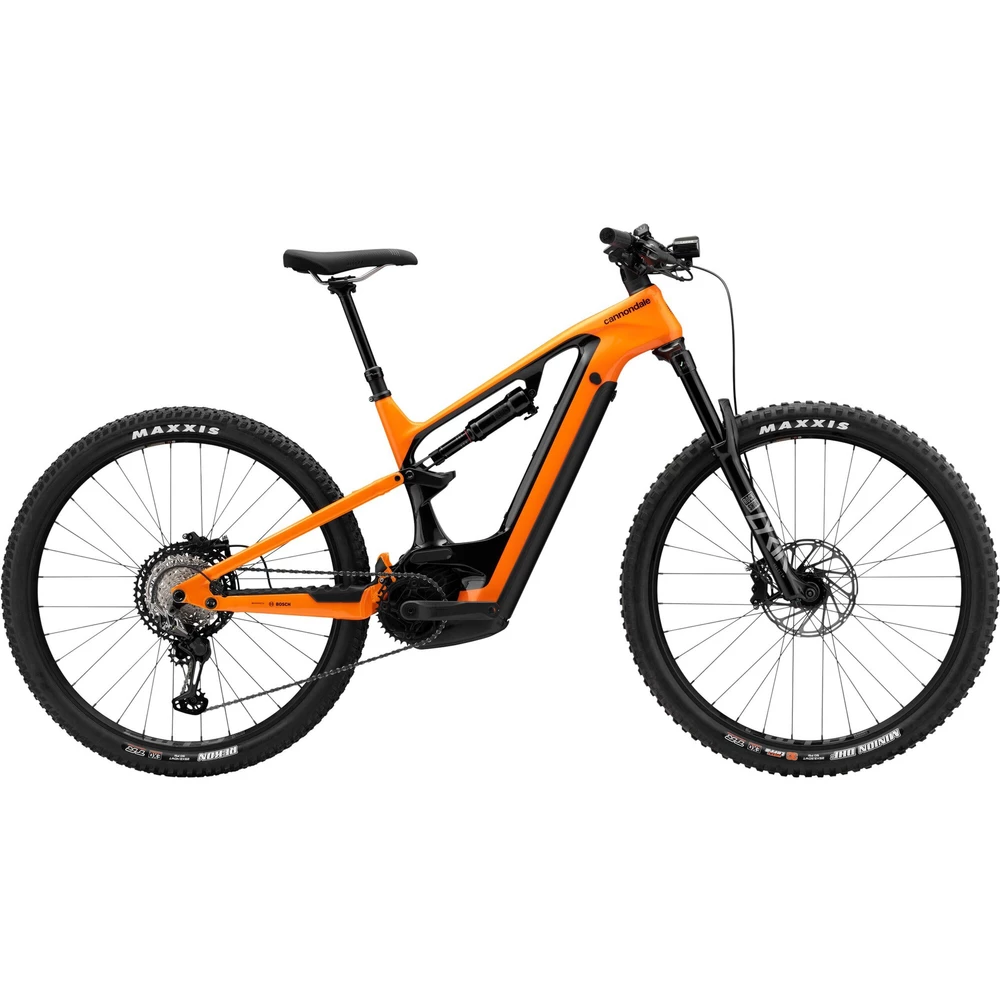

Cannondale Moterra Neo Carbon 1 Electric Mountain Bike 2023
Balanced, composed and capable, the Cannondale Moterra Neo Carbon 1 Electric Mountain Bike is a 150mm ripper designed to cater for fast-paced trail riders surfing technical terrain. Power and range combine to deliver an on-trail experience like no other, with this model cherry-picking the finest motor components from industry heavy-hitters Bosch. A 750Wh battery ensures an extensive range, while the Performance Line CX motor amps up the torque to 85Nm to crush hills and surge along undulating terrain.
This bike has an electric assisted speed limit of 15.5 mph / 25 km/h.

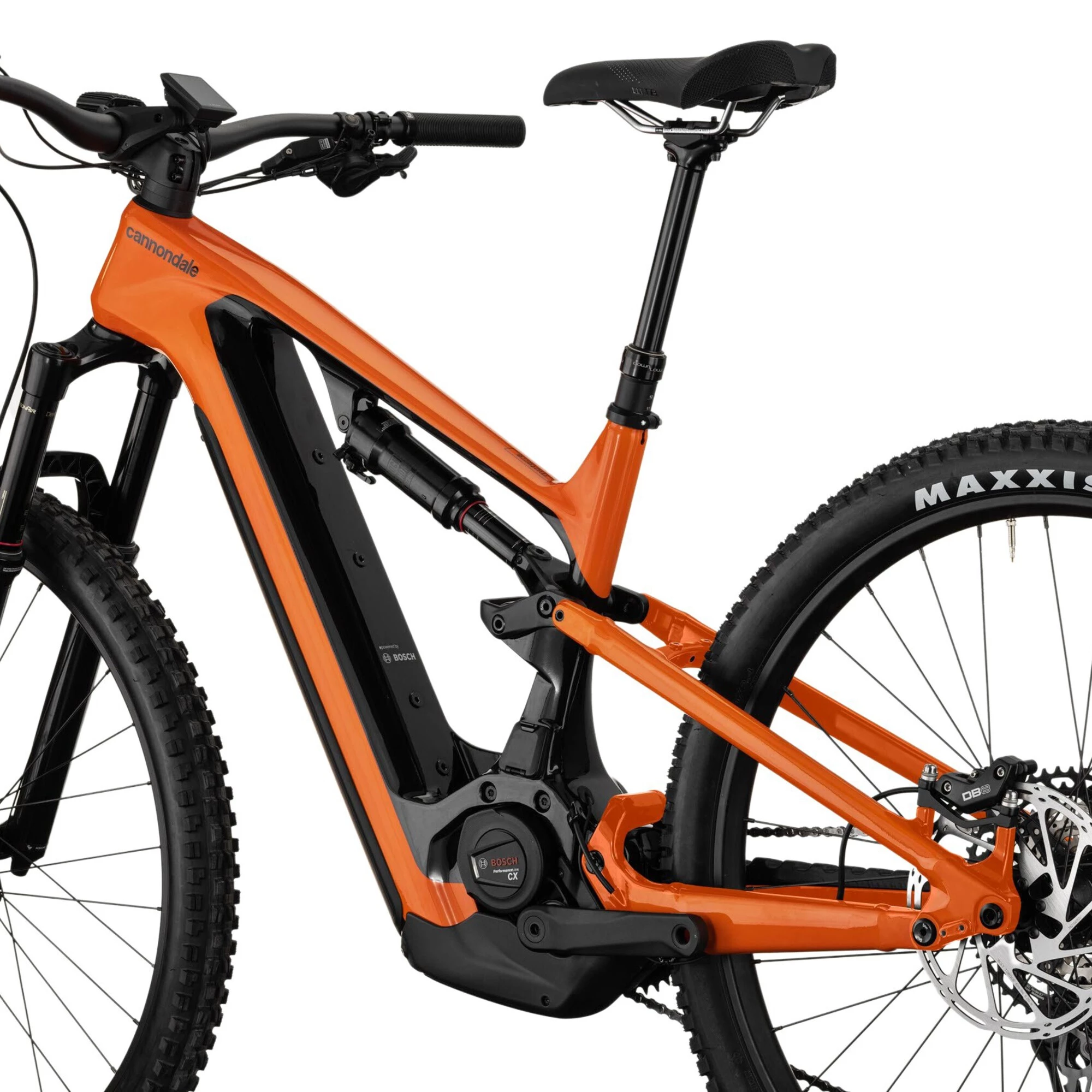

The all-new carbon frame receives a unique lay-up for each frame size, ensuring the same quality ride-feel across the board. Lightweight and durable, the carbon is sophisticated and prioritises longevity, and the Proportional Response kinematics means every rider receives the same supple suspension performance. A RockShox Lyrik Select fork and Deluxe Select+ shock combination improve traction, swallowing even larger impacts to keep you stable, and the Shimano XT/XTR drivetrain delivers crisp shifts across the wide 12-speed range.
Browse our range of Cannondale electric mountain bikes today.
Highlights
- 150mm of front and rear suspension inspires confidence and ensures capability on technical terrain
- Lightweight and durable carbon front triangle construction, aluminium rear end

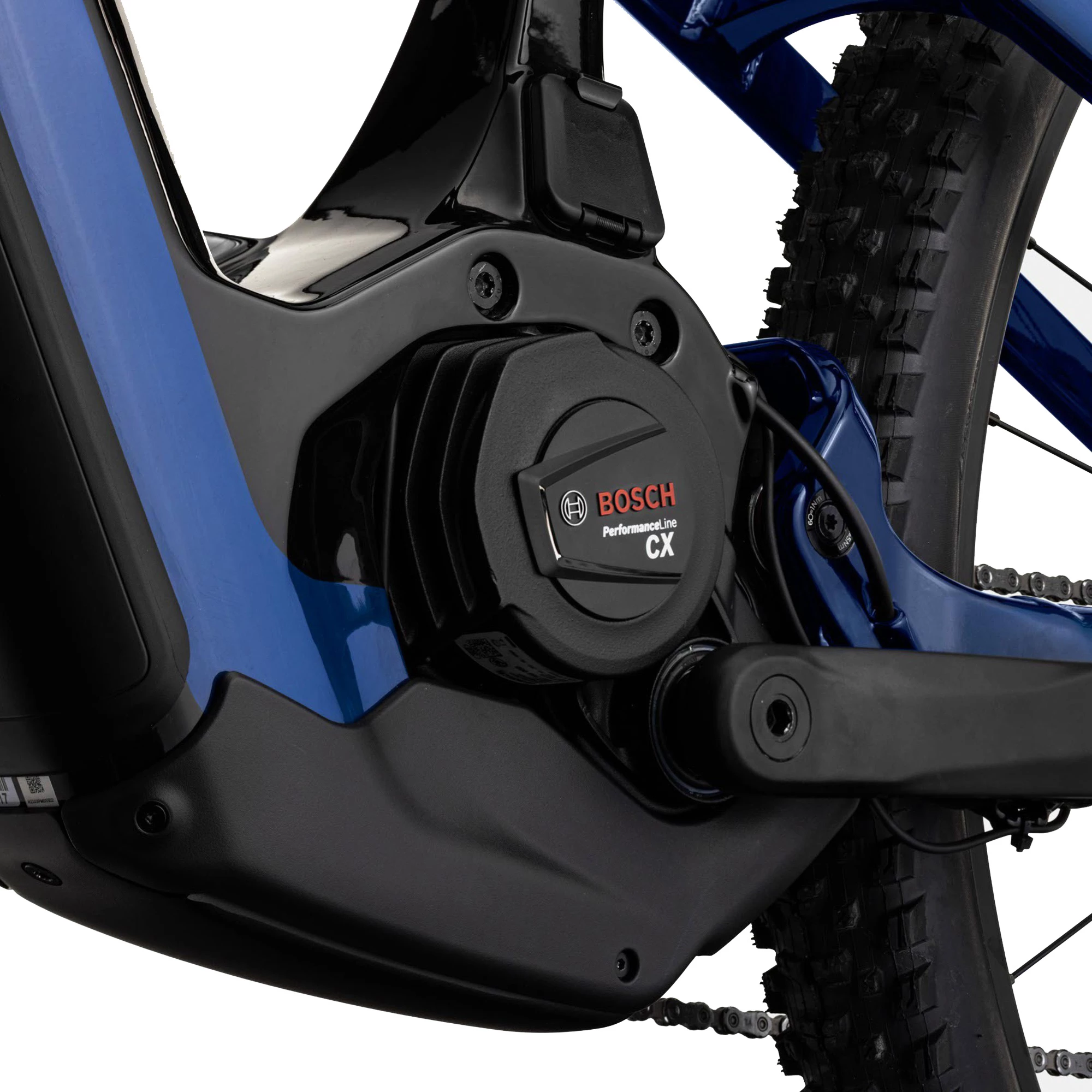

- The Bosch Performance CX is the benchmark in electric bike performance, offering 85Nm of torque in a small, compact package
- Proportional Response size-specific design sees each size receive unique geometry, suspension kinematics and frame construction
- 29” wheels offer fast-rolling performance, size S features a mixed-wheel setup to enhance manoeuvrability
- Rack, mudguard and kickstand capability, as well as room for a water bottle are found across the size range
- The 750Wh battery size provides an extensive range for more laps on the hill
- RockShox Lyrik Select and Deluxe Select+ shock iron deliver glue-like traction and isolate the rider from heavy impacts
- Four-piston hydraulic brakes boost braking power for confidence on steep descents

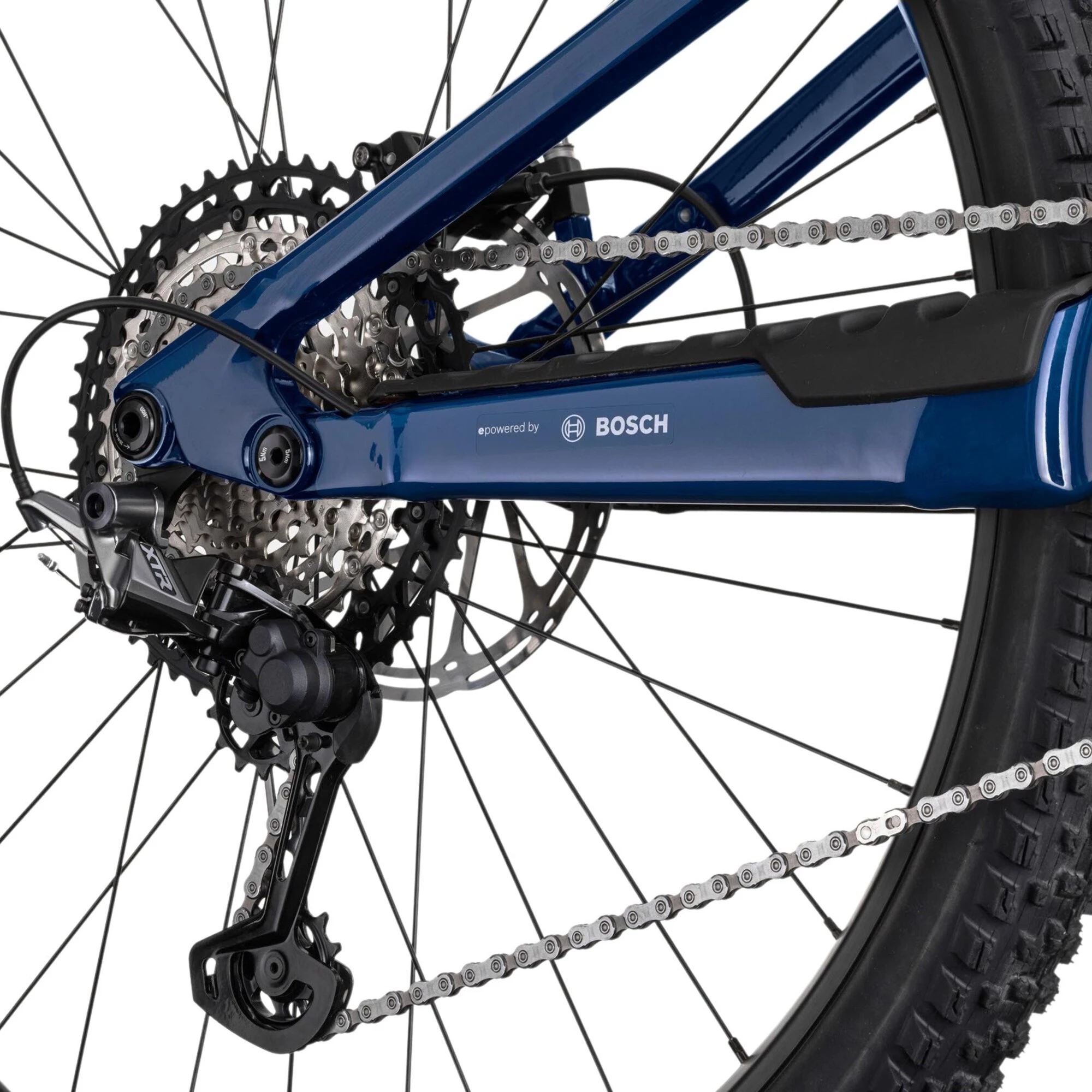

- Shimano XT/XTR 12-speed drivetrain
Battery Specifications
- Maximum Assist: 250w / 85Nm torque
- Motor Weight: 2.9kg
- Battery Power: 750Wh
Technical Specification

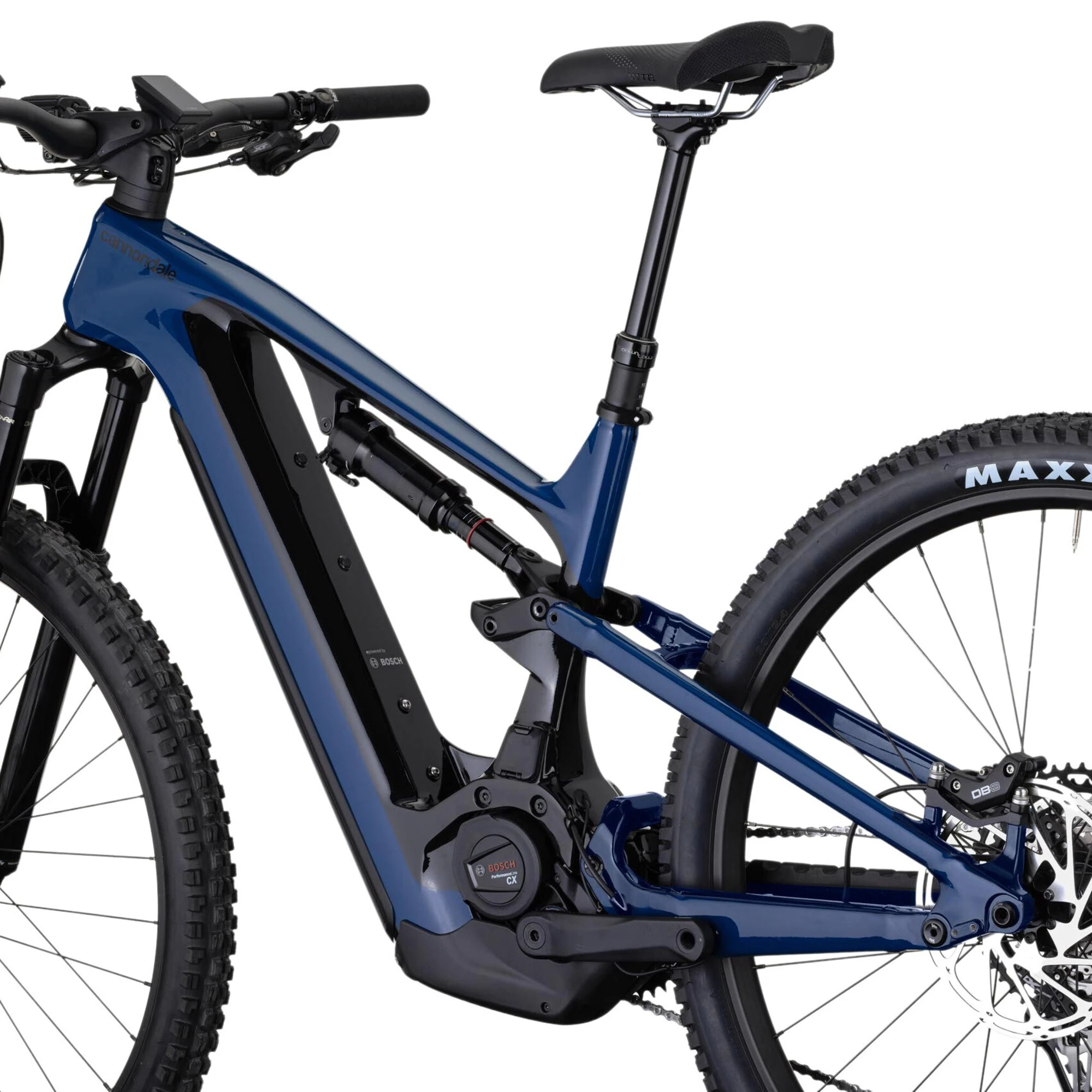

| Frame | Cannondale Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset |

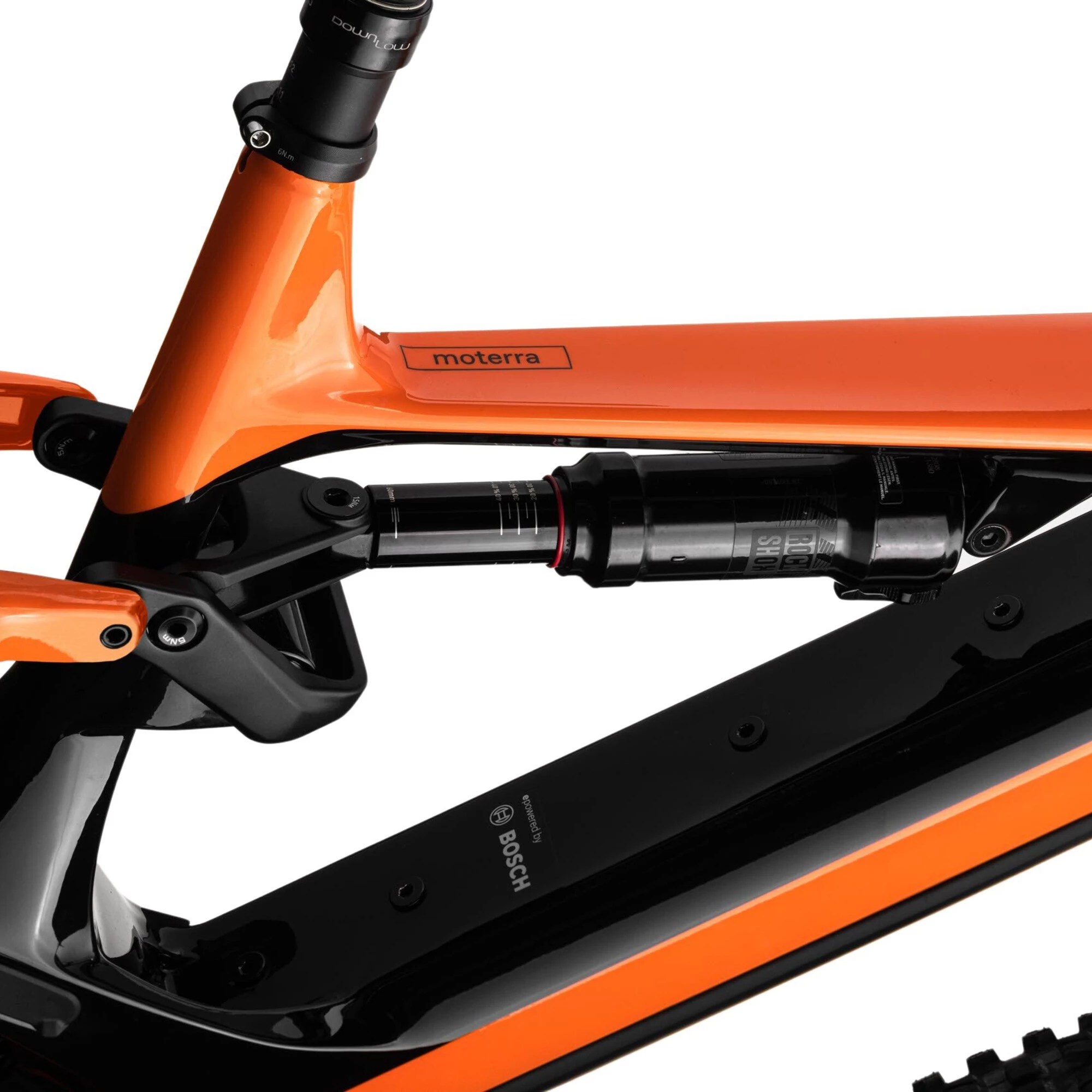

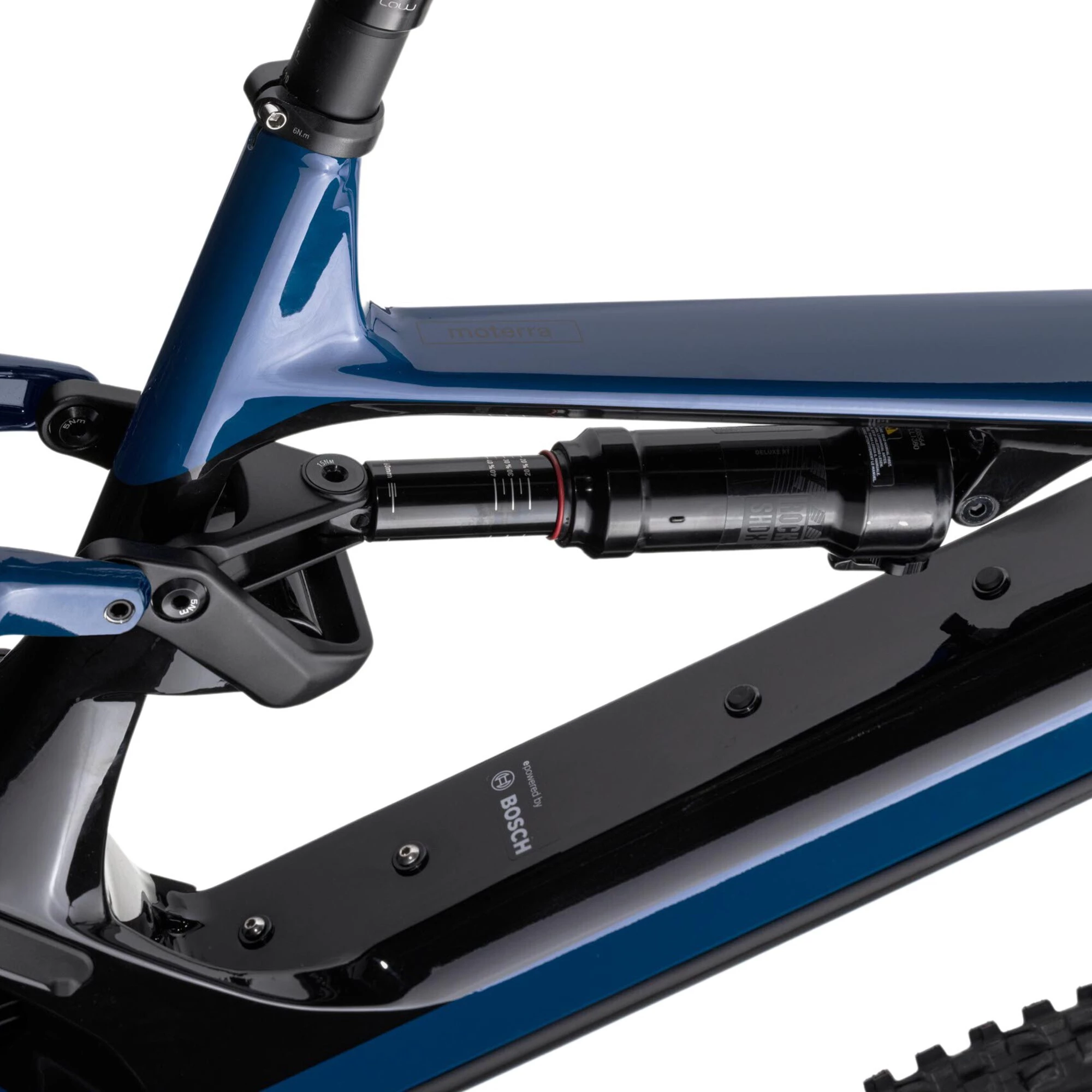

| Rear Shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Handlebar | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Front Brake | Shimano XT 8120 4-piston hydraulic disc, 203mm RT76 rotor |
| Rear Brake | Shimano XT 8120 4-piston hydraulic disc, 203mm RT76 rotor |
| Brake Levers | Shimano XT, hydraulic disc |

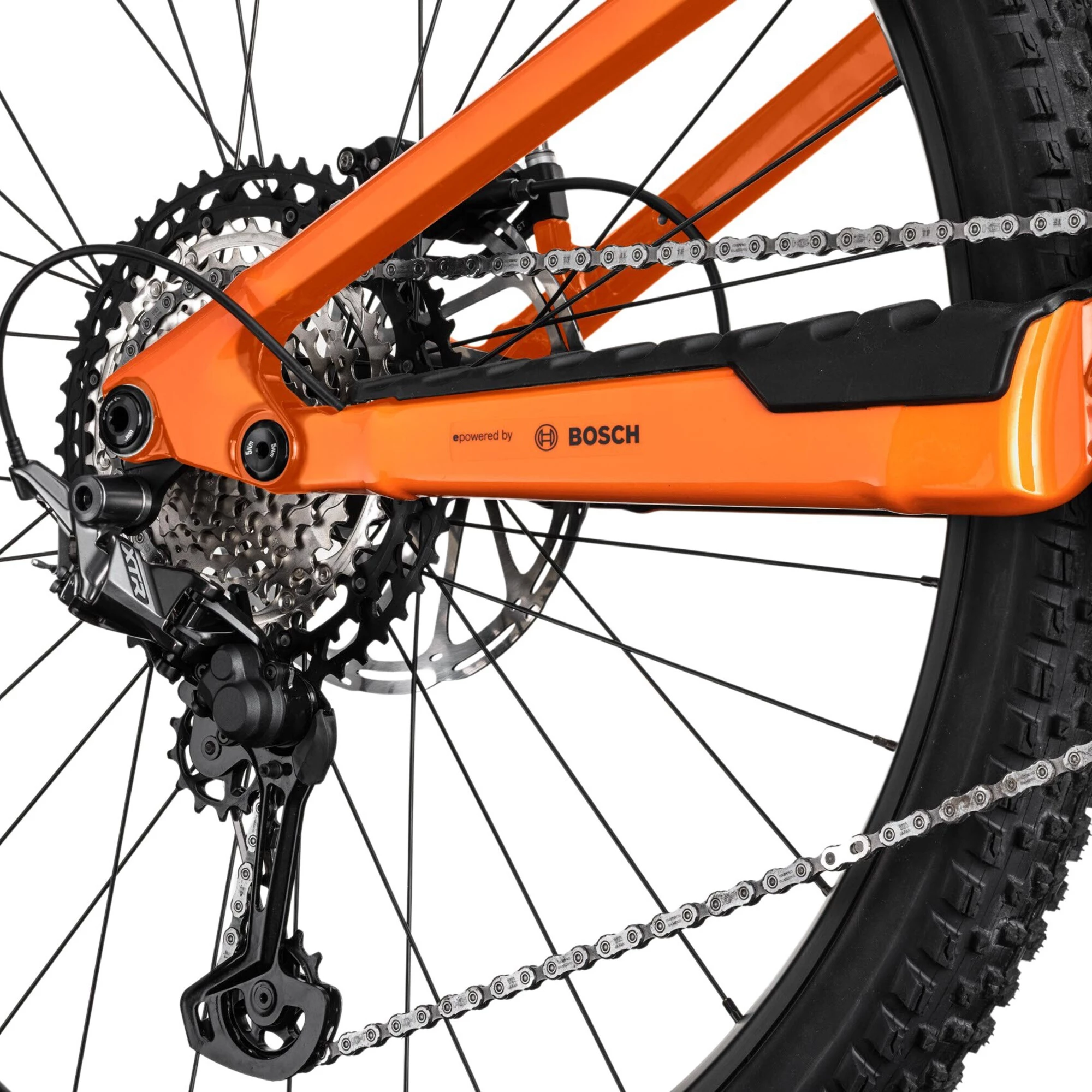

| Rear Derailleur | Shimano XTR, 12-speed |
| Shift Levers | Shimano XT, 12-speed |
| Chain | Shimano XT, 12-speed |
| Cassette | Shimano XT, 10-51, 12-speed |
| Crankset | FSA Bosch E-bike, 55mm chainline, 160mm, 34t |
| Front Wheel | Rim - KOM Trail i30 TCS, 32h, tubeless-ready / Hub - Formula 15x110mm thru-axle / Spokes - DT Swiss Champion |
| Rear Wheel | Rim - KOM Trail i30 TCS, 32h, tubeless-ready / Hub - Shimano MT410, 12x148mm thru-axle / Spokes - DT Swiss Champion |
| Front Tyre | Maxxis Minion DHF, 29 x 2.6", EXO, tubeless-ready |
| Rear Tyre | Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size small), EXO, tubeless-ready |
| Saddle | Fabric Scoop Shallow Elite, cro-mo rails |
| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
| Pedals | Available to be purchased separately |

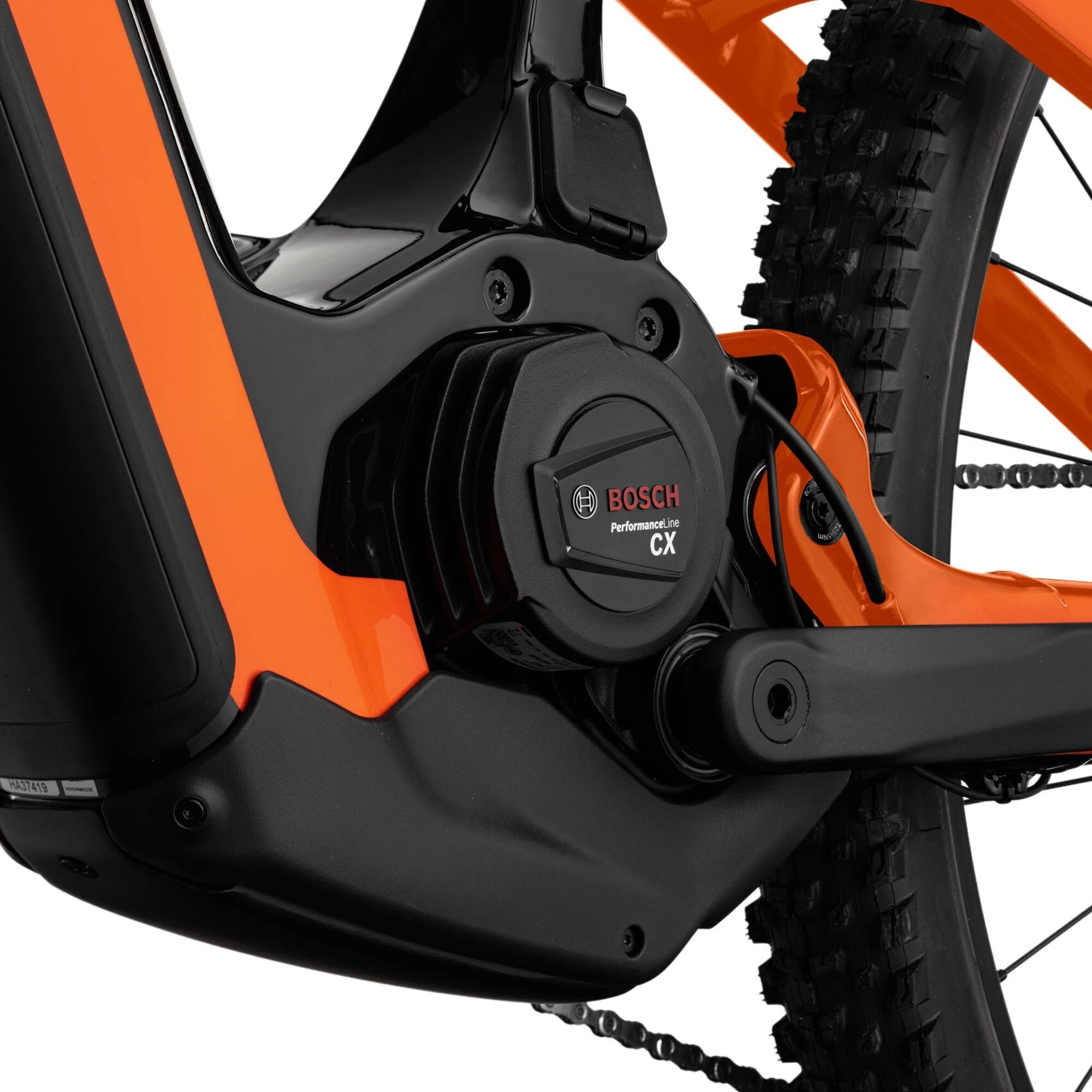

| Motor | Bosch Performance Line CX Smart System, 250W, 85Nm |

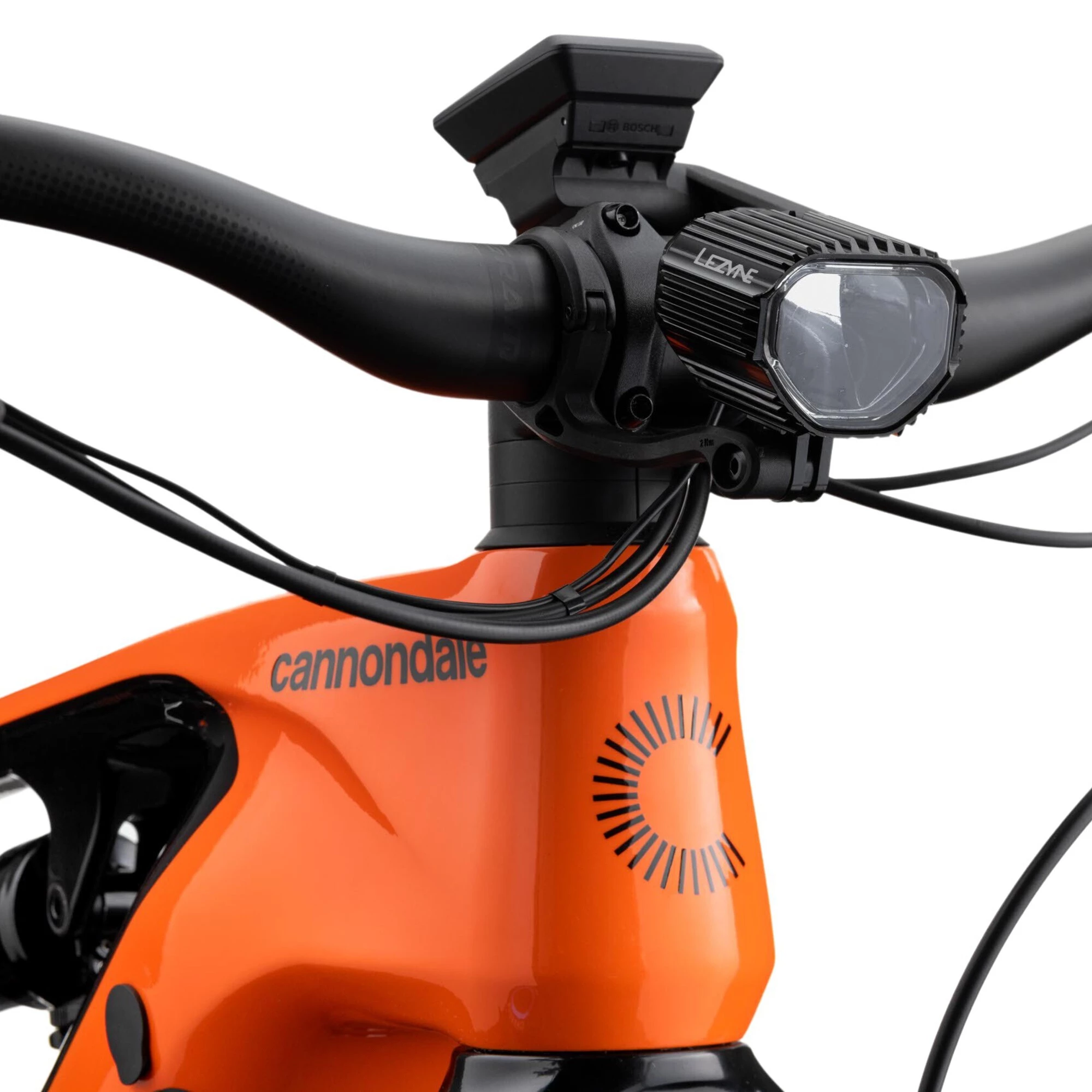

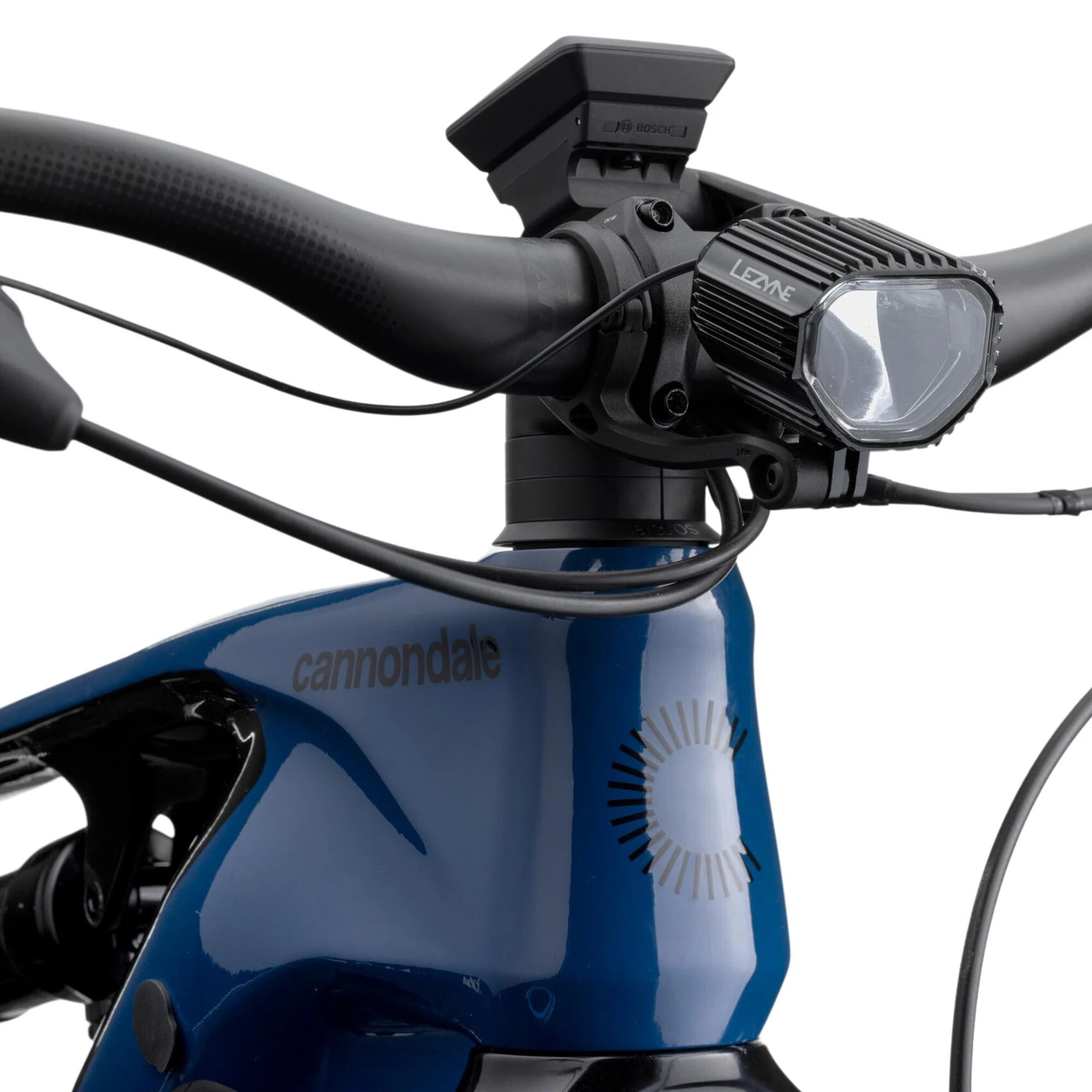

| Ui/Remote | Bosch Kiox 300 with LED Remote |
| Battery | Bosch PowerTube, 750Wh |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
