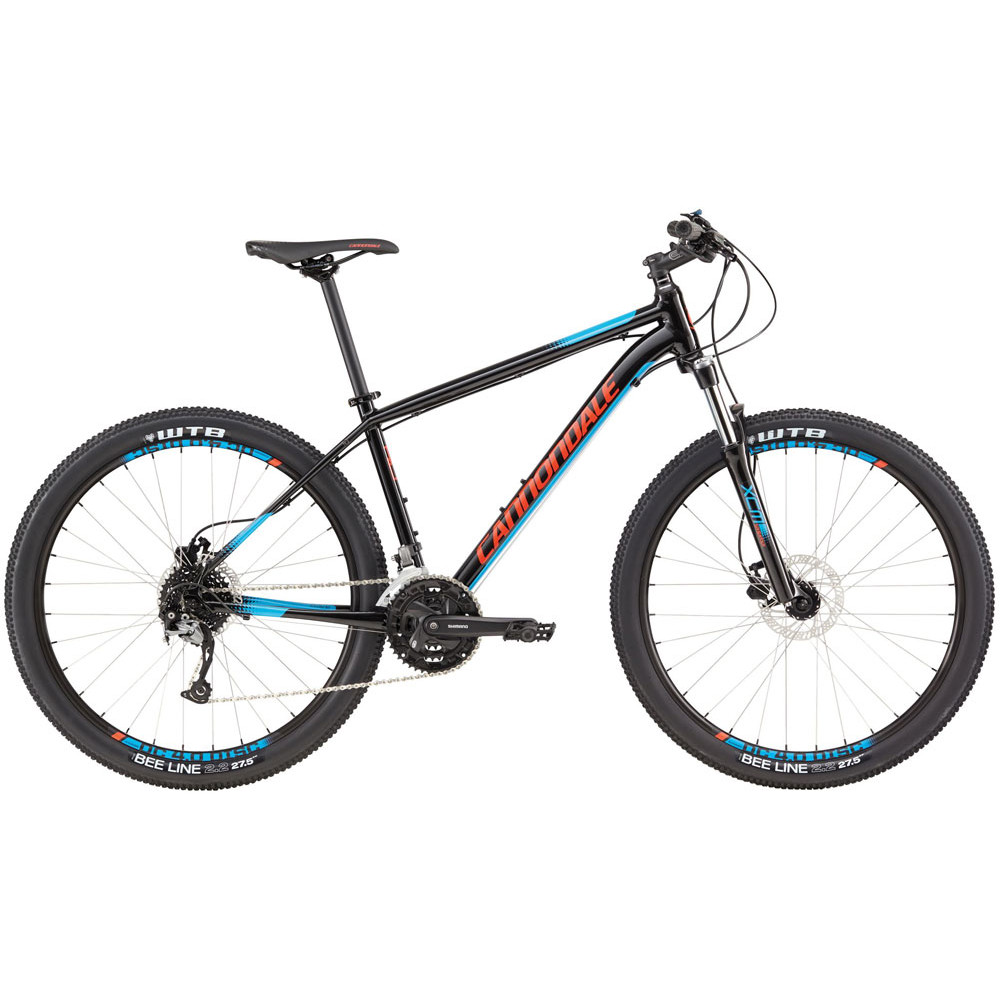

Cannondale Trail 5 27.5R Mountain Bike 2017
At this price point, the 2017 Cannondale Trail 5 27.5R Mountain Bike is tough to beat. A great choice for beginner riders or those looking for value and versatility, this bike utilises a SmartForm C2 Alloy frame for high durability and a low weight. Cannondale's Trail 27.5 geometry keeps you in a comfortable and stable upright position, so you can concentrate on the trail ahead.
Add to this the SR Suntour XCM-RL fork with remote lockout and 100mm of travel and you have a frameset that is as capable on the XC course as it is tackling technical north shore obstacles.
Alex DC 4.0 wheels combine with Shimano's M315 hydraulic disc brakes to maintain strong stopping power and a rapid rolling speed. WTB Nineline tyres keep you firmly anchored to the trail while also maintaining strong puncture protection.
Gearing is accounted for with Shimano's 9-speed groupset and with a triple crankset and 11-34 cassette. This wide range of gears means you will never be left wanting when it comes to powering up steep climbs or down technical descents.
FEATURES
- Cannondale's SmartForm C2 Alloy frame ensures the ideal blend of strength, stability, speed and comfort
- SR Suntour XCT-RL fork offers 100mm of travel remote lockout functionality
- Shimano's 9-speed shifting is reliable and responsive while the M315 hydraulic disc brakes inspire stopping confidence
Image shown for representation of colourway only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.
Technical Specification
| FRAME | Cannondale Trail SmartForm C2 Alloy SAVE 1-1/8” head tube |
| FORK | SR Suntour XCM-RL 100mm remote lockout 1-1/8 27.5 |
| HEADSET | FSA 1-1/8 Semi Integrated |
| STEM | Cannondale C4 6061 Alloy 31.8 7 deg. |
| HANDLEBAR | Cannondale C4 6061 alloy 20mm rise 680mm |
| FRONT BRAKE | Shimano M315 hydraulic disc 160/160mm |
| REAR BRAKE | Shimano M315 hydraulic disc 160/160mm |
| FRONT DERAILLEUR | Shimano Altus 31.8 clamp, 9-speed |
| REAR DERAILLEUR | Shimano Alivio 9-speed |
| SHIFT LEVERS | Shimano Altus 3x9-speed |
| CHAIN | Shimano HG53 9-speed |
| CRANKSET | Shimano M371 44/32/22 9-speed |
| CASSETTE | SunRace 11-34 9-speed |
| BOTTOM BRACKET | Tange LN 3912 square taper |
| PEDALS | None |
| RIMS | Alex DC 4.0 double wall 32-hole |
| HUBS | Alloy Disc sealed loose ball bearings QR 32h |
| FRONT TYRE | WTB NineLine 27.5x2.0, clincher |
| REAR TYRE | WTB NineLine 27.5x2.0, clincher |
| SADDLE | Cannondale Stage 3 |
| SEATPOST | Cannondale C3 6061 alloy 27.2x350mm |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
