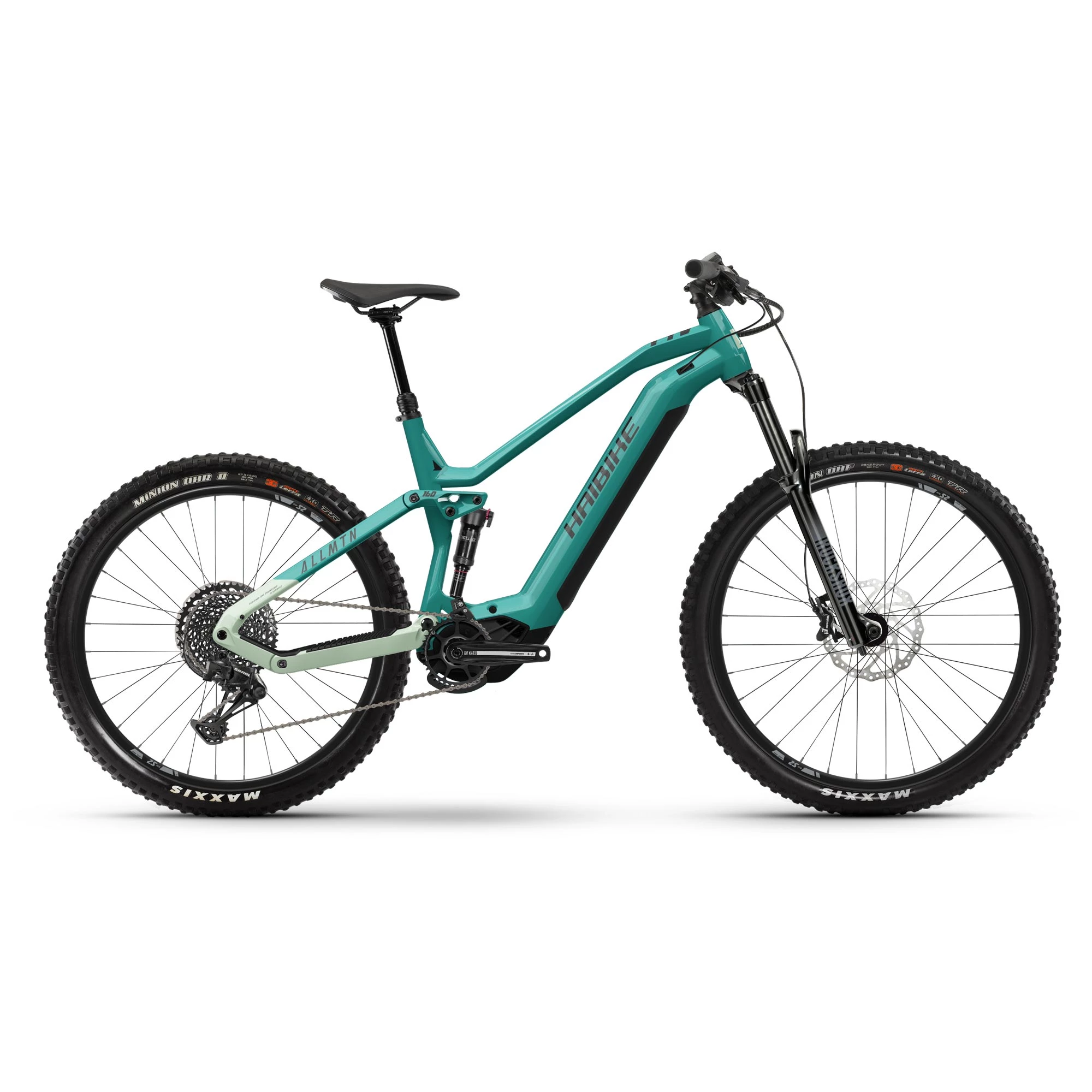

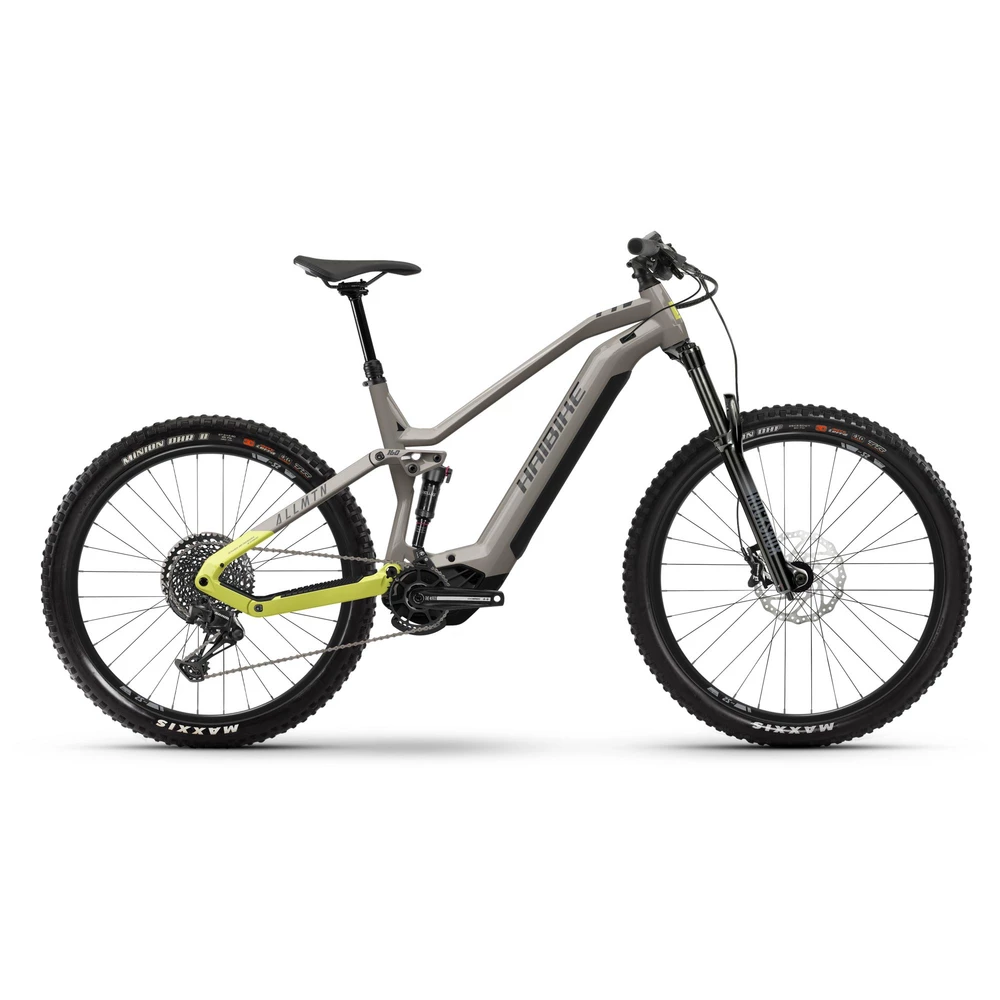

Haibike AllMtn 2 Electric Mountain Bike 2023
Featuring an all-new frame design and 160mm of front and rear travel, the Haibike AllMtn 2 Electric Mountain Bike is a force to be reckoned with on technical singletrack and challenging descents. Compact and lightweight, the Yamaha PW-X3 motor system weighs only 2.75kg, despite putting out 85Nm of hill-shredding torque. This bike has an electric-assisted speed limit of 15.5 mph / 25 km/h. Working in tandem with this is the mullet-style 29” front and 27.5” wheel setup, which provides an agile yet stable ride feel.
The system is powered by an InTube 630Wh battery, which provides an extensive range for all-day riding. The RockShox 35 Gold Suspension fork is stiff to boost precision and is supple through its 160mm of travel. A SRAM SX 12-speed drivetrain sees a wide range of gears for tackling all gradients, and four-piston TRP brakes deliver the stopping power to see complete control on the descents. Maxxis Minion tyres provide claw-like grip in loamy soils, and the WTB rims are highly durable to resist impact.
Browse our range of Haibike electric mountain bikes today.
Highlights
- Powerful Yamaha motor system with 250w of power and 85Nm of torque, 25km/h maximum assistance
- The lightweight 6061 aluminium frame features 160mm of bump-eating suspension travel
- 12-speed SRAM SX Eagle drivetrain features a wide 11-50t cassette
- Long-lasting 630Wh Yamaha InTube battery provides excellent range
- Yamaha Side Switch display features seven functions and a 1.7” screen
- 160mm RockShox 35 Gold suspension fork
- Powerful TRP Slate T4 four-piston hydraulic disc brakes offer epic control when descending
Battery Specifications
- Maximum Assist: 250w / 85Nm torque
- Motor Weight: 2.75kg
- Battery Power: 630Wh
Technical Specification
| Frame | Haibike, AllMtn PW-X3, aluminium |
| Fork | RockShox, 35 Gold, Air, 160mm, 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost |
| Rear Shock | RockShox Deluxe Select Plus, Air, Trunnion Mount |
| Stem | Haibike Components The Stem, alu, A-head, 31.8mm |
| Grips | Haibike, MTB grips |
| Handlebar | Haibike Components The Bar, 780mm |
| Front Brake | TRP Slate, hydraulic disc brake, four-piston, 180mm |
| Rear Brake | TRP Slate, hydraulic disc brake, four-piston, 180mm |
| Brake Levers | TRP Slate |
| Rear Derailleur | SRAM SX Eagle, 12-speed |
| Shifter | SRAM SX Eagle, 12-speed |
| Chain | SRAM SX Eagle |
| Cassette | SRAM Eagle PG1210, 11-50t |
| Crankset | Haibike, forged, aluminium |
| Front Wheel | Rim - WTB, ST i30 TCS / Hub - Haibike Components The Hub, 6-bolt standard |
| Rear Wheel | Rim -WTB, ST i30 TCS / Hub - Haibike Components The Hub, 12x148mm, 6-bolt standard |
| Front Tyre | Maxxis, Minion DHF II, 63-622, 29 x 2.5”, clincher |
| Rear Tyre | Maxxis, Minion DHR II, 63-622, 27.5 x 2.5”, clincher |
| Saddle | Selle Royal Vivo |
| Seatpost | Haibike Components Dropper-Post, aluminium, 34.9 mm |
| Pedals | Freeridepedal, aluminium |
| Motor | Yamaha PW-X3 System, 250w, 85Nm, 25 km/h |
| Battery | Yamaha InTube, 630Wh |
| Ui/Remote | Yamaha Side Switch, 1.7" LCD, seven functions |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
