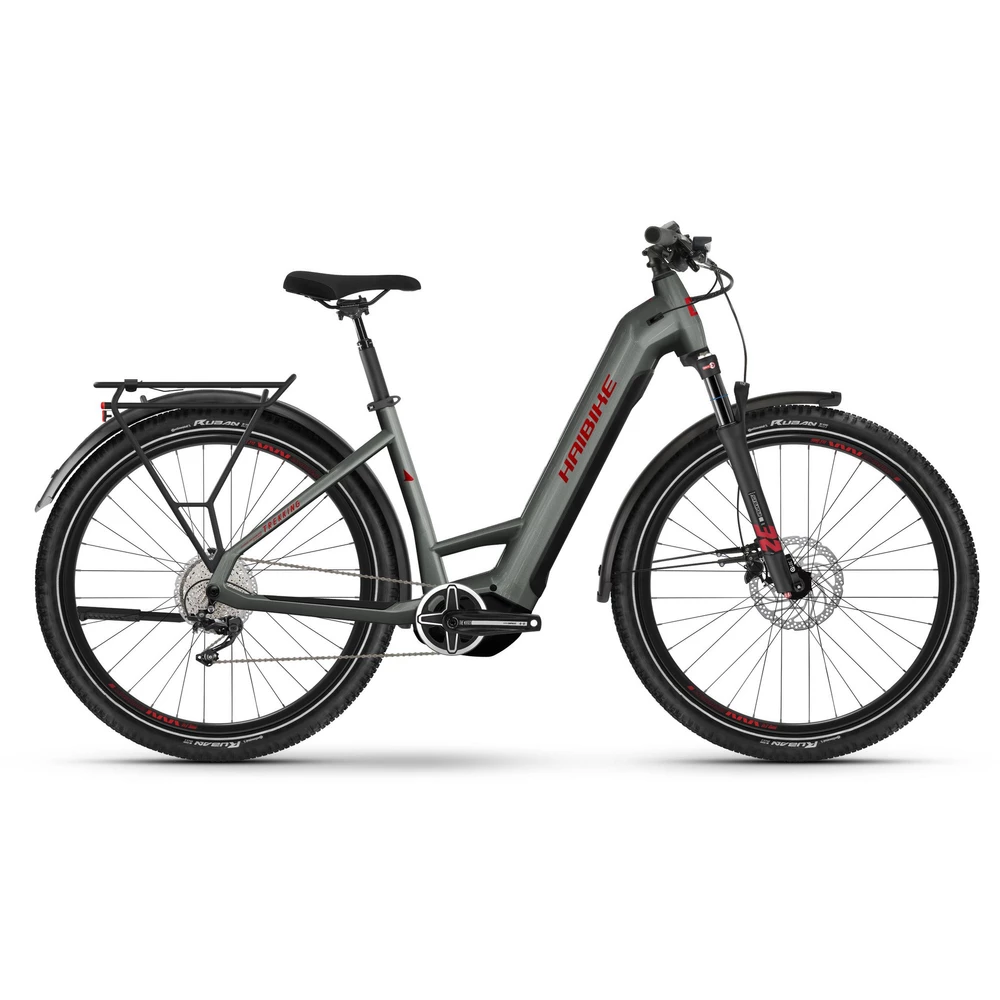

Haibike Trekking 5 Low Electric Hybrid Bike 2023
Featuring a powerful Yamaha motor system and a high-capacity battery, the Haibike Trekking 5 Low Electric Hybrid Bike delivers a fun, practical cycling experience for commuting, leisure and more. The 720Wh InTube battery creates enough range for assistance on long rides. 75Nm of torque is provided by the 250W Yamaha PW-S2 System motor, making light work of even the steepest hills, ensuring you arrive at your destination sweat-free, and it's light and small for sleek integration. This bike has an electric-assisted speed limit of 15.5 mph / 25kph.
Integrated lights add a degree of visibility in low light conditions, and included are mudguards, a kickstand and a luggage rack for your convenience. The Yamaha display is clear and easy to read and allows viewing of assistance levels, ride stats such as speed, and battery remaining. A high front-end provides a comfortable and upright ride experience, and for crisp shifting, a Shimano Deore 1x12-speed drivetrain features. Hydraulic disc brakes provide powerful braking, instilling confidence when descending on wet roads.
Browse our range of Haibike electric bikes today.
Highlights
- The aluminium frame is lightweight and durable
- SR Suntour, Mobie 25 LOR fork with 100mm travel takes the sting out of rough roads
- Yamaha PW-S2 motor system delivers 250w of power and 75Nm of torque
- Shimano Deore 1x12-speed drivetrain
- Shimano hydraulic disc brakes provide all-weather stopping power
- 27.5" wheels and Continental Ruban Reflex clincher tyres
- InTube 720Wh battery provides a good range
- Integrated lights powered by the main battery
- Pannier rack and mudguards are included, as well as a kickstand
Battery Specifications
- Maximum Assist: 250w / 75Nm torque
- Motor Weight: 2.85kg
- Battery Power: 720Wh
Technical Specification
Frame | Haibike Trekking, Aluminium 6061, low |
Fork | SR Suntour, Mobie 25 LOR, Lockout, steel spring, travel 100mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle |
Headset | Feimin, A-Head tapered, ball bearing |
Bottom Bracket | Integrated in the motor |
Stem | XLC, A-Head verstellbar, A-head, 31.8mm |
Handlebar | Ergoriser, oversize, 720mm |
Front Brake | Shimano MT410, hydraulic disc brake / Shimano RT30, 180mm rotor |
Rear Brake | Shimano MT410, hydraulic disc brake / Shimano RT30, 180mm rotor |
Brake Levers | Shimano MT402, aluminium |
Rear Derailleur | Shimano, Deore M5100 |
Shift Levers | Shimano, Deore M5100, Trigger switch |
Chain | Shimano, CN-M6100 |
Chain guide | Nylon, direct mount |
Cassette | Shimano, M5100, 11-51t |
Crankset | Miranda, Kies crank arm, 38t chainring |
Front Wheel | Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano, MT400, Center Lock / spokes - Sapim Leader, black |
Rear Wheel | Rim - Schürmann Yak25, with eyelets, hollow rim, aluminium / hub - Shimano, MT400, Center Lock / spokes - Sapim Leader, black |
Front Tyre | Continental Ruban Reflex, 27.5" x 2.3", clincher |
Rear Tyre | Continental, Ruban Reflex, 27.5" x 2.3", clincher |
Saddle | Selle Royal, Essenza |
Seatpost | Haibike Components, aluminium, patent, 34.9mm |
Pedals | VP, E461, aluminium, with reflector |
Motor | Yamaha PW-S2 System, 250W, 75Nm, 25km/h |
Ui/Remote | Yamaha, Side Switch, 1.7" LCD, 7 functions |
Battery | InTube 720Wh |
Accessories | Herrmans H-Black MR4, 40 lumen front light / Spanninga, Aerline 2 rear light /Systemgepäckträger MIK, 25kg carrier / Curana, Apollo 70, aluminium mudguards / Ursus Mooi rear stand |
Electric assisted speed limit | 15.5mph / 25kph |
Maximum system weight | 130kg (including bike, rider and cargo) |
Haibike Trekking 5 Low Electric Hybrid Bike 2023 Sizing
