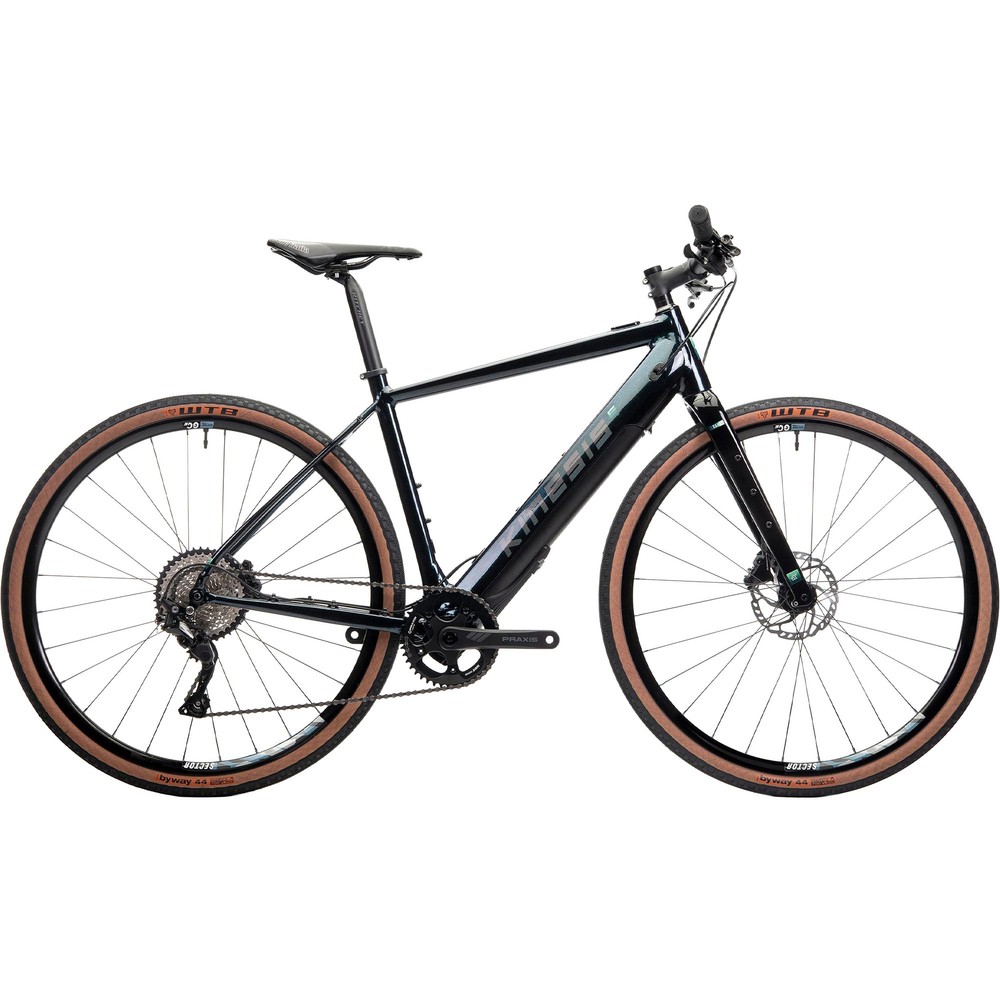

Kinesis Range Electric Hybrid Bike
Whether it's commuting or longer weekend rides, the Kinesis RANGE Electric Hybrid Bike will help make light work of the hills and make every journey more fun. The aluminium frame is light and strong, paired with a carbon fork, and uses the Fazua Evation Drive System for a boost of up to 400 watts from three different settings. It decouples at the legal 15.5mph limit and won't add any resistance that could hold you back above this speed.
You can fit tyres up to 50c wide and the bike is supplied with WTB Riddler 700x45c tyres fitted onto Sector e-bike specific wheels. The Shimano Deore components ensure that shifting is smooth and precise and you get the powerful all-condition performance of hydraulic discs. With mounts for both mudguards and rack, you'll be able to set this bike up for touring or longer days in the saddle, and stay dry and comfortable throughout.
Highlights
- Premium aluminium frame
- Full carbon RANGE fork with luggage mounting points
- Fazua Evation drive system with top tube remote/removable 252Wh battery
- SRAM Deore 1x10-speed drivetrain
- Shimano hydraulic brakes
- Kinesis Sector GCe E-Specific wheels
- WTB Riddler 45C tyres
- Rack and mudguard compatible
- Galactic Iridescent paint job
- Clearance for 50c tyres
The maximum total weight allowed (rider, clothing, protective gear, backpack, luggage etc.) is 120kg.
Technical Specification
| Frame | Kinesis RANGE, aluminium |
| Fork | Kinesis RANGE, carbon |
| Headset | FSA no.42 cartridge bearing |
| Stem | Ritchey 4-Axis |
| Handlebar | Ritchey MTN Rizer Trail |
| Grips | Ritchey MTN Comp |
| Front Brake | Shimano BR-300 hydraulic disc |
| Rear Brake | Shimano BR-300 hydraulic disc |
| Brake Levers | Shimano Deore |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore |
| Shift Levers | Shimano Deore 1x10-speed |
| Cassette | Shimano CS-HG500, 11-42t |
| Crankset | Praxis Alloy E-Crank, 42t ring |
| Front Wheel | Kinesis Sector GCe E-Specific |
| Rear Wheel | Kinesis Sector GCe E-Specific |
| Front Tyre | WTB Riddler 700x45c TCS, clincher |
| Rear Tyre | WTB Riddler 700x45c TCS, clincher |
| Saddle | Selle Italia X3 |
| Seatpost | Ritchey 2-Bolt / 350mm x 31.6mm diameter / 25mm offset |
| Pedals | Available to be purchased separately |
| Motor | Fazua Evation Drive System |
| Ui/Remote | Fazua integrated top tube remote / handlebar Remote FX |
| Battery | 252Wh, removable |
| Claimed Manufacturer Weight | 14.9kg (size medium) |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
