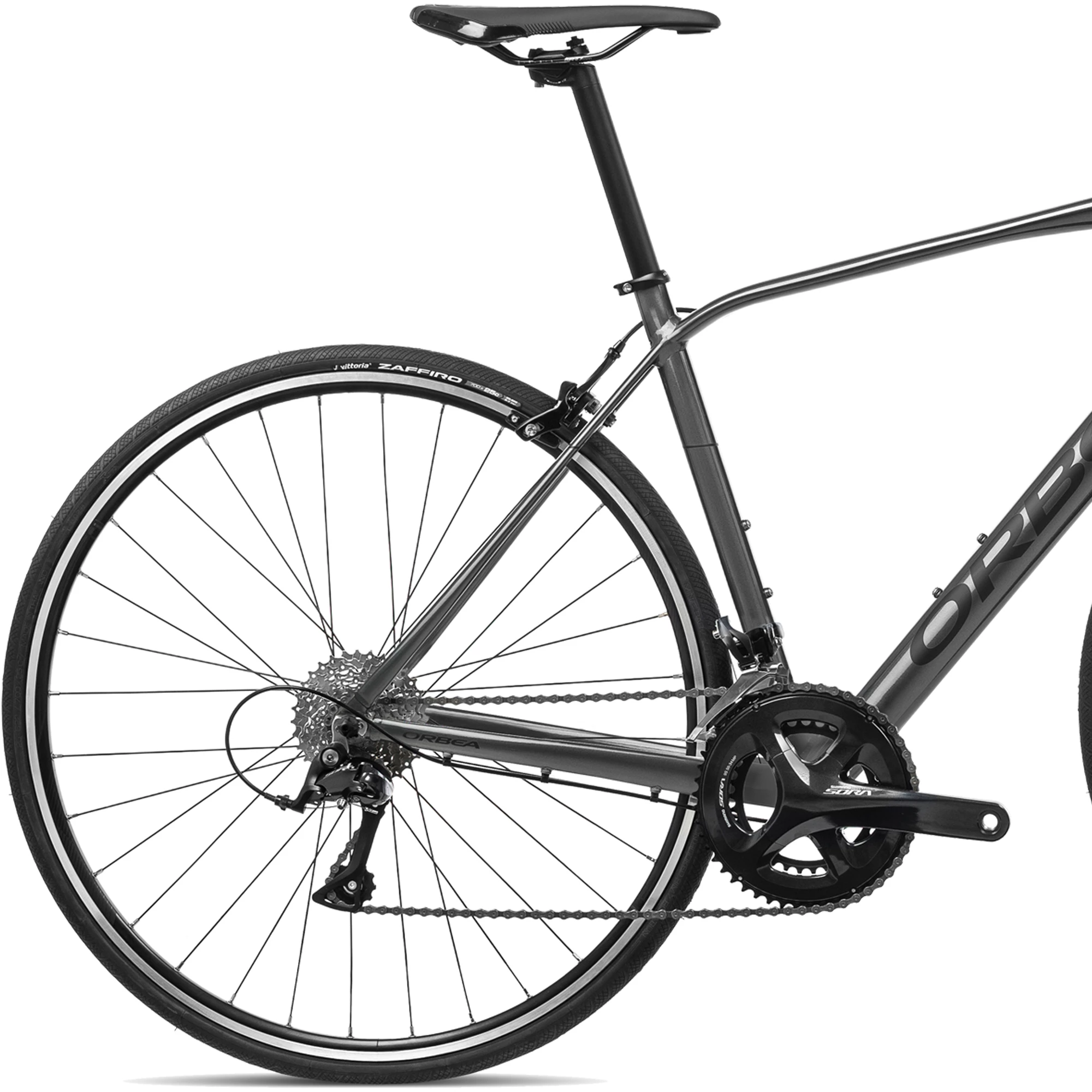

Orbea Avant H50 Road Bike 2021
Possessing a multifaceted character, an advanced frame construction and dependable components, the Orbea Avant H50 Road Bike is the ideal companion for the longest of rides whether they be in the mountains or across uncharted country roads.

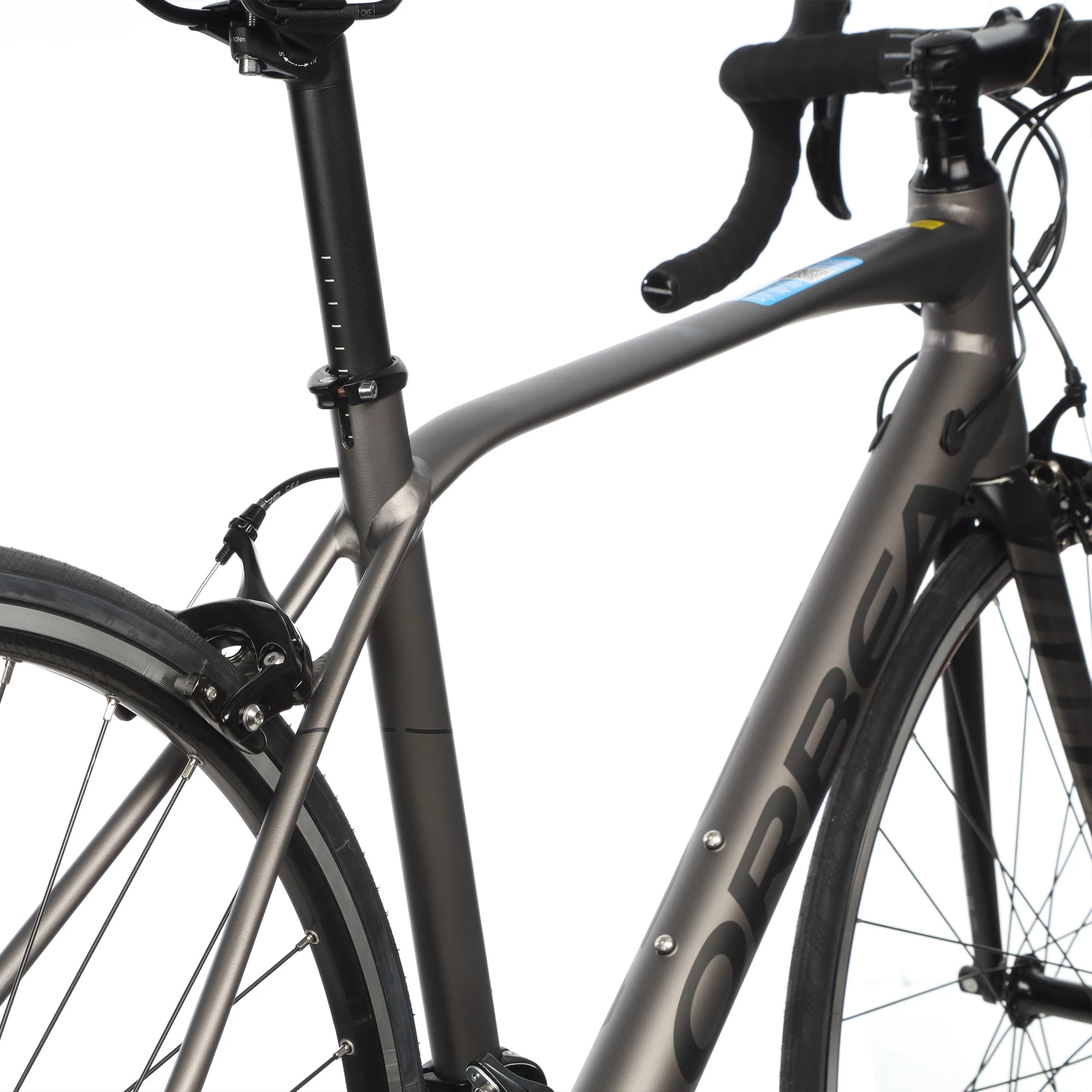

The high grade of aluminium that makes the frame has a hydroformed, variable thickness construction to raise its stiffness to weight ratio markedly. This frame introduces comfort to the rear of the bike via its kinked top tube design that shrinks the rear triangle to promote increased vertical compliance. In addition, the carbon fork legs smooth road surface irregularities to lower fatigue in the rider’s shoulders, neck and arms.
Hidden cable routing gives a truly clean and professional vibe while the endurance-inspired geometry positions the rider in a slightly more upright position to reduce tiredness in the back muscles during the biggest days in the saddle. Lightweight aluminium wheels are reactive but robust and are driven forwards by the reliable and accurate Shimano Sora gear configuration.
Highlights
- A super-durable, versatile and enlivening road bike that is great for endurance riding across a variety of road surfaces
- Hydroformed aluminium frame with smooth welds boasts variable thickness tubing to increase lateral stiffness but keep the weight low
- Innovative kinked top tube design creates a smaller rear frame triangle for increased compliance and comfort
- The carbon fork with alloy steerer is torsionally stiff, strong and reduces road vibrations
- Hidden cable routing through the frame grants a crisp aesthetic
- Endurance inspired geometry reduces the reach and increases the stack for a more upright and comfortable riding position
- Orbea R1800 wheels have an alloy rim, are light and strong
- Shimano Sora 9-speed gears are precise and reliable
Technical Specification
| Frame | Orbea Avant Hydro disc, hydroformed triple butted aluminium, 1-1/8" headset, BB 68mm – BSC English bottom bracket standard, 130 OLD, 27.2mm seatpost diameter |
| Fork | Orbea Avant carbon fork, 1-1/8” aluminium steerer |
| Headset | Orbea 1-1/8" Semi-Integrated Aluminium Cup |
| Stem | Orbea OC1 31.8mm interface, 7-degree (Length - 90mm (Size 47) / 100mm (Sizes 49, 51, 53) / 110mm (Sizes 55, 57) / 120mm (Size 60)) |
| Handlebar | Orbea OC1 Road, reach 80mm, drop 125mm (Width (C-C) - 380mm (Size 47) / 400mm (Size 49) / 420mm (Sizes 53, 55, 57) / 440mm (Sizes 57, 60)) |
| Front Brake | Orbea OC-II, caliper |
| Rear Brake | Orbea OC-II, caliper |
| Brake Levers | Shimano Sora |
| Front Derailleur | Shimano Sora 3000 |
| Rear Derailleur | Shimano Sora 3000GS, 9-speed |
| Shift Levers | Shimano Sora, 9-speed |
| Chain | Shimano HG53, 9-Speed |
| Cassette | Shimano HG53, 9-Speed |

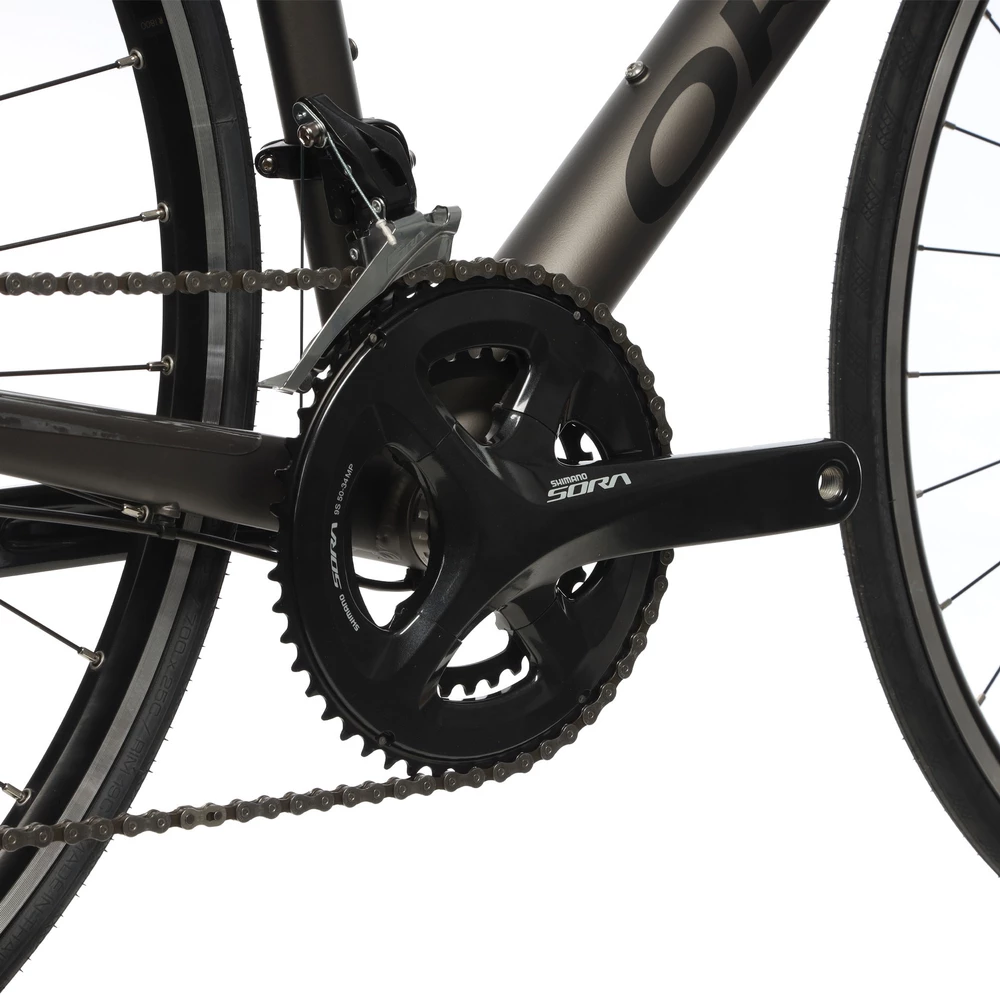

| Crankset | Shimano Sora R3000, 34x50 teeth chainrings (Length - 170mm (Sizes 47, 49, 51, 53) / 172.5mm (Sizes 55, 57) / 175mm (Size 60)) |
| Front Wheel | Orbea R1800 |
| Rear Wheel | Orbea R1800 |
| Front Tyre | Vittoria Zafiro V, 700x25c, clincher |
| Rear Tyre | Vittoria Zafiro V, 700x25c, clincher |
| Saddle | Selle Royal Seta RS |
| Seatpost | Orbea Alloy 27.2mm diameter, 20mm offset |
| Pedals | Available to be purchased separately |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
