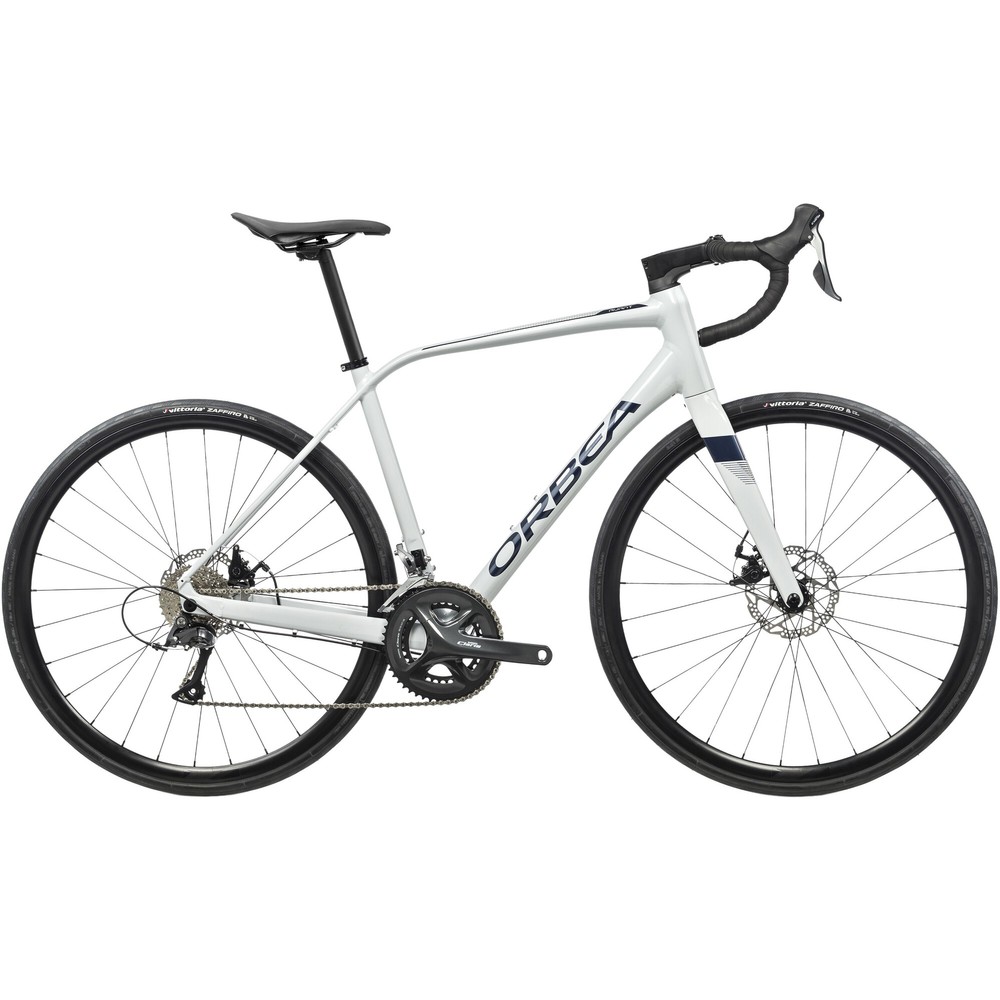

Orbea Avant H60-D Disc Road Bike 2022

£999.00
RRP £1,349.00 Save 26%

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1463453

Orbea Avant H60-D Disc Road Bike 2022

With its low price and comfort-forward performance, the Orbea Avant H60-D Disc Road Bike is the perfect ride for any road cyclist looking to take their first serious steps into the sport. Light and efficient, the aluminium frame is triple-butted to reduce weight without compromising strength and features endurance geometry to encourage a comfortable and upright ride position. The carbon fork has wide tyre clearance and damps vibration, reducing the amount of feedback transmitted to the rider to limit fatigue on long rides.

The Vittoria tyres feature a 28c width to enhance their grip on slick road surfaces, and a Fizik Aliante R5 will offer a comfortable seating position for most riders. The Shimano Claris drivetrain sees a lot of trickle-down technology found on the brand’s more premium offerings and delivers reliable shifting across the 11-32t cassette. An Orbea cockpit is lightweight and stiff to prevent flex, and Tektro mechanical disc brakes offer enhanced braking power over traditional rim brake designs.

Highlights

  • A super-durable, versatile and enlivening road bike that is great for endurance riding across a variety of road surfaces
  • Hydroformed aluminium frame with smooth welds boasts variable thickness tubing to increase lateral stiffness but keep the weight low
  • Innovative kinked top tube design creates a smaller rear frame triangle for increased compliance and comfort
  • The carbon fork with alloy steerer is torsionally stiff, strong and reduces road vibrations
  • Hidden cable routing through the stem and frame grants a crisp aesthetic
  • 35mm tyre clearance permits the use of plusher, grippier, and faster-rolling rubber
  • Endurance inspired geometry reduces the reach and increases the stack for a more upright and comfortable riding position
  • Orbea Corsa wheels have an alloy rim, are light and strong
  • Shimano Claris drivetrain is reliable to keep you on the road and out of the workshop
  • Mechanical disc brakes provide powerful braking performance

Technical Specification

Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, 1,5" ICR headset, BB 68mm – BSC English bottom bracket standard, 12x142mm rear thru-axle with M12x2 P1 thread, internal cable routing, 27.2mm seatpost diameter, MMS system
Fork Orbea Avant carbon fork, 1-1/8” aluminium steerer
Headset Acros alloy 1-1/2" internal cable routing
Stem Orbea RP21 Road Performance, 31.8mm, 6°, IFC01 Computer mount interface
Handlebar Orbea OC RP30-R Road Performance Riser, 70mm reach, 125mm drop, 15mm rise
Front Brake Tektro MD-C550, mechanical disc
Rear Brake Tektro MD-C550, mechanical disc
Brake Levers Shimano Claris ST-R2000
Front Derailleur Shimano Claris FD-R2000
Rear Derailleur Shimano Claris RD-R2000-GS, 8-speed
Shift Levers Shimano Claris ST-R2000, 8-speed
Chain KMC X8
Cassette Shimano HG50, 11-32t, 8-speed
Crankset Shimano Claris R2000, 34x50t
Front Wheel Orbea Corsa, 12mm E-Thru Shimano, RS470 28H with Orbea thru-axle 12x100mm M12x2 P1
Rear Wheel Orbea Corsa, 12mm E-Thru Shimano, RS470 28H with Orbea thru-axle 12x142mm M12x2 P1
Front Tyre Vittoria Zaffiro V Rigid bead 700x28c, clincher
Rear Tyre Vittoria Zaffiro V Rigid bead 700x28c, clincher
Saddle Fizik Aliante R5
Seatpost Orbea Alloy 27.2mm diameter, 20mm offset
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
