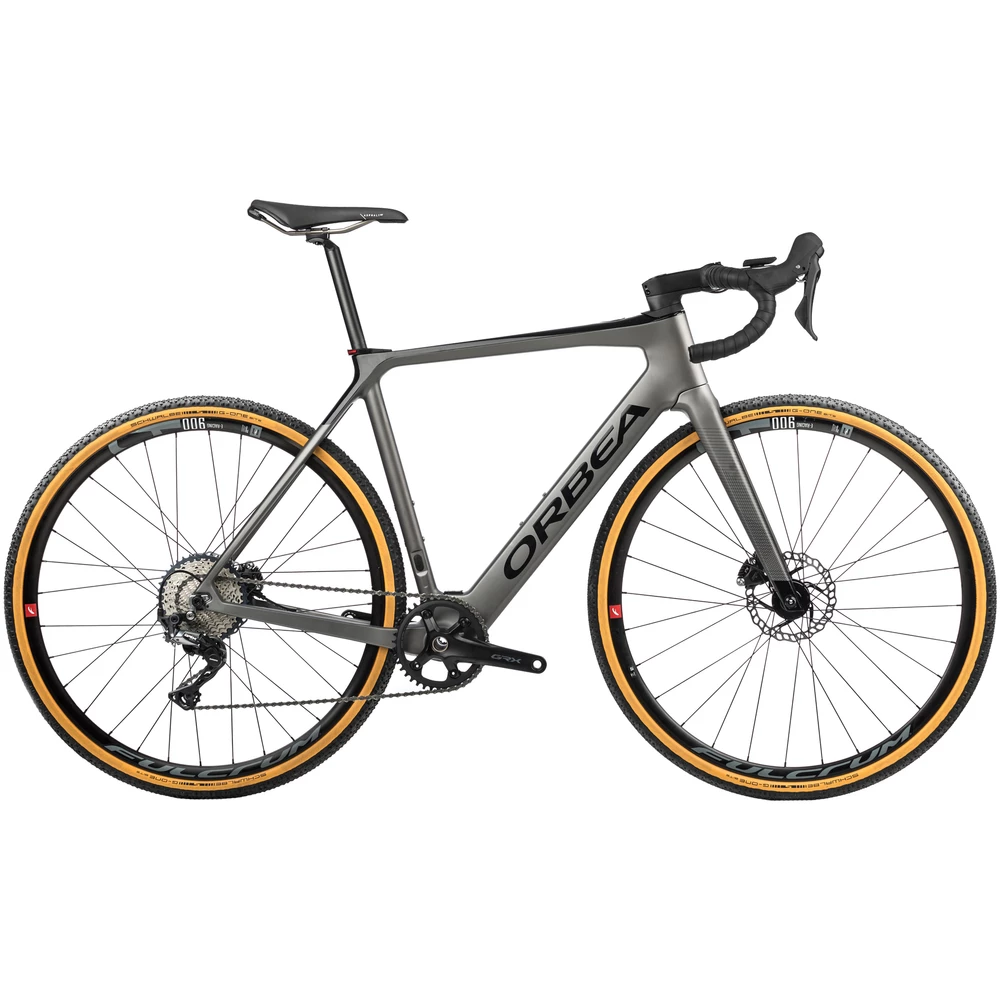

Orbea Gain M30 GRX 600 Disc Electric Gravel Bike 2021
Set off on your next adventure without being restricted to the road with the Orbea Gain M30 GRX 600 Disc Electric Gravel Bike. Towpaths, fire roads and single track of any gradient are tamed by the powerful 250-watt motor while the lightweight carbon fibre frameset provides a comfortable and nimble ride.
With the motor mounted to the rear hub and the battery hidden in the downtube, this looks like a regular gravel bike at first glance. But when you need a little assistance, the powerful 250-watt Mahle Ebikemotion motor can be switched on at the push of a button and provide assistance up to a maximum speed of 15.5 mph / 25 km/h. When disengaged, the motor doesn't hinder the drivetrain so you can ride unimpeded.
The dedicated gravel specification on this bike includes the superb Shimano GRX 600 groupset, offering a 1 x 11-speed gearing setup. With less maintenance thanks to the single chainring and all the ratios you need for any terrain, it's a fantastic option that also boasts powerful hydraulic disc brakes for superior stopping power. The bike comes fitted with Schwalbe G-ONE Bite clincher tyres, perfect for mixed terrain, so you can get out exploring from day one.
Browse our range of Orbea electric gravel bikes today.
Highlights
- A hugely capable gravel-specific e-bike
- Lightweight Orbea Carbon OMR monocoque frameset
- The Mahle Ebikemotion X35 Plus motor is designed to improve your rides, not dominate them
- Motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
- ICR Plus internal cable routing keeps the cockpit clean looking
- Integrated lights
- Mahle Ebikemotion 248Wh battery neatly housed in the downtube
- Mahle Ebikemotion iWoc ONE interface displays battery and assist levels as you ride
- Endurance geometry is perfect for riding all day long
- Shimano GRX 600 11-speed gravel-specific groupset
- Schwalbe G-ONE Bite gravel tyres are 38mm wide for superb traction
Battery Specification
- Maximum Assist: 250w up to 25km/hr
- Motor Weight: 3.5kg
- Range: Up to 47 miles / 75km depending on usage and riding conditions
- Battery Power: 248Wh
Technical Specification
| Frame | Orbea Gain Carbon OMR monocoque structure, integrated seat clamp with integrated Lezyne STVZO rear light, ICR internal cable routing, forged bottom bracket BB386 EVO, 135x9mm quick release, flat mount disc, 700x40mm maximum tyre clearance, 1" 1/2 semi headset |
| Fork | Orbea Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40mm maximum tyre clearance, flat mount disc, Orbea 12x100mm Thru-Axle M12x2 P1 Lite, down tube aero integration |
| Headset | Orbea Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | Orbea ICR -8º |
| Handlebar | OC1 All Road, reach 80mm, drop 125mm, flare 12º |
| Front Brake | Shimano RX400 hydraulic disc |
| Rear Brake | Shimano RX400 hydraulic disc |
| Brake Levers | Shimano GRX 600 |
| Rear Derailleur | Shimano GRX RX812 GS |
| Front Derailleur | N/A |
| Shift Levers | Shimano GRX ST-RX600 11-speed |
| Chain | Shimano HG 601, 11-speed |
| Cassette | Shimano SLX M7000 11-40t 11-speed |
| Crankset | Shimano GRX RX600 40t |
| Front Wheel | Fulcrum E-Racing 900 clincher |
| Rear Wheel | Fulcrum E-Racing 900 clincher |
| Front Tyre | Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic SkinX, tubeless-ready clincher |
| Rear Tyre | Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic SkinX, tubeless-ready clincher |
| Saddle | Selle Royal Asphalt GR |
| Seatpost | OC2 Carbon, 27.2, Offset 20mm |
| Pedals | Available to be purchased separately |
| Accessories | 60 Lumen COB LED front light on display holder, 11-lumen Lezyne STVZO integrated seat clamp rear light |
| Motor | Mahle Ebikemotion X35 Plus 25kmh (250 watts, 40Nm maximum torque) |
| Remote | Mahle Ebikemotion iWoc ONE |
| Display | Mahle Ebikemotion Pulsar One monochrome ANT+ LEV |
| Battery | Mahle Ebikemotion 36V/6.9A 248Wh ANT+ |
| Charger | Mahle Ebikemotion X35 |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
