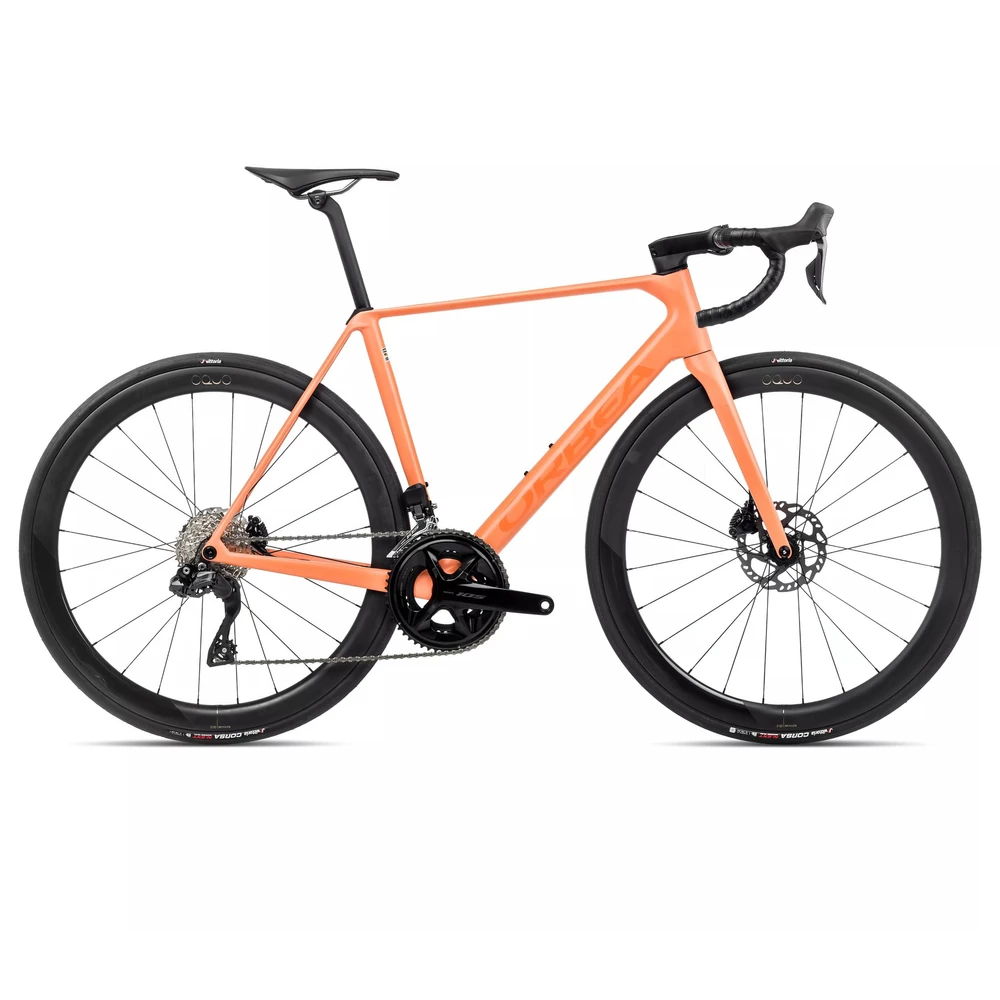

Orbea ORca M30iLTD PWR Road Bike 2024
Introducing the Orbea Orca M30iLTD PWR Road Bike 2024 – a masterstroke of engineering that redefines your climbing prowess. Crafted to perfection, this bike combines lightweight design with exceptional performance, giving you an edge on every ascent. The Orca carbon OMX 2024 frame, boasting monocoque construction and powermeter compatibility, sets new standards for power and precision. The Shimano 105 R7100 crankset ensures efficient power transfer, while OC Road Performance Carbon RP11 handlebars provide comfort and control. Shift with precision using Shimano Di2 R7170 shifters and experience confident braking with Shimano R7170 hydraulic disc brakes. The Shimano 105 Di2 R7150 derailleurs guarantee smooth gear transitions, while the OQUO Road Performance RP45 LTD Carbon wheels offer dynamic performance. Vittoria Corsa N.Ext G2.0 Foldable tyres ensure exceptional traction. Embrace the marvel that revolutionizes climbing – the Orca M30iLTD PWR. Embody the ultimate climbing experience with Orbea's innovation.
Images for display purposes only, not true to spec.
Technical Specification
| Frame | Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5”, BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
| Fork | Orbea Orca OMX ICR 2024, full carbon, 1-1/8” - 1,5” tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. Crankset Shimano 105 R7100 36x52t |
| Headset | FSA 1-1/2” Integrated Aluminium Cup |
| Handlebar | OC Road Performance Carbon RP11, Reach 80, Drop 125, w/Di2 hole |
| Handlebar | Tape Lyzard DSP 2.5mm Stem OC Road Performance RP10, -8º Shifters Shimano Di2 R7170 |
| Brakes | Shimano R7170 Hydraulic Disc |
| Rear Derailleur | Shimano 105 Di2 R7150 |
| Front Derailleur | Shimano 105 Di2 R7150 |
| Chain | Shimano M7100 |
| Wheels | OQUO Road Performance RP45 LTD Carbon |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite Front Hub Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Tyres | Vittoria Corsa N.Ext G2.0 Foldable 700x28c |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Vento Antares R3 - 140mm 7x7mm |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
