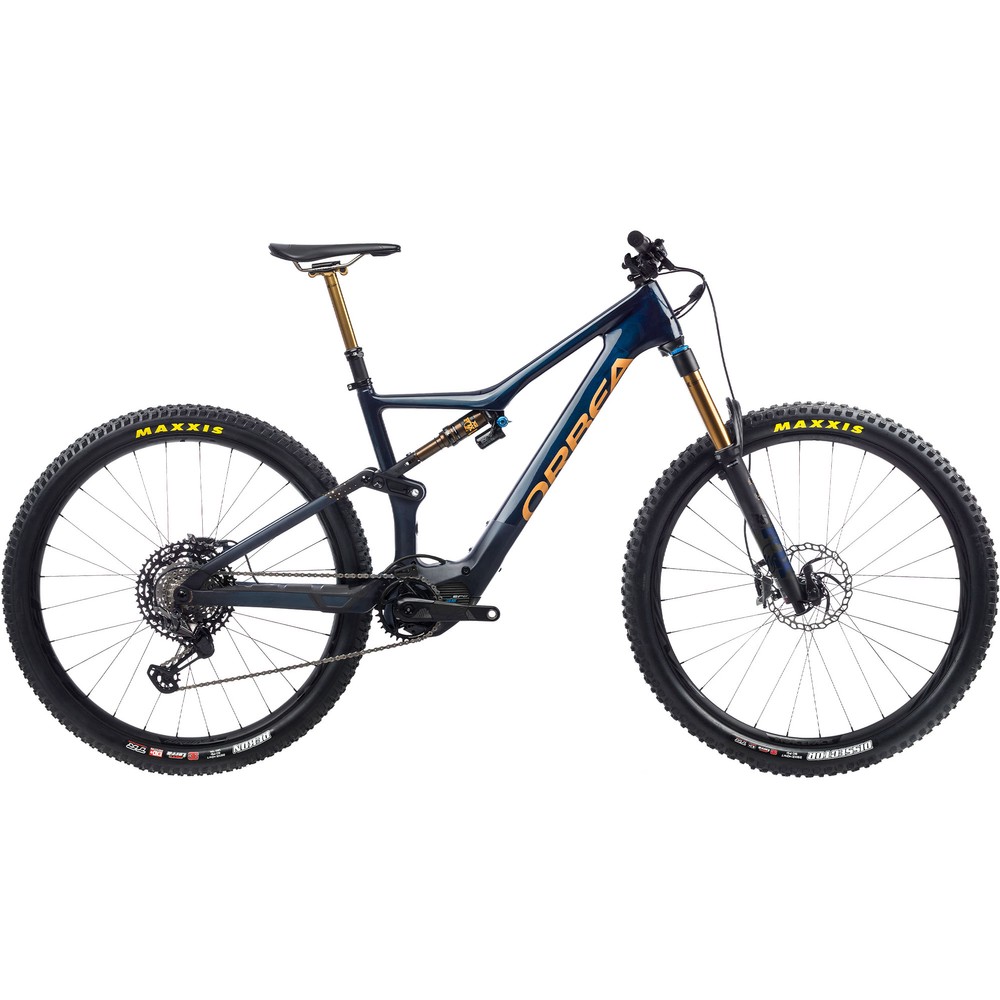

Orbea Rise M-Team Full Suspension 29" Electric Mountain Bike 2021
Designed to expand your trail riding horizons, the Orbea Rise M-Team Full Suspension 29" Electric Mountain Bike opens up the world for exploration, offering an exhilarating experience every single ride. Ride further, faster, and for longer - without compromise. Integrated and sleek, the Rise retains the appearance of a traditional mountain bike and delivers that same mantra on the trail. The lightweight OMR carbon design provides the same snappy handling you’ve grown accustomed to with your non-electric bike, yet supplies you with the assistance you need to extend your playtime and discover a whole new ride experience.
Fundamental to the design of the Rise is the exceptional Shimano EP8-RS motor system. Complete with a custom tune, this exclusive motor is truly unique, with it being used solely on the Orbea Rise range. Capable of delivering 60Nm of torque in any situation and assistance up to a maximum speed of 15.5 mph / 25 km/h, this bike packs a punch well above its low, manageable weight, and is the perfect pairing for longer all-mountain style rides.
The modular battery design sees an included 360Wh battery with an optional aftermarket range extender, which means the overall capacity is boosted to an impressive 612Wh. With 140mm of rear suspension and fast-rolling 29” wheels, the Rise is a force to be reckoned with on any trail. Versatile and aimed at fast-paced trail riders, it is paired with a burly 150mm FOX 36 Float Factory fork for unrivalled composure on rough terrain.
Shimano is on shifting duty with the phenomenal XTR groupset, with its exceptional four-piston M9120 brakeset equipped for incredible stopping power. A Race Face NEXT carbon handlebar is paired with a Turbine R 35mm stem for direct, sharp handling, and the high-quality Race Face Turbine wheels are durable, built to shrug off the occasional case and hangup.
Browse our range of Orbea electric mountain bikes today.
Highlights
- Lightweight OMR carbon frame construction
- Sleek, integrated design
- Custom tuned Shimano EP8 RS motor system, Rider First firmware
- Modern long-reach geometry
- Optimised for a natural feel on the trail
- 360Wh battery, aftermarket 252Wh range extender available
- Fast-rolling 29" wheels
- 140mm of rear suspension, ideal for all-mountain use
- 150mm FOX 36 Float Factory fork, GRIP2 damper
- Full Shimano XTR 12-speed drivetrain
- Shimano XTR four-piston brakes
- Compatible with the Shimano E-Tube smartphone app
Battery Specifications
- Maximum Assist: 250w / 60Nm torque / 25km/hour
- Motor Weight: 2.6kg
- Battery Power: 360wh
Technical Specification
| Frame | Orbea Rise OMR Carbon,140mm travel, 29" wheels, C-Boost 12x148 axle |
| Fork | FOX 36 Float Factory, 150, GRIP2, 15x110, Kashima |
| Rear Shock | FOX DPX2 Factory, 3-Position Adjust, Evol, Kashima, custom tune, 210x55mm |
| Stem | Race Face Turbine R, 35mm interface |
| Handlebar | Race Face Next R 35, 20mm rise, 780mm width |
| Front Brake | Shimano XTR M9120, four-piston caliper, hydraulic disc |
| Rear Brake | Shimano XTR M9120, four-piston caliper, hydraulic disc |
| Brake Levers | Shimano XTR M9100 |
| Rear Derailleur | Shimano XTR M9100 SGS Shadow Plus, 12-speed |
| Shift Levers | Shimano XTR M9100, 12-speed |
| Chain | Shimano CN-9100, 12-speed |
| Cassette | Shimano XTR M9100, 12-speed, 10-51t |
| Crankset | e*thirteen Race Carbon 165mm |
| Front Wheel | Race Face Turbine-R30, tubeless-ready, 15/110mm |
| Rear Wheel | Race Face Turbine-R30, tubeless-ready 12x148mm |
| Front Tyre | Maxxis Dissector 2.40", 60 TPI, 3CMaxxTerra Exo, tubeless-ready, clincher |
| Rear Tyre | Maxxis Rekon 2.40", 120 TPI, 3CMaxxTerra Exo+, tubeless-ready, clincher |
| Saddle | Fizik Taiga K |
| Seatpost | Fox Transfer Factory Kashima Dropper, 31.6mm |
| Pedals | Available to be purchased separately |
| Motor | Shimano EP8-RS |
| UI/Remote | Shimano E7000 switch unit |
| Battery | Orbea RS Internal 360Wh |
| Accessories | Orbea RS Charger (36V-2A) |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
