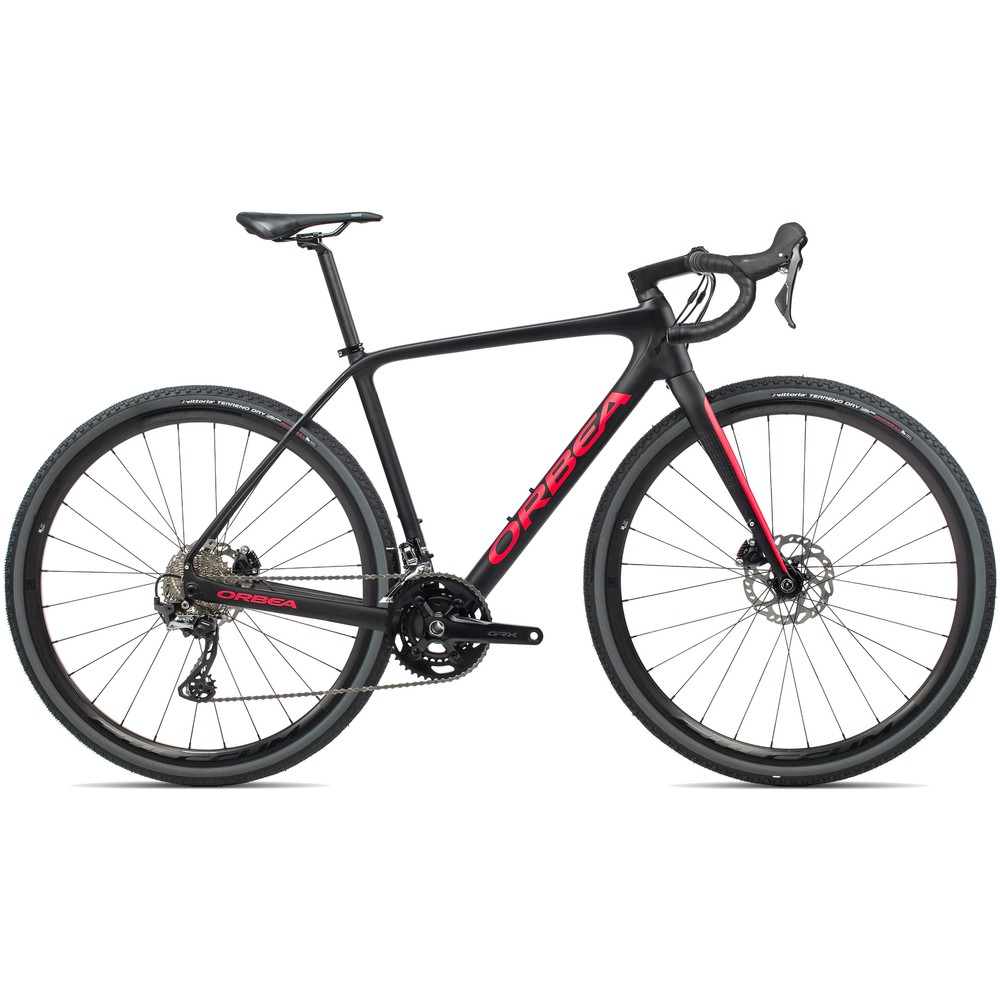

Orbea Terra M30 Disc Gravel Bike 2021
Infusing enthusiasm and confidence into any rider, the Orbea Terra M30 Disc Gravel Bike is ready and set to roll across a multitude of surfaces during the biggest of adventures. A comprehensive, gravel inspired design is joined by advanced materials and proficient components to bestow heightened performance, whether venturing into the wilderness or commuting in the darkest of winter months.
An advanced carbon composition is presented within a monocoque construction to provide a lightweight but ultimately responsive frame that is eager to conquer any climb. Sculpted tube sections are conceived and positioned in line with specific requirements to award a blend of lateral stiffness and rough surface comfort. Realised with a size-specific geometry, the frame supplies composed handling traits for the most technical of riding scenarios to any rider of any height.
The Blackjack Ready GR wheelset has a robust alloy rim that is also light enough to promote an enlivened ride experience. The 21mm internal width of this rim mates perfectly with the Vittoria tyres to supply cushioning, traction and low rolling resistance. A Shimano 11-speed, double chainring gear configuration ensures that any topography can be conquered in an unflappable fashion thanks to the broad scope of ratios provided. At the same time, the hydraulic disc brakes donate confidence via their modulated and powerful stopping power that isn’t affected by even the worst of weather conditions.
Highlights
- A super-versatile gravel bike that also performs admirably on the road, in cyclocross, during winter training or when commuting
- Full Orbea monocoque carbon frameset is light, precise and durable
- Optimised frame tube shapes offer stiffness, compliance and comfort across any surface
- Wide tyre clearance allows the use of different tyre widths to suit the terrain
- Integrated mudguard mounts offer all weather protection
- Size-specific frame tube sections and a finely tuned geometry grant control and balance across dirt tracks, gravel paths and roads
- Blackjack Ready GR wheelset is robust but reactive
- Shimano 11-speed gears are precise and reliable
- Double front chainring configuration offers a vast range of gear ratios
- Shimano Shimano RX400 hydraulic disc brakes offer powerful and modulated stopping power
Technical Specification
| Frame | Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30, power meter compatible, thru-axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm |
| Fork | Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts, thru-axle 12mm x 100m, thread M12xP1.5, MMS system |
| Headset | FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB bearings |
| Stem | Orbea OC1 31.8mm interface -6º |
| Handlebar | Orbea OC1 All Road, reach 80mm, drop 125mm, flare 12º |
| Front Brake | Shimano RX400, hydraulic disc |
| Rear Brake | Shimano RX400, hydraulic disc |
| Brake Levers | Shimano RX400, hydraulic disc |
| Front Derailleur | Shimano GRX RX810 |
| Rear Derailleur | Shimano RD-RX810, 11-speed |
| Shift Levers | Shimano ST-RX600, 11-speed |
| Cassette | Shimano 105 R7000 11-34t, 11-speed |
| Crankset | Shimano GRX RX600, 30x46 teeth chainrings |
| Chain | Shimano HG 601, 11-speed |
| Front Wheel | Blackjack Ready GR with 12mm E-Thru Shimano RS470 28H hub, 12x100mm M12xP1.5 hollow thru-axle compatibility |
| Rear Wheel | Blackjack Ready GR with 12mm E-Thru Shimano RS470 28H hub, 12x142mm M12xP1.5 hollow thru-axle compatibility |
| Front Tyre | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c, tubeless-ready |
| Rear Tyre | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c, tubeless-ready |
| Saddle | Prologo Akero AGX STN, size 155mm |
| Seatpost | Orbea OC2 27.2 Offset 20 |
| Pedals | Available to be purchased separately |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
