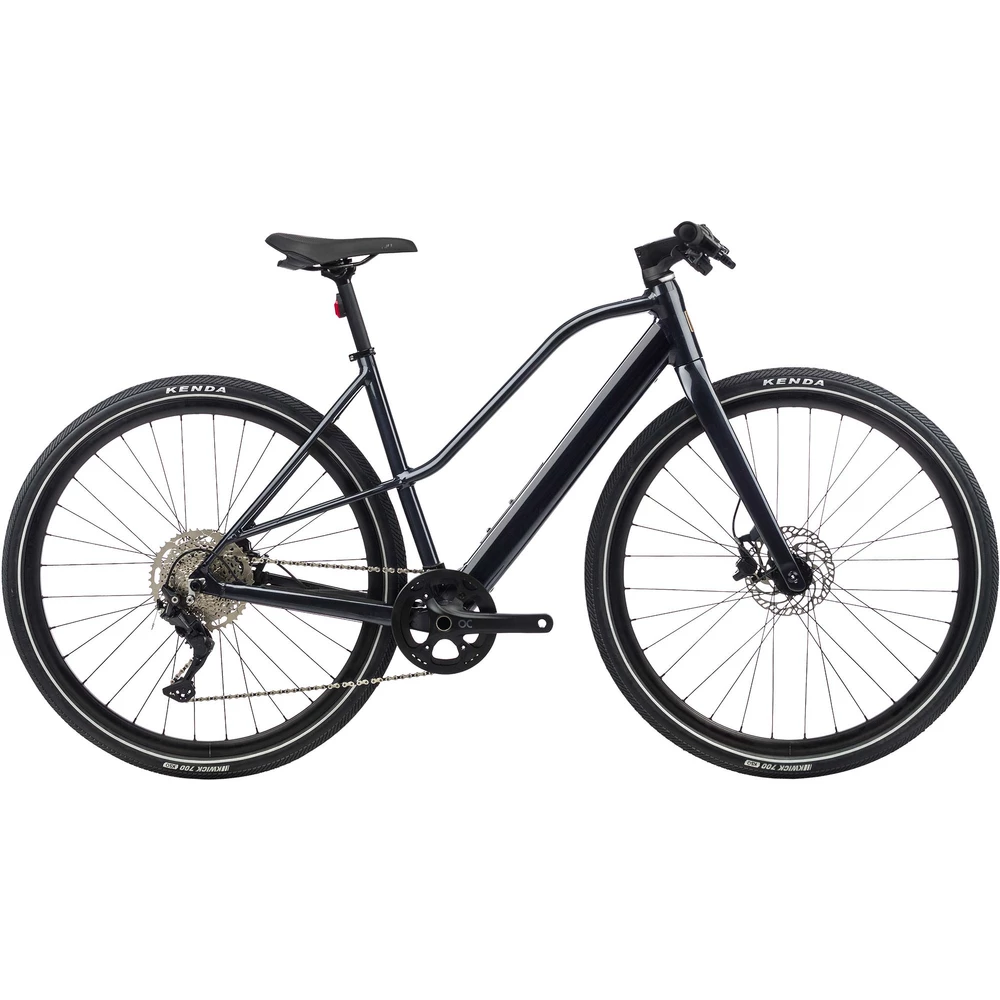

Orbea Vibe Mid H30 Electric Hybrid Bike 2021
Stylish, fun, incredible value, and with city-friendly features, the Orbea Vibe Mid H30 Electric Hybrid Bike is the perfect choice for any leisure cyclist. To retain the look of a manual bike, the Ebikemotion X35 Plus motor and 248Wh battery are integrated into the hub and downtube respectively to provide clean lines throughout the frame. Despite its compact size, the Ebikemotion X35 Plus motor delivers 40Nm of torque, providing all the support needed to speed up steep climbs. Thanks to the low weight of the battery, the handling is responsive and reminiscent of a standard hybrid, ensuring the Vibe Mid H30 is a joy to ride across town.
To reduce vibrations from the road, a carbon fork is used, helping limit fatigue on rough roads and paths. Integrated cabling keeps things simple, keeping the cockpit clean and tidy and the cables safely out of the way of harm. The 248Wh battery is super light compared to higher-capacity models and provides more than enough power for leisure and town riding. For longer rides, an aftermarket range extender is available, ideal for boosting power. A reliable Shimano Deore drivetrain and Magura MT30 hydraulic brakes are both durable and efficient, and the low-profile Kenda tyres roll quickly on pathways and roads.
Browse our range of Orbea electric hybrid bikes today.
Highlights
- Unisex mid-style frame design
- Integrated frame lighting
- Lightweight internal Ebikemotion 248Wh battery
- Ebikemotion X35 hub motor system
- Minimalist and integrated design to mimic the look of a manual bike
- Torque Simulation Algorithm to mirror the effort you put in, with a max torque of 40Nm
- Near drag-free pedalling when the motor is not in use
- Discreet iWOC TRIO handlebar remote
- 10-speed Shimano Deore groupset for smooth shifting
- Powerful hydraulic Magura MT30 disc brakes
- Comfortable Selle Royal Lift saddle
- Aftermarket range extender available
Battery Specifications
- Maximum Assist: 250w / 40Nm torque
- Motor Weight: 2.1kg
- Battery Power: 248wh
Technical Specification
| Frame | Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135x9 QR, flat mount disc, 700x45 maximum tyre clearance, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and mudguard compatible |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, mudguard compatible |
| Headset | Orbea Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | Orbea OC1 31.8mm interface -6º |
| Handlebar | Orbea Alloy 31.8mm, 12mm rise, 700mm width |
| Grips | Brooks Comfort Cambium 130mm |
| Front Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
| Brake Levers | Magura MT30 E-STOP |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus, 10-speed |
| Shift Levers | Shimano Deore M4100 10-speed |
| Chain | KMC X10 |
| Cassette | Shimano CS-M4100 11-46t 10-Speed |
| Crankset | Orbea OC 42t, with chainguard |
| Front Wheel | Blackjack Ready GR |
| Rear Wheel | Blackjack Ready GR |
| Front Tyre | Kenda K1052 700x45C Reflective type, puncture protection strip, clincher |
| Rear Tyre | Kenda K1052 700x45C Reflective type, puncture protection strip, clincher |
| Saddle | Selle Royal Lift 1404 HRN 266x170mm |
| Seatpost | Orbea Alloy 27.2, offset |
| Pedals | Available to be purchased separately |
| Motor | Ebikemotion X35 Plus 25kmh |
| Ui/Remote | Ebikemotion iWoc TRIO |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Accessories | Integrated lights front and rear (Lezyne FENDER STVZO rear light), Knog OI Classic bell |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
