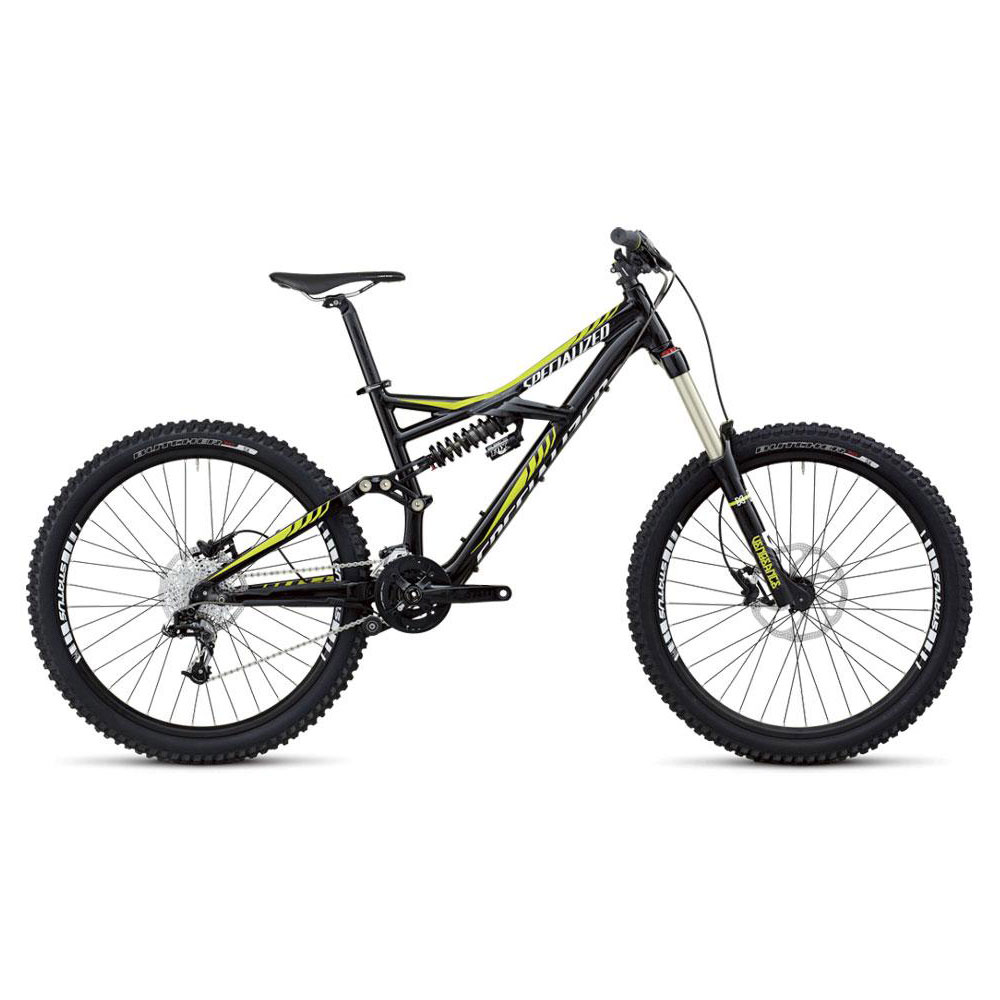

The 165mm-travel M5 aluminium Enduro EVO is an all-mountain machine catered to aggressive descending. Equipped with a Fox VAN R coil shock, X-Fusion Vengeance R coil-sprung fork, SRAM 2x10 drivetrain and custom Avid Elixir 3 SL hydraulic disc brakes.
- All-new, fully manipulated M5 alloy FSR frame with ORE tubing is the centrepiece of this incredibly versatile 180mm-travel design; featuring sealed cartridge bearing pivots, 142mm dropouts, ISCG '05 mount, and replaceable derailleur hanger
- Custom FOX Van R coil shock with adjustable rebound works with the bike's FSR design to keep the rear wheel planted for maximum traction
- Specialized Butcher SX 2.3" dual-compound tyres for premium traction on challenging terrain
- Custom SRAM S-1250 AM double crankset with PF30 spindle and shiftguide works with the SRAM 10-speed cassette for high-performance shifting and acceleration
- X-Fusion Vengeance coil-sprung fork with tapered alloy steerer tube, 170mm of travel, adjustable rebound control and 20mm thru-axle makes a plush fork that tracks through technical terrain
- The 750mm-wide Specialized DH low-rise handlebar is super wide to control the toughest conditions
- All-new Sip Grip, a lock-on, aramid infused, half-waffle MTB grip boosts durability, comfort and control
- Avid Elixir 3 hydraulic disc brakes with a 200mm front and 180mm rear rotors for reliable stopping power.
Tech Specs
FRAME - M5 Aluminium, EVO geometry, fully manipulated frame w/ ORE TT/ DT, tapered HT, PF30 BB, ISCG 05 mount, 142 dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 180mm travel
REAR SHOCK - FOX VAN R, coil spring, rebound adj., S: 450, M: 500, L: 550
FORK - X-Fusion Vengeance R, coil spring, tapered alloy steerer, reb adj., 20mm thru-axle, 170mm travel
HEADSET - 1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM - Specialized P.Series MTB, forged alloy, 4-bolt, 40mm length, 31.8mm
HANDLEBARS - Specialized DH low-rise bar, 6061 alloy, 750mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS - Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
FRONT BRAKE - Custom Avid Elixir 3 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor, 200mm
REAR BRAKE - Custom Avid Elixir 3 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor, 180mm
BRAKE LEVERS - Avid Elixir 3, hydraulic disc, tool-less reach adj.
FRONT DERAILLEUR - SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR - SRAM X9 Type 2, 10-speed, mid cage
SHIFT LEVERS - SRAM X7, 10-speed, trigger, w/MatchMaker clamp
CASSETTE - SRAM PG-1030, 10-speed, 11-36
CHAIN - KMC X10, nickel plate, reusable Missing Link
CRANKSET - Custom SRAM S-1250, 10-speed AM double, PF30 spindle w/ shift guard, S: 170mm, Others: 175mm
CHAINRINGS - 36/24
BOTTOM BRACKET - SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS - Resin Test Ride Pedals with toe clips, CEN std.
RIMS - P-Disc, 32mm wide, 36h
FRONT HUB - Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 15mm thru-axle, 36h
REAR HUB - Specialized Hi Lo disc, 4x-sealed cartridge bearing, 12mm thru-axle, 36h
SPOKES - Stainless, 14g
FRONT TYRE - Specialized Butcher SX, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 26x2.3"
REAR TYRE - Specialized Butcher SX, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 26x2.3"
INNER TUBES - Ultralight presta
SADDLE - BodyGeometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST - Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
SEAT BINDER - 34.9mm clamp, 7050 hard anodized alloy collar w/ QR, black
Technical Specification
