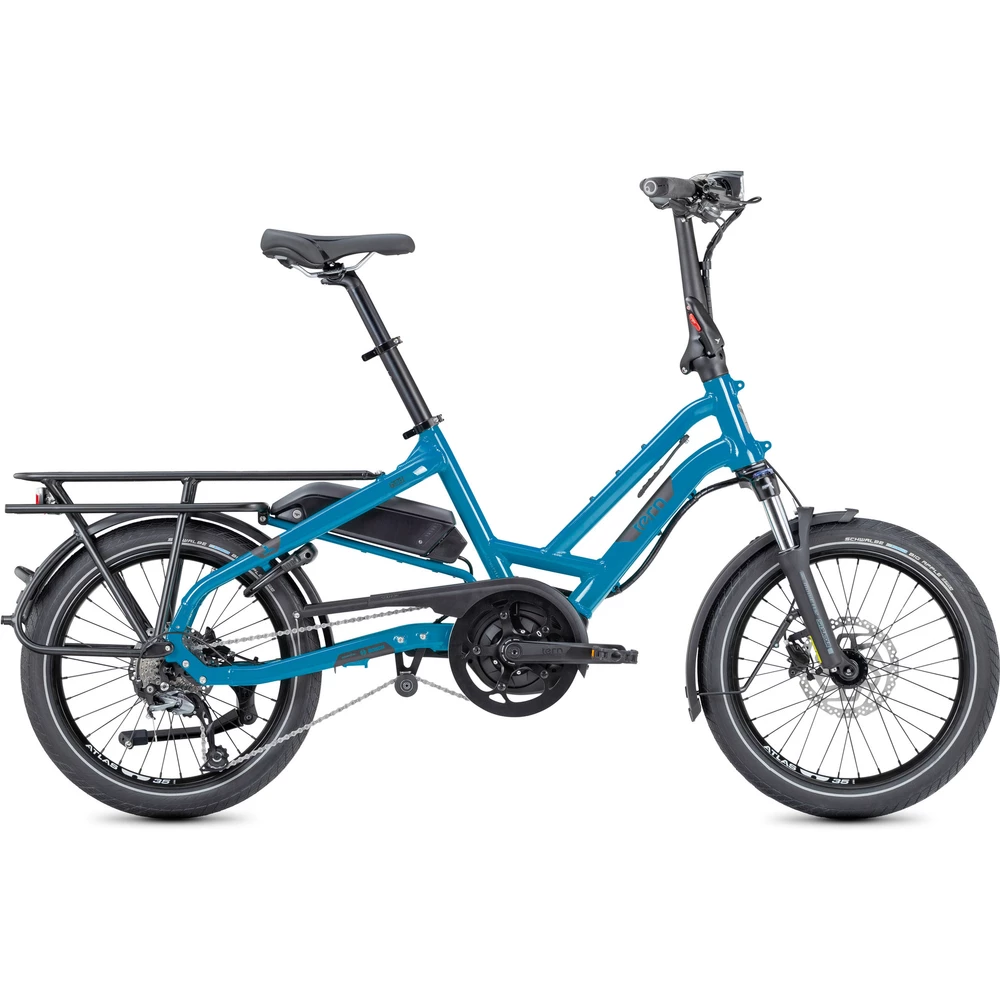

Tern HSD P9 Electric Cargo Bike
Incorporating a Bosch motor and battery system that provides assistance up to a maximum speed of 15.5 mph / 25 km/h and up to 69 miles of range, the Tern HSD P9 Electric Cargo Bike is highly functional and versatile enough for a variety of outings. It can carry up to 170kg so is perfect for transporting cargo, taking the kids to school, shopping and days out. The step-thru frame is easy to mount and dismount and the longer wheelbase and lower centre of gravity make the bike incredibly stable. A Suntour suspension fork effectively soaks up bumps to make the ride smoother.
Despite its capabilities as a cargo bike, the HSD has a small footprint, even smaller than a regular bicycle, and it's easy to transport and store thanks to the ability to fold it flat in just 15 seconds, or it can be stood vertically when floor space is limited. There's a dedicated trailer mount included and the extra-long Atlas H Rack™ is compatible with a host of Passenger System accessories to suit individual needs.
The frame can be adjusted for riders between 150 and 195cm tall, and there's also adjustability in the saddle, seatpost and stem. Equipped with front and rear lights, a kickstand, mudguards, chainguard and lock, the HSD is ready for all conditions and eventualities.
Shimano Alivio 1x9-speed gearing provides a good range for both ups and downs and the hydraulic disc brakes are powerful and reliable on both wet and dry roads, stopping you fast as and when required. Strong 20" Tern Atlas wheels are fitted with Schwalbe Big Apple tyres with reflective sidewalls for maximum puncture protection and visibility in low light.
Highlights
- Bosch® Active Line Plus motor with Purion display
- 400 Wh battery for a range of up to 110 km (69 mi)
- Custom Suntour suspension fork
- 9-speed Shimano® Alivio Shadow RD derailleur
- Shimano hydraulic disc brakes
- Abus® keyed-alike frame lock
- Fits riders from 150 to 195 cm (4’11” – 6’5”)
- Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed
Battery Specification
- Range: 110km (69 miles) (depending on setting and usage)
- Battery Power: 400Wh
Technical Specification
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved 170kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32mm stanchions, thru-axle, 70mm travel, EFBE tested for 170kg |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Bottom Bracket | Motor integrated |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Handlepost | Tern Physis 3D (G2), 3D forged, five patented technologies, 12°, 290mm |
| Stem | Tern Andros (G2), adjustable, forged construction, patented technology |
| Grips | Ergon |
| Front Brake | Shimano, hydraulic disc, 180mm rotor |
| Rear Brake | Shimano, hydraulic disc, 160mm rotor |
| Brake Levers | Shimano, hydraulic disc |
| Brake Cable and Housing | Shimano, hydraulic disc |
| Rear Derailleur | Shimano Alivio Shadow |
| Shift Levers | Shimano Alivio, 1 x 9-speed, trigger |
| Shifter Cable and Housing | Jagwire LEX-SL, slick treatment, alloy ferrules |
| Chain | 9-speed, DHT for eBike, GST corrosion-resistant coating |
| Cassette | Shimano 11-32T, 9-speed |
| Crankset | Tern HSD custom |
| Front Wheel | Tern Atlas H, cargo / hub - Novatec, thru-axle, sealed bearings / spokes - stainless steel |
| Rear Wheel | Tern Atlas H, cargo / hub - Shimano disc / spokes - stainless steel |
| Front Tyre | Schwalbe Big Apple, 55-406, puncture protection, Reflex, clincher |
| Rear Tyre | Schwalbe Big Apple, 55-406, puncture protection, Reflex, clincher |
| Saddle | Tern HSD |
| Seatpost | Tern Telescope, 34.9/30.9 mm |
| Seatpost Clamp | Tern Collar, 6061-AL, 2pc |
| Pedals | Urban with non-slip surface, sealed bearings |
| Motor | Bosch Active Line Plus (Gen 3), maximum speed 25kph |
| Battery | Bosch PowerPack 400Wh |
| Display/UI | Bosch Purion, four mode selectable, walk assist |
| Charger | Bosch Standard Charger |
| Maximum recommended weight | Rider - 120kg (264.6lbs) / maximum gross vehicle weight - 170kg (374.8lbs) |
| Suggested Rider Height | 150 - 195cm (59.1 - 76.8") |
| Distance (Seatpost to Handlebar) | 49 - 59cm (19.3 - 23.2") |
| Distance (Saddle to Pedal) | 69 - 105 cm (27.2 - 41.3") |
| Manufacturer claimed weight | 25.7kg (56.7lbs) |
| Accessories | Tern Valo Direct, 45 lux/190 lumens front light / Herrmans H-Trace, for eBike rear light / Atlas H Rack™, Atlas Rack Mount, six point mounting - maximum load weight 60kg (132lb) / SK mudguards, stainless hardware / aluminium bell / SKS Chainblade chainguard / Ursus, rear mount kickstand / Combo Mount luggage socket / ABUS 5650L, keyed-alike with Bosch battery |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
