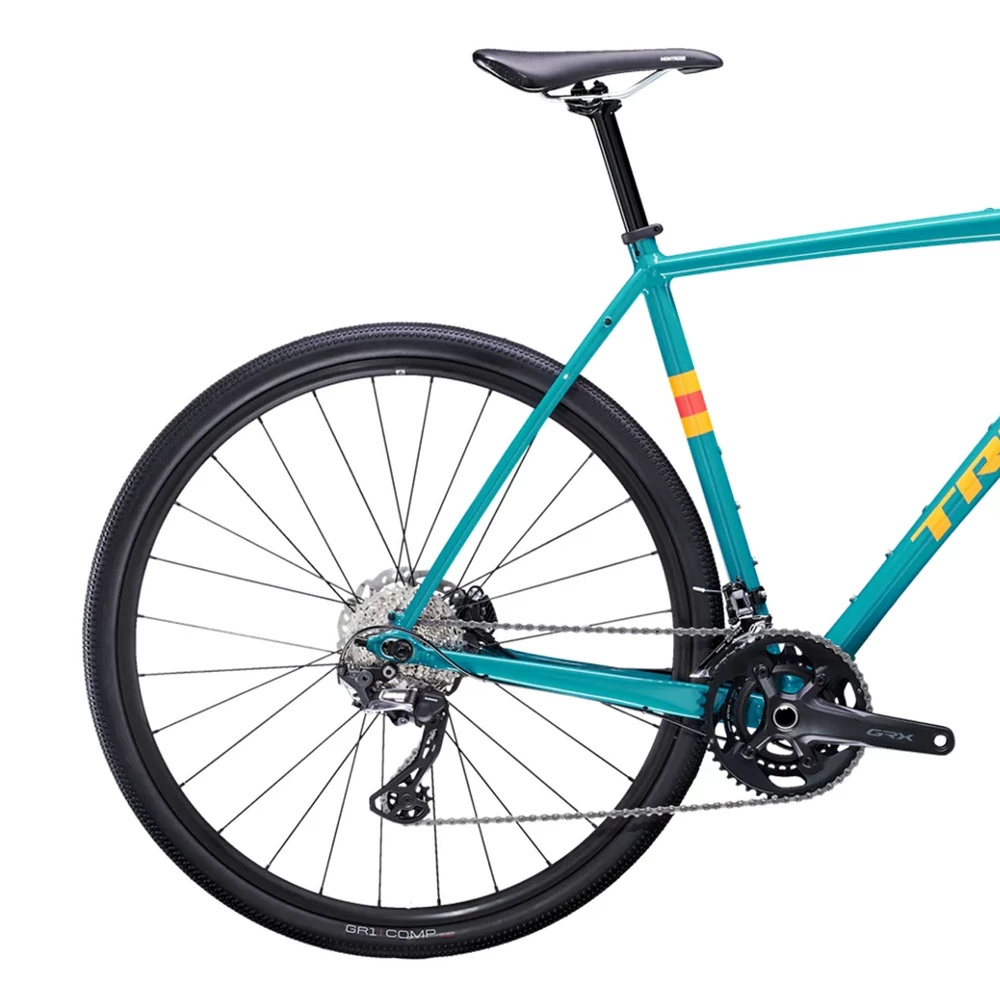

Trek Checkpoint ALR 5 Disc Gravel Bike 2021
Offering great value for money, Trek’s Checkpoint ALR 5 Disc Gravel Bike can be used as a daily commuter or as a worthy accomplice in any off-road adventure. The 300 Series Alpha Aluminium frame has multiple mounting points for rack, bottles, mudguards and luggage so it can carry as much or as little as is needed and with clearance for 45mm tyres, it really can go anywhere. Trek’s Stranglehold rear dropout allows the rear axle to be moved back or forwards a few millimetres in order to effectively lengthen the chainstay for customised geometry or to facilitate using the bike as a single-speed.
The GRX groupset is Shimano’s gravel-specific offering, pairing a 46/30 chainset with an 11-speed 11-34 cassette for enough gears for climbing when fully laden or blasting down a country lane. The GRX hydraulic disc brakes match the gears both in name and performance, with plenty of power to stop bike and luggage or give delicate control on sinuous singletrack.
Highlights
- Trek 300 Series Alpha Aluminium frame with Control Freak internal routing, Stranglehold dropouts and rack and mudguard mounts
- Trek Checkpoint carbon fork with rack and mudguard mounts
- Shimano GRX hydraulic disc brakes
- Shimano GRX 11-speed mechanical groupset
- Bontrager 700c wheelset with Bontrager GR1 Comp tyres
Technical Specification
| Frame | Trek 300 Series Alpha Aluminium, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and mudguard mounts, flat mount disc, Stranglehold dropouts, 142x12mm thru-axle |
| Fork | Trek Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat mount disc, 12x100mm thru-axle |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Bottom Bracket | Shimano RS500, 92mm, PressFit |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree |
| Handlebar | Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop |
| Front Brake | Shimano GRX hydraulic disc, flat mount |
| Rear Brake | Shimano GRX hydraulic disc, flat mount |
| Brake Levers | Shimano GRX hydraulic disc |
| Front Derailleur | Shimano GRX RX810, braze-on |
| Rear Derailleur | Shimano GRX RX810, long cage, 34T max cog |
| Shift Levers | Shimano GRX RX600, 11-speed |
| Cassette | Shimano 105 HG700-11, 11-34t, 11-speed |
| Crankset | Shimano GRX RX600, 46/30t |
| Front Wheel | Bontrager alloy, sealed bearing, Centre Lock disc, 100x12mm thru-axle hub with Bontrager Tubeless Ready, 28-hole, 17mm width, Presta valve rim |
| Rear Wheel | Bontrager alloy, sealed bearing, Centre Lock disc, Shimano 11-speed freehub, 142x12mm thru-axle hub with Bontrager Tubeless Ready, 28-hole, 17mm width, Presta valve rim |
| Front Tyre | Bontrager GR1 Comp, wire bead, 60 tpi, 700x40c clincher |
| Rear Tyre | Bontrager GR1 Comp, wire bead, 60 tpi, 700x40c clincher |
| Saddle | Bontrager Montrose Comp, steel rails, 138mm width |
| Seatpost | Bontrager Approved, alloy, 27.2mm, 8mm offset |
| Pedals | Available to be purchased separately |
| Claimed Manufacturers Weight | 10.17kg size 54cm |
| Please note | Accessories shown are for illustration only and not included |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
