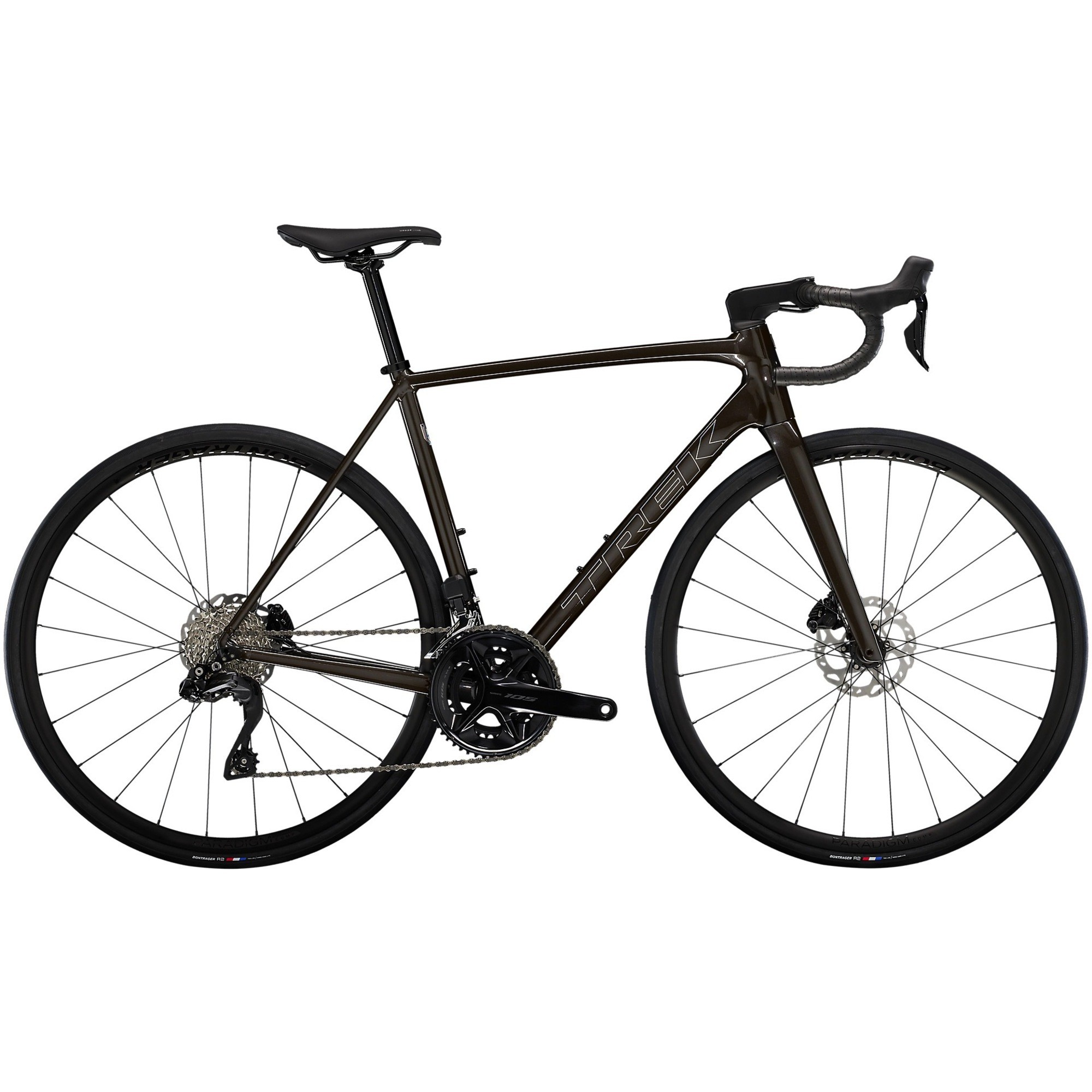

Trek Emonda ALR 6 Disc Road Bike 2023
The race-ready Trek Emonda ALR 6 Disc Road Bike brings together an advanced 300 Series Alpha Aluminium frame with a carbon fork, and features aerodynamic Kammtail tubes and an integrated cockpit. With this model you get the low weight and sublime handling of the higher-end carbon models at a more pocket-friendly price. The H1.5 race geometry puts you in an aggressive position that's still comfortable for longer rides and races. Cables are all routed internally, not only to sit in line with the sleek aesthetics of this bike but also to extend cable life through reduced contamination.
The bike has been built up with Shimano's 105 Di2 components, bringing electronic shifting to more riders. Shifts are smooth, precise and instant at just the light touch of a lever, and the hydraulic brakes ensure stopping power is consistent in all conditions. The Bontrager Paradigm Comp wheels and Bontrager R2 Hard-Case Lite tyres in a 28mm width make for fast, comfortable rolling and offer excellent protection against punctures. The stem, saddle, crank length and seatpost are all frame size specific, delivering a more personalised feel to the setup.
Highlights
- Ultralight 300 Series Alpha Aluminium frame and Emonda SL full carbon fork
- The all-new frame is lighter and sleeker than previous ALR models and features aerodynamic Kammtail tubes with even cleaner cable routing
- Emonda shares the H1.5 race geometry of Trek's highest-end carbon Émonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
- Wireless Shimano 105 Di2 12-speed delivers faster, smoother and more responsive shifts than ever
- Internal cable routing
- Integrated cockpit with RCS Pro stem
- Tubeless-ready Bontrager Paradigm Comp wheels and Bontrager R2 tyres
- 28mm tyre clearance
Technical Specification
| Frame | Trek Ultralight 300 Series Alpha Aluminium, Invisible Weld Technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru-axle |
| Fork | Trek Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru-axle |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Stem | Bontrager RCS Pro, -7-degree, length - 70mm (47) / 80mm (50) / 90mm (52, 54) / 100mm (56, 58) / 110mm (60, 62) |
| Handlebar | Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, width - 38cm (47, 50) / 40cm (52) / 42cm (54-58) / 44cm (60, 62) |
| Bar Tape | Bontrager Supertack Perf tape |
| Front Brake | Shimano 105 R7170 hydraulic disc / Shimano SM-RT70, Center Lock, 160mm rotor |
| Rear Brake | Shimano 105 R7170 hydraulic disc / Shimano SM-RT70, CenterLock, 160mm rotor |
| Brake Levers | Shimano 105 R7170 |
| Front Derailleur | Shimano 105 R7150, braze-on, down swing |
| Rear Derailleur | Shimano R7150, 12-speed |
| Shift Levers | Shimano 105 R7170, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Cassette | Shimano 105 7100, 11-34, 12-speed |
| Crankset | Shimano 105 R7100, 50/34, crank length - 165mm (47) / 170mm (50, 52) / 172.5mm (54-58) / 175mm (60, 62) |
| Front Wheel | Rim - Bontrager Paradigm Comp, tubeless-ready, 24-hole, 21mm width, Presta valve / hub - Bontrager Paradigm Comp 25, tubeless-ready, 25mm rim width, 100x12mm thru-axle |
| Rear Wheel | Rim - Bontrager Paradigm Comp, tubeless-ready, 24-hole, 21mm width, Presta valve / hub - Bontrager Affinity Comp, Shimano 11/12-speed freehub, 142x12mm thru-axle |
| Front Tyre | Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x28c, clincher |
| Rear Tyre | Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x28c, clincher |
| Saddle | Bontrager P3 Verse Comp, steel rails, width - 155mm (47-52) / 145mm (54-62) |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, length - 250mm (47) / 330mm (50-62) |
| Pedals | Available to be purchased separately |
| Maximum Weight | 125kg / 275lbs (combined weight of bicycle, rider and cargo) |
| Manufacturer Claimed Weight | 8.80kg / 19.41lbs (56) |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
