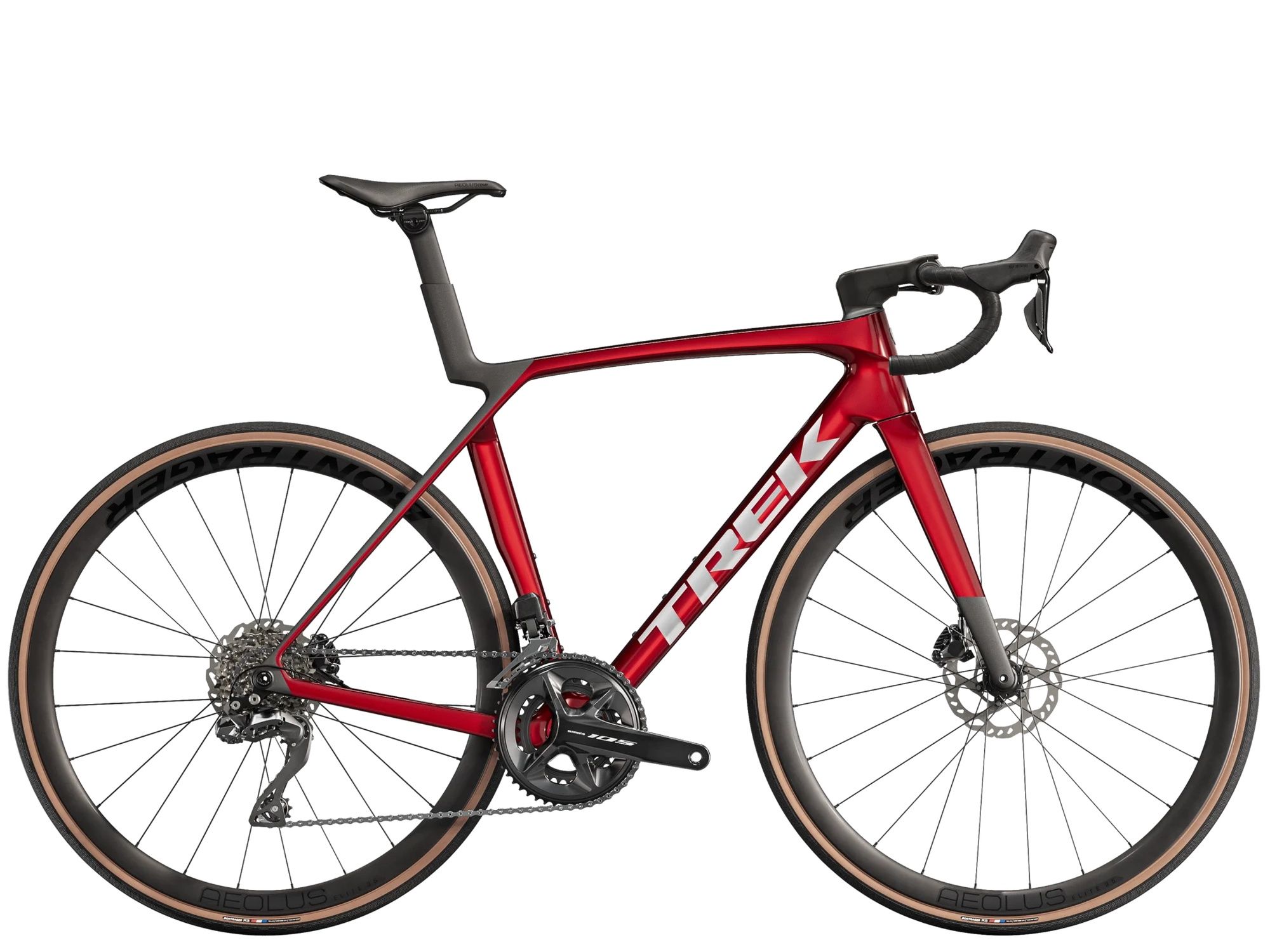

Trek Madone SL 6 Gen 8 Road Bike
The Madone SL 6 Gen 8 is a lightweight aero road bike packed with elite racing technology. Offering similar aero benefits to the Madone SLR Gen 8, it features an economical OCLV 500 Carbon lay-up and a two-piece cockpit with hidden cable routing.

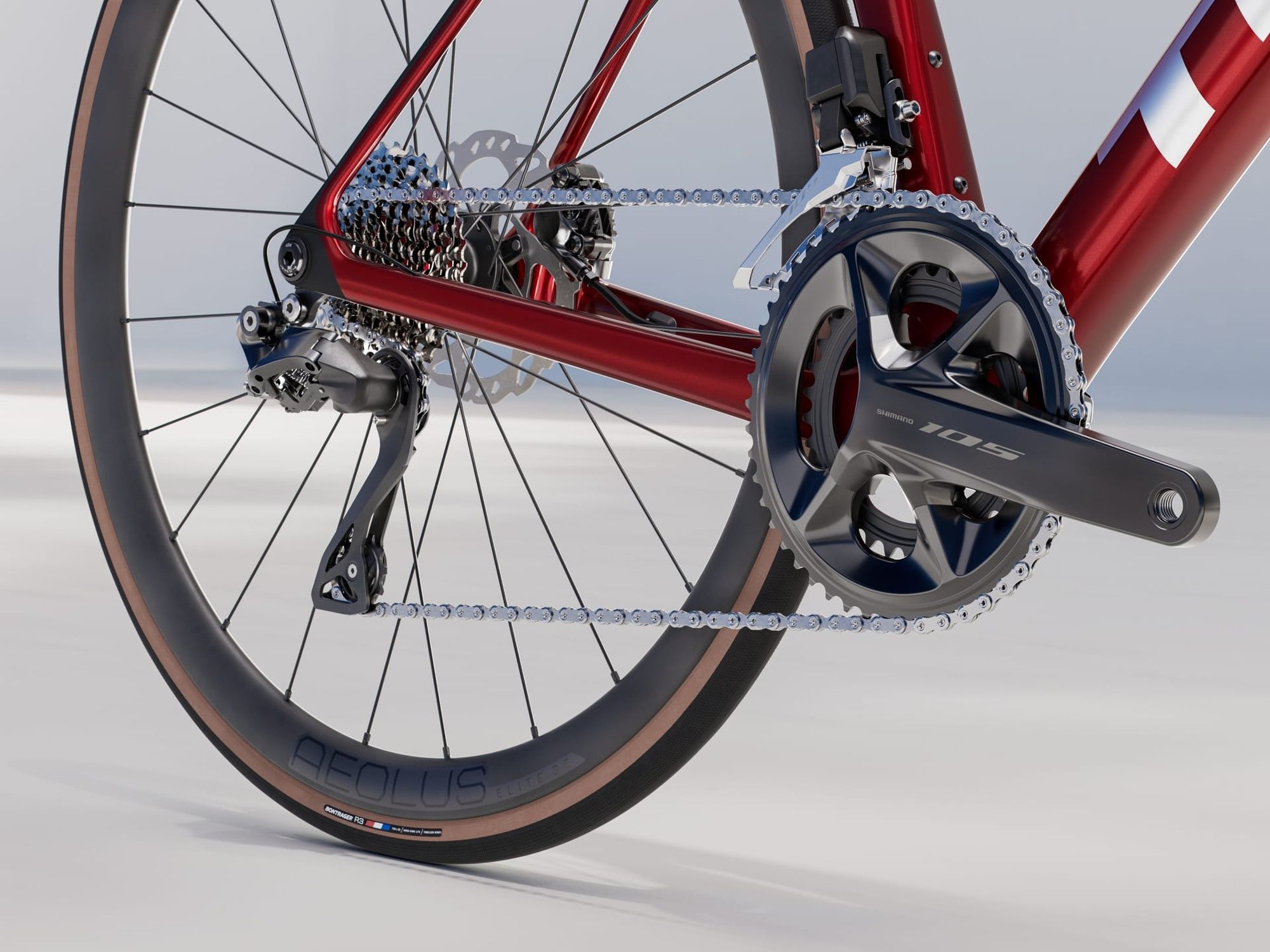

Designed for racing, its geometry keeps you comfortable on climbs and poised for attack. Equipped with a 2x12 Shimano 105 Di2 electronic group set, it ensures lightning-fast electronic shifting, complemented by Bontrager Aeolus Elite 35 carbon wheels set up tubeless for extra lightweight performance. Ideal for those seeking a featherweight road race bike, it's perfect for racing, club rides, or solo spins up winding canyons, balancing climbing efficiency and aerodynamics.

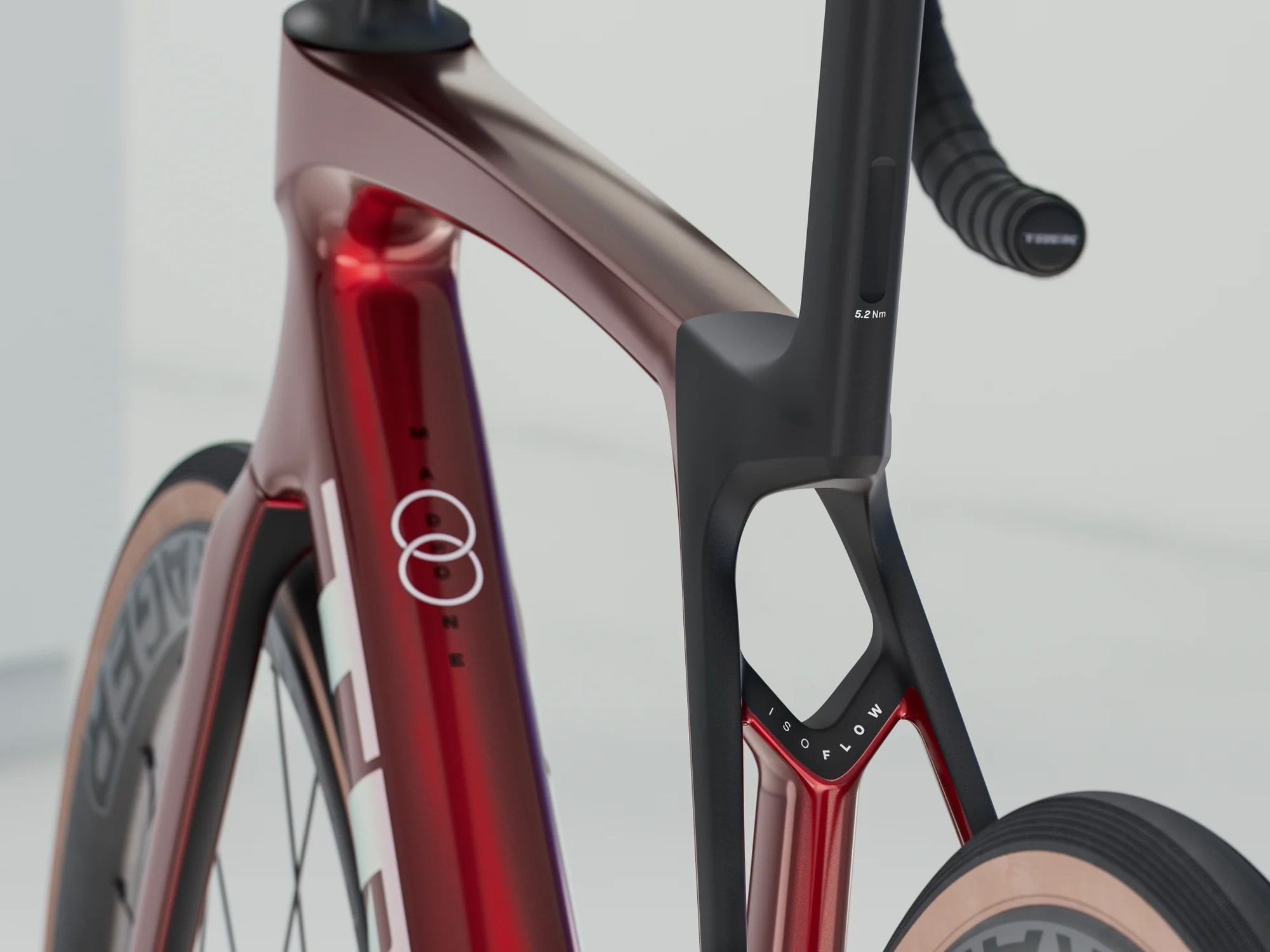

The Trek bike boasts Revolutionary Full System Foil aero tube shapes for optimized aerodynamics, a lightweight frame that excels on climbs, and the reliable Shimano Di2 group set. With lightweight, race-focused IsoFlow comfort technology, the Madone SL 6 Gen 8 helps you ride stronger and longer without sacrificing weight or aerodynamics.
Technical Specification
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275 lb). |
| Charger | Charging cable included |
| Shifter | Shimano 105 R7170, 12-speed |
| Front derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Rear derailleur | Shimano 105 R7150 Di2, 36T max cog |
| Crank | Shimano 105 R7100, 50/34 |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x 54T, 2x 56/43 |
| Wheel front | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle |
| Wheel rear | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142x12 mm thru axle |
| Hub front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear | Bontrager Affinity Comp, Shimano 11/12 speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 32 mm (as measured, see manual for details) |
| Saddle | Bontrager Aeolus Comp, steel rails |
| Seatpost | Madone aero carbon seat post, 0 mm offset |
| Handlebar | Bontrager Comp, alloy |
| Stem | Trek RCS Pro, -7-degree |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
Trek Madone SL 6 Gen 8 Road Bike Sizing
