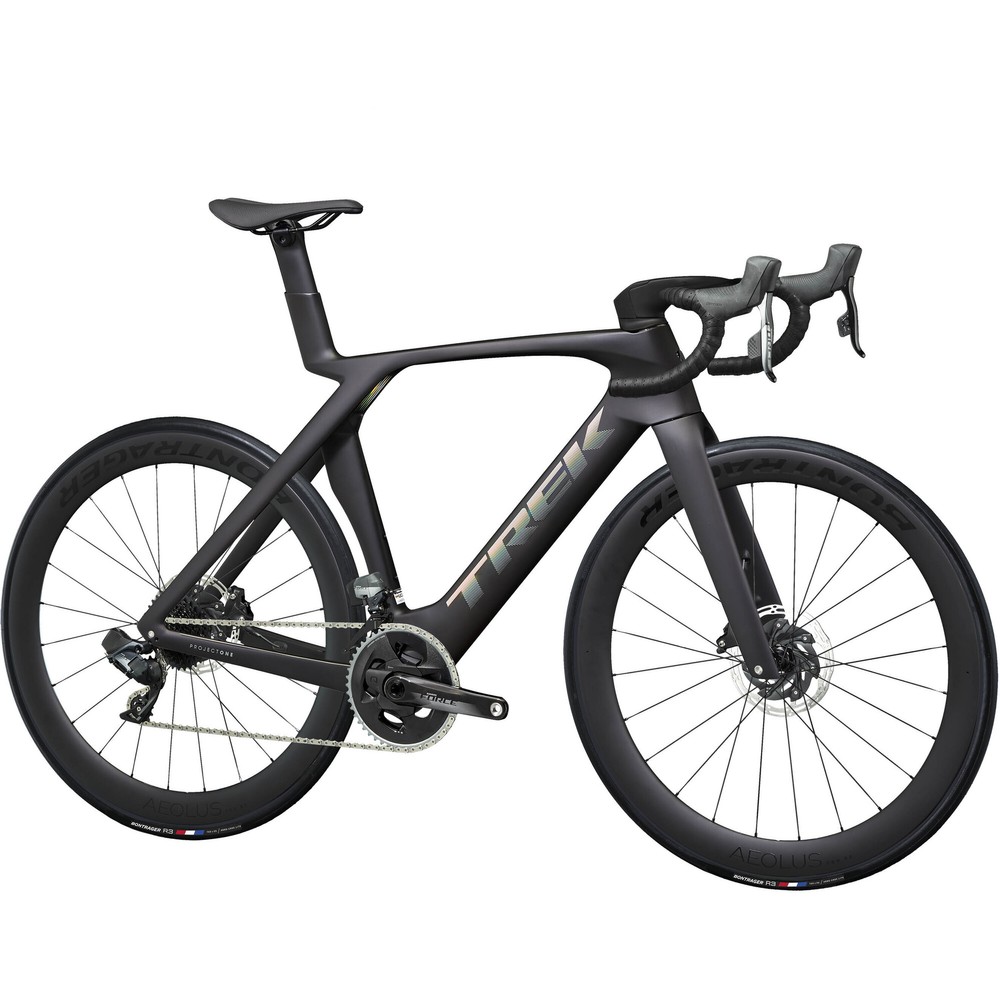

Trek Madone SLR 7 eTap Gen 7 Disc Road Bike
The striking Madone SLR 7 eTap Gen 7 Disc Road Bike from Trek offers low weight, impressive aerodynamics and incredible performance.
Unique IsoFlow integrates comfort and aerodynamics into the carbon frame. The floating seat tube flexes to take the edge off bumps and absorb road buzz whilst the bladed top tube also facilitates this movement.
The large hole in the lower seat tube accelerates air down the frame into a low-pressure zone behind the rider, thus lowering drag significantly. Kamm tail style tube shapes abound and Trek has also introduced a new cockpit design that is all about reducing the total frontal area. The hoods are 3cm further in than the drops, helping the rider into a much more aerodynamic position without having an adverse effect on handling.
Air that hits the head tube is channelled up towards the top tube and the IsoFlow zone whilst the large down tube helps to protect the bottles from the wind too, emphasising the importance Trek has placed on the rider and bike system as a whole. 800 Series OCLV Carbon, as used on the feather-weight Émonda climbing bike, keeps the weight of the Madone down.
The wireless, 12-speed SRAM Force eTap AXS groupset includes a power meter to better inform training or race efforts with many of the shifting functions able to be customised via the AXS app. Bontrager’s tubeless-ready Aeolus Pro 51 OCLV Carbon wheelset continues the aerodynamic, speed-biased theme, with the deep rims able to cut through the wind at will.
Highlights
- 800 Series OCLV Carbon, KVF frame with IsoFlow seat tube and invisible cable routing
- Madone KVF full carbon fork
- 12-speed SRAM Force eTap AXS groupset including a power meter
- SRAM Force hydraulic disc brakes
- Tubeless-ready Bontrager Aeolus Pro 51, OCLV Carbon wheelset
Technical Specification
Frame | Trek 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru-axle, H1.5 race geometry |
Fork | Trek Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru-axle |
Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
Stem | Trek Madone Integrated, length - 80mm (47) / 90mm (50-54) / 100mm (56,58) / 110mm (60,62) |
Handlebar | Trek Madone Integrated, width - 380mm (47) / 400mm (50,52) / 420mm (54-58) / 440mm (60,62) |
Bar Tape | Bontrager Supertack Perf tape |
Front Brake | SRAM Force hydraulic disc / SRAM CenterLine X, Center Lock, round edge, 160mm rotor |
Rear Brake | SRAM Force hydraulic disc / SRAM CenterLine X, Center Lock, round edge, 160mm rotor |
Brake Levers | SRAM Force eTap AXS, hydraulic disc |
Front Derailleur | SRAM Force eTap AXS, braze-on |
Rear Derailleur | SRAM Force eTap AXS, 36T maximum cog |
Shift Levers | SRAM Force eTap AXS, 12-speed |
Chain | SRAM Force, 12-speed |
Cassette | SRAM XG-1270, 10-33, 12-speed |
Crankset | SRAM Force AXS Power Meter, 48/35, DUB, crank length - 165mm (47) / 170mm (50,52) / 172.5mm (54-58) / 175mm (60,62) |
Front Wheel | Bontrager Aeolus Pro 51, OCLV Carbon, tubeless-ready, 51mm rim depth, 100x12mm thru-axle |
Rear Wheel | Bontrager Aeolus Pro 51, OCLV Carbon, tubeless-ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru-axle, skewer - Bontrager Switch thru-axle, removable lever |
Front Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c, clincher |
Rear Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c, clincher |
Saddle | Bontrager Aeolus P2 Elite, 155mm width (47-52) / Bontrager Aeolus Elite, austenite rails, 145mm width (54-62) |
Seatpost | Trek Madone aero carbon internal seat mast cap, integrated light mount, 0mm offset, short length (47-54) / Trek Madone aero carbon internal seat mast cap, integrated light mount, 0mm offset, short length (56-62) |
Pedals | Available to be purchased separately |
Includes | SRAM eTap battery pack (with charger) |
Maximum Total Weight Limit | 125kg/275lbs (combined weight of bicycle, rider and cargo) |
Manufacturer Claimed Weight | 7.76kg / 17.11lbs (56) |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
