Trek Project One Madone SLR 7 Disc Road Bike 2020

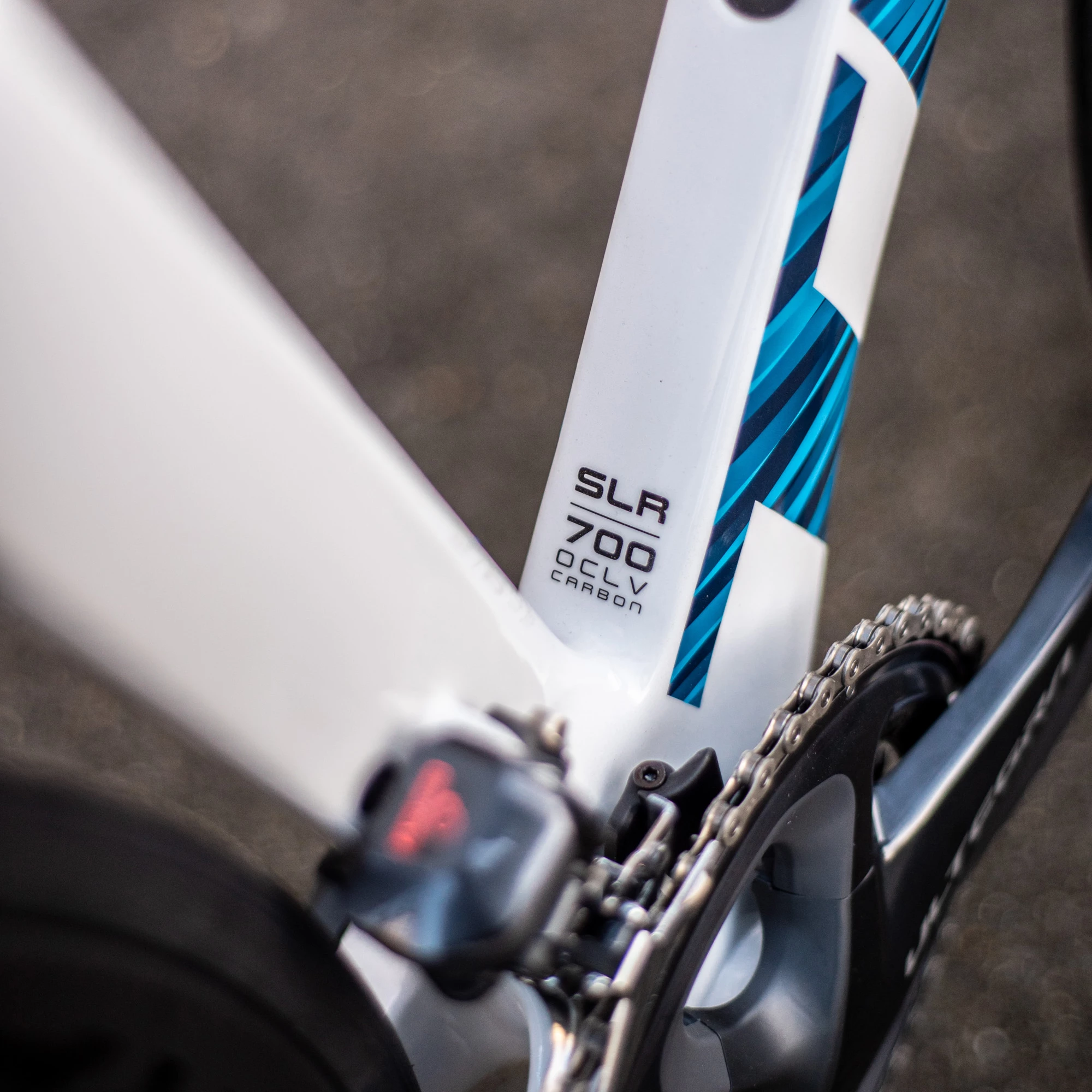

The Project One Madone SLR 7 Disc Road Bike from Trek has an aerodynamic 700 Series OCLV Carbon frame with Kammtail Virtual Foil tube shapes and internal cable routing like many other premium bikes. Where the Madone SLR 7 differs is that the frame also incorporates an IsoSpeed decoupler which enables the seat tube to move independently of the rest of the frame to add compliance. The amount of potential movement can be adjusted to suit the rider or course, and the rebound is controlled by an elastomer so it's always smooth.
The 50mm deep Bontrager Aeolus Pro 5 OCLV Carbon wheels are tubeless-ready and the semi-integrated handlebar and stem allow for adjustment so that a comfortable position is easy to find. Shifting and braking both come courtesy of Shimano and their R8000 mechanical groupset with hydraulic brakes so their performance and reliability match that of the rest of the bike.
Features
- Trek 700 Series OCLV Carbon frame with KVF tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast
- Shimano Ultegra Di2 11-speed electronic groupset
- Shimano Ultegra hydraulic disc brakes
- Bontrager Aeolus Pro 5, OCLV Carbon Tubeless Ready wheelset, 50mm deep
Technical Specification
| FRAME | Trek 700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, DuoTrap S compatible, flat-mount disc, 142x12mm thru-axle |
| FORK | Trek Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100mm thru-axle |
| STEM | Trek Madone aero, invisible cable routing, 7 degree |
| HANDLEBAR | Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop |
| FRONT BRAKE | Shimano Ultegra R8070 hydraulic disc |
| REAR BRAKE | Shimano Ultegra R8070 hydraulic disc |
| BRAKE LEVERS | Shimano Ultegra R8070 hydraulic disc |
| FRONT DERAILLEUR | Shimano Ultegra R8050 Di2, braze-on |
| REAR DERAILLEUR | Shimano Ultegra R8050 Di2, short cage, 30T max cog |
| SHIFT LEVERS | Shimano Ultegra Di2, R8070, 11-speed |
| CASSETTE | Shimano Ultegra R8000, 11-28, 11-speed |
| CRANKSET | Shimano Ultegra R8000, 50/34 (compact) |
| FRONT WHEEL | Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12mm thru-axle |
| REAR WHEEL | Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 142x12mm thru-axle |
| FRONT TYRE | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c clincher |
| REAR TYRE | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c clincher |
| SADDLE | Bontrager Aeolus Elite, austenite rails |
| SEATPOST | Trek Madone aero carbon seatmast cap, integrated light mount, 25mm offset |
| CLAIMED WEIGHT | 8.2kg size 56cm |
