How to Adjust a Front Derailleur
Diagnosing Common Front Derailleur Issues
The first step to resolving front derailleur problems is accurate diagnosis. Common symptoms include chain rub, slow or skipping shifts, and dropped chains. Understanding the root causes of these issues is crucial for effective solutions. Chain rub typically occurs when the chain comes into contact with the front derailleur cage, often due to cross-chaining (riding in smallest rear sprocket and smallest chainring or largest rear sprocket and largest chainring) or improper alignment. Slow or skipping shifts can result from incorrect cable tension or limit screw settings. Dropped chains, on the other hand, usually indicate problems with chainring teeth or low limit screw adjustments.
Addressing these issues involves a systematic approach to identify and fix the underlying problems. Knowing what to look for can save you time and ensure your bike performs at its best.
Chain Rub Troubles
Chain rub is a common annoyance that can significantly affect your ride. It occurs when the chain contacts the front derailleur cage and not only causes noise but can also lead to inefficient pedalling.
To avoid chain rub and ensure smooth shifting, it is important to:
1. Avoid cross-chaining by using appropriate gear combinations.
2. Shift to a lower gear before shifting to the big chainring.
3. Adjust the front derailleur to ensure proper chainline alignment.
By following these steps, you can eliminate chain rub and enjoy a smoother and more efficient ride.
To resolve chain rub, start by checking your gear combinations and adjusting them to avoid cross-chaining. Fine-tuning the cable tension using the barrel adjuster can also help mitigate this issue. Turning the barrel adjuster counter-clockwise increases tension, which may alleviate chain rub.
Additionally, trimming the front derailleur during a gear shift can ensure the chain doesn’t rub against the cage.
Shifting Slow or Skipping?
Experiencing slow or skipping shifts can be frustrating, especially during critical moments in a ride. These issues often stem from incorrect cable tension or misadjusted limit screws. If your shifts are not responsive, it might be due to excessive inner wire tension, preventing the front derailleur from resting on the low-limit screw stop. This scenario can alter the inner limit and cause the chain to fall off the rings.
To address this, ensure the limit screws are set correctly. The limit screws control the inward and outward travel of the front derailleur cage, preventing it from moving beyond its intended range. Adjusting these screws and checking the cable tension can restore smooth and precise shifting.
Dropped Chain?
A dropped chain can be a nightmare, often occurring during a shift and leaving you stranded until it’s fixed. This issue is typically caused by worn outer chainring teeth or improper low limit screw adjustments. When the chain falls off the chainring, it can result in a sudden loss of power and potentially damage your bike.
To prevent chain drops, follow these steps:

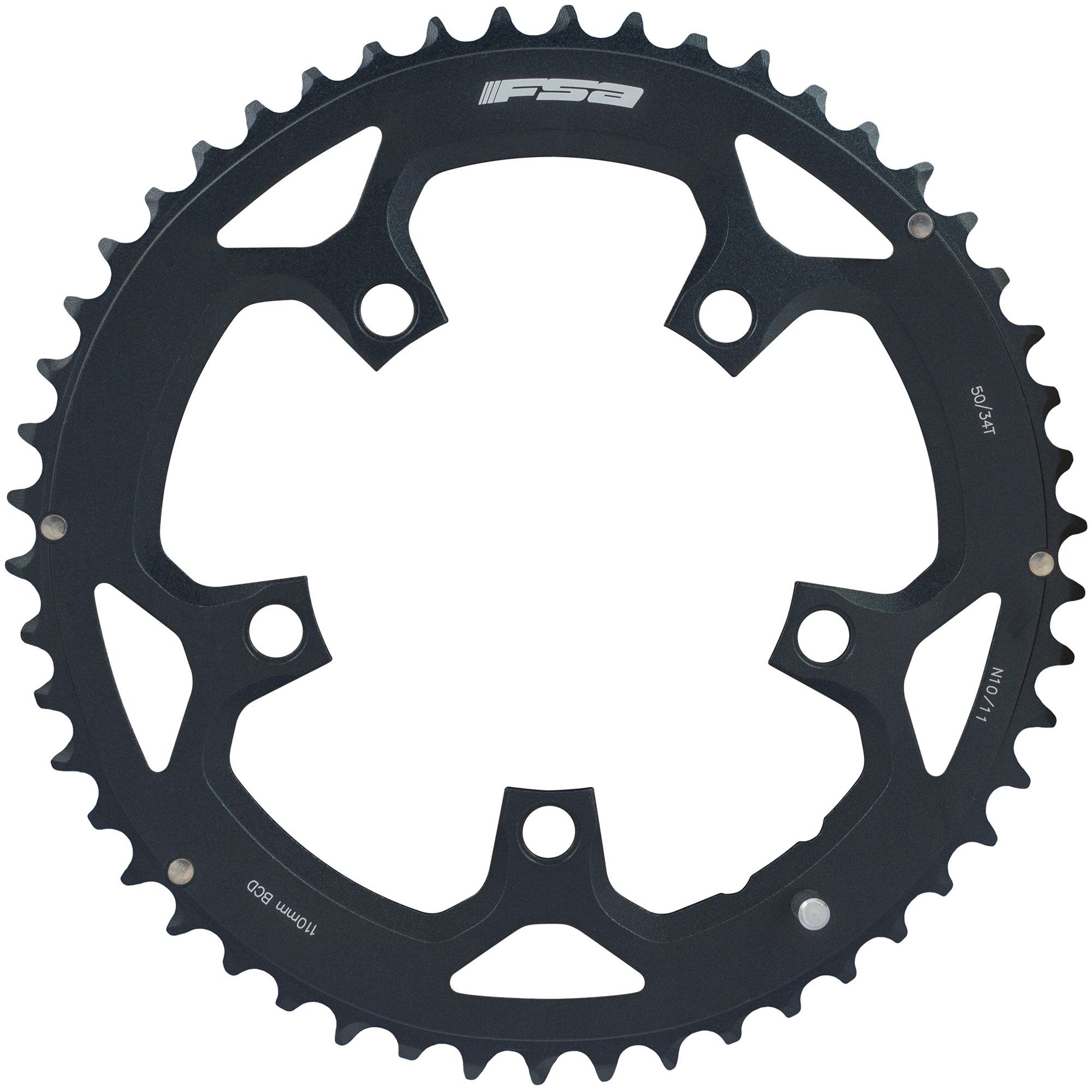

1. Regularly inspect the chainring teeth and replace the chainring that is excessively worn. A tip to see worn chainrings is if you can see clear daylight between the front of the chainring teeth and back of the chain at the top of the ring – if yes it’s often a good time to change.
2. Adjust the low limit screw to ensure the chain doesn’t fall off when downshifting to the small chainring. Loosen the screw a quarter turn counter-clockwise and test the shift, making further adjustments as necessary.
3. Proper alignment and maintenance can significantly reduce the chances of encountering this issue.
Setting Up Your Front Derailleur Correctly
Ensuring your front derailleur is set up correctly is fundamental and this involves precise positioning, limit screw adjustments, and indexing. The physical placement of the front derailleur, including its height and rotation, must be accurate to facilitate smooth shifting. The high and low limit screws control the derailleur cage’s movement, preventing the chain from dropping or rubbing against the cage. Finally, indexing adjusts the cable tension to align with the shifter lever’s stops, ensuring accurate shifts.

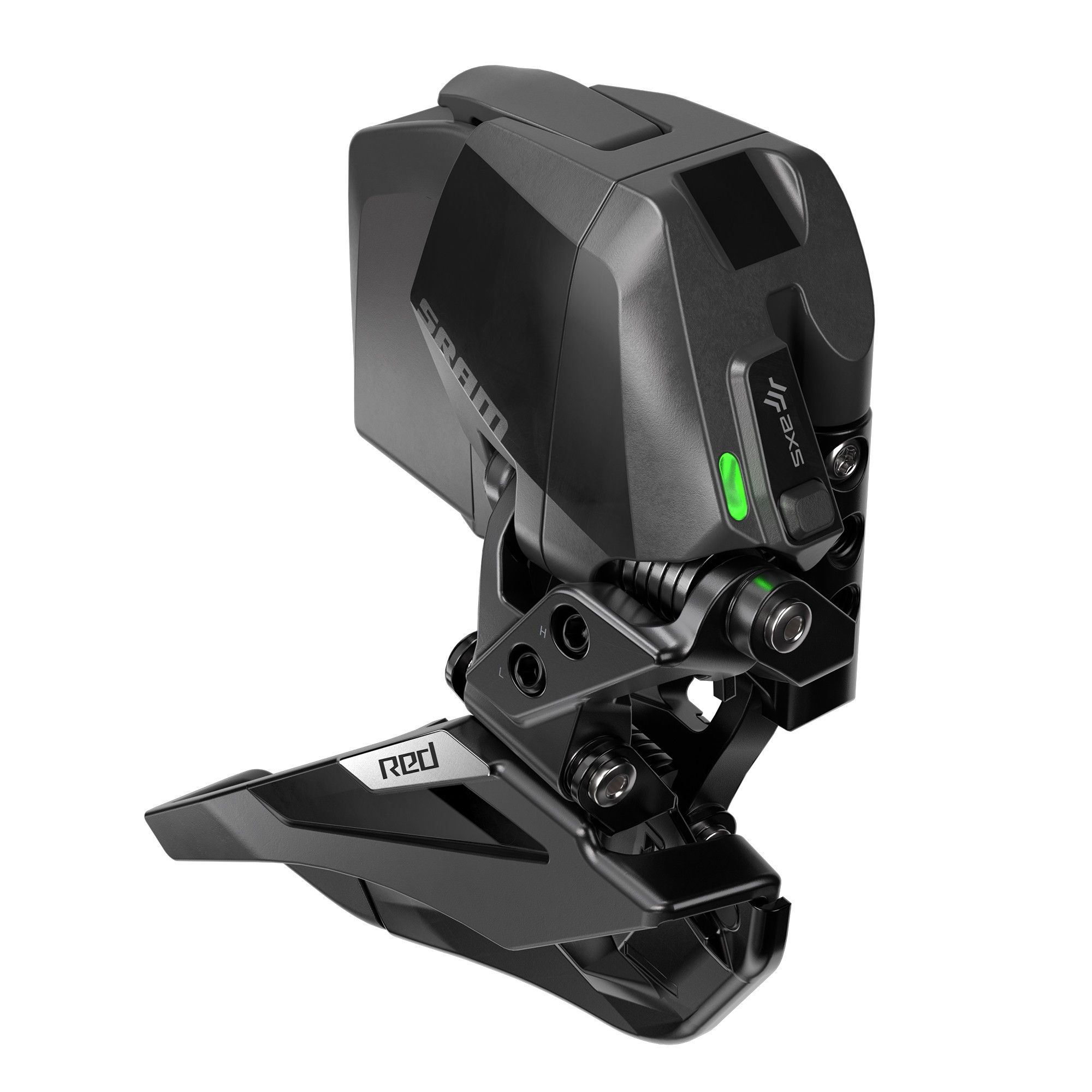

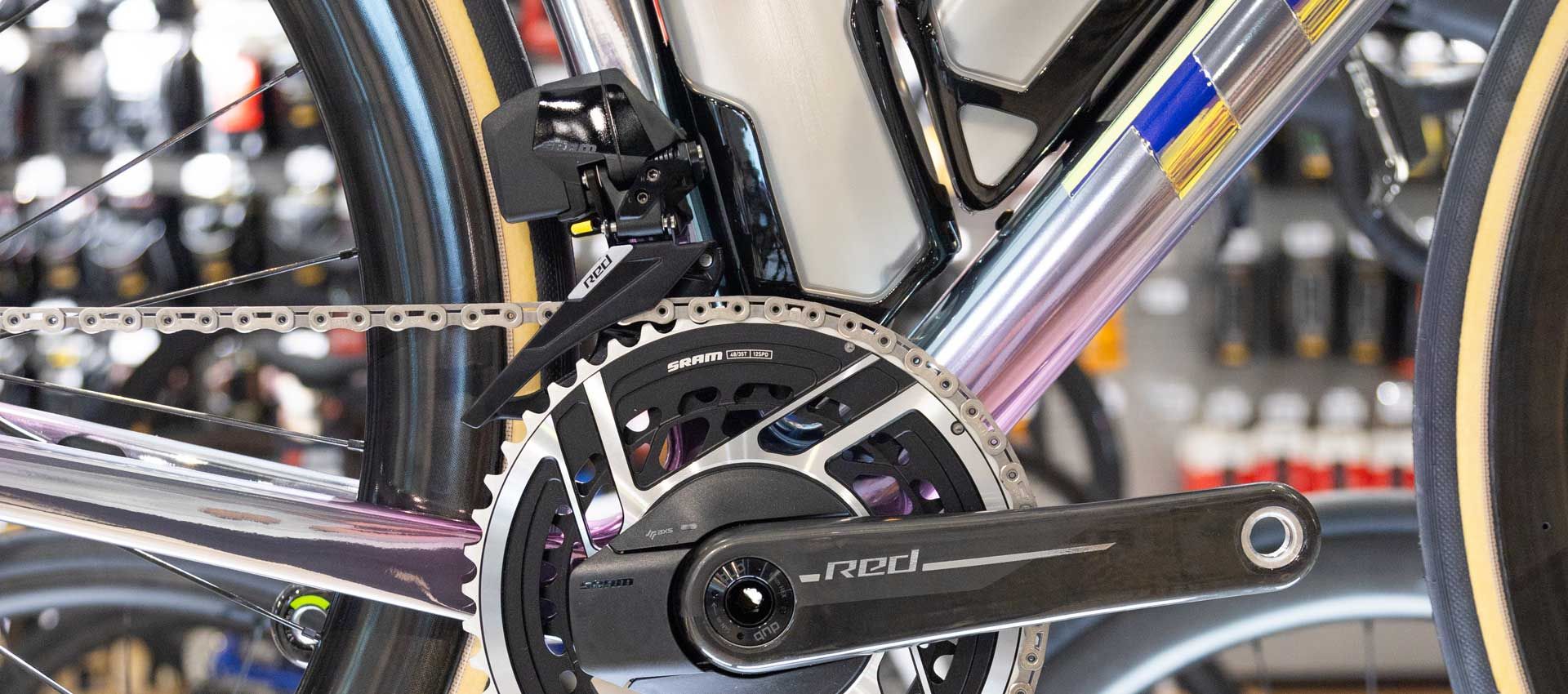

Position Perfection
Achieving the correct position for your front derailleur is crucial for seamless shifting. Here are some guidelines to follow:
1. The derailleur cage should be parallel with the chainrings to ensure optimal performance.
2. Maintain a 1 to 3mm gap from the large chainring for accurate alignment.
3. The correct height positioning is approximately 2mm above the teeth of the outermost chainring.
Following these guidelines will help you achieve the correct position for your front derailleur.
If the height or alignment is incorrect, adjust the positioning clamp by loosening the derailleur clamp bolt and repositioning the derailleur. Ensuring these settings are precise will greatly enhance your bike’s shifting efficiency.
Limit Screw Logic
Limit screws play a pivotal role in controlling the movement of the front derailleur cage. The high limit screw (H) adjusts the outward travel, allowing the chain to reach the largest chainring without overshooting. This setting, combined with correct cable tension, ensures precise shifting. Periodically checking the high limit screw ensures the derailleur doesn’t move more than 1mm past the chain when on the largest ring.
The low limit screw (L) regulates the inward movement, ensuring the chain shifts smoothly onto the smallest chainring and maintains an optimal gap to avoid chain rub. Proper adjustment of these screws is essential for preventing chain drops and ensuring smooth shifting.
Indexing
Indexing is the final step in setting up your front derailleur. It involves adjusting the cable tension to align with the shifter lever’s stops, ensuring precise gear changes. Fine-tuning the barrel adjuster is critical for crisp and accurate shifts. Turning the barrel adjuster counter-clockwise increases cable tension, improving shifts to larger chainrings. Conversely, turning it clockwise relaxes the tension for smoother shifts.
Proper indexing achieved through adequate cable tension ensures that the shift lever accurately calibrates to desired gear changes. This step is crucial for maintaining smooth and reliable shifting performance.
Fine-Tuning Steps for Precision Shifting
Fine-tuning your front derailleur is essential for achieving precision shifting, and proper front derailleur adjustment plays a crucial role in this process. Here are the steps to follow:
1. Suspend the rear wheel off the ground and shift through all front gears to observe smooth chain transitions.
2. Set the adjuster bolts.
3. Test each gear combination to ensure there’s no chain rub against the front derailleur cage.
Modern Shimano front derailleurs feature an integrated cable tension adjustment mechanism, with tension marks for precision, eliminating the need for a traditional inline barrel adjuster. Utilising this feature can significantly enhance your bike’s shifting accuracy, not only for front derailleurs but also for the rear derailleur.
Pivot Points
Maintaining smooth front derailleur movement requires regular lubrication of pivot points. These points are crucial for preventing friction and ensuring optimal performance. Light lubrication is recommended for these pivot points, avoiding grease that can attract dirt.
Monthly lubrication with a light bike lubricant can maintain smooth component action and extend their longevity. By keeping the pivot points well-lubricated, you can prevent sluggish or unresponsive shifting, ensuring your front derailleur operates smoothly.
Assessing Cable Health
Regular inspection of shift cables and housings is critical for maintaining the optimal performance of the front derailleur. Look for signs of wear such as fraying, rust, and other damage. If the shift cable or housing is frayed or blocked, it should be replaced or lubricated to ensure reliable operation.
Slow and sluggish shifting can often be attributed to a buildup of grime on the shift cable rather than solely to adjustment issues. Regular maintenance of cables and housings is essential for smooth and reliable shifting.
