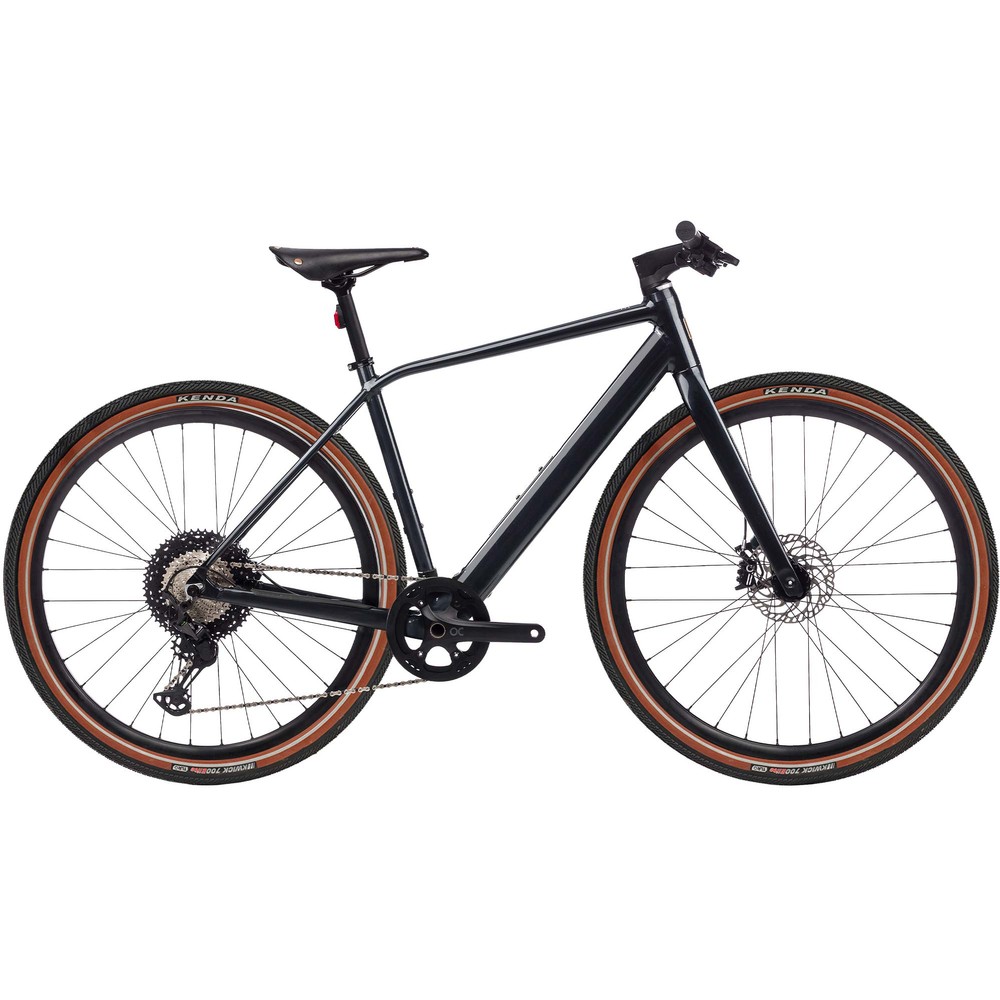

Orbea Vibe H10 Electric Hybrid Bike 2021
The Orbea Vibe H10 Electric Hybrid Bike is a lightweight machine designed to revolutionise the way you travel around town. Developed for the rigours of city life, it is reliable, sleek and sophisticated, light enough to be taken up to the apartment, yet powerful enough to assist you on steep hills. A slender downtube hides the 248Wh battery, and the motor is mounted on the rear hub to give the classic appearance of a traditional bike. Loaded with features to help you navigate the city, the Vibe H10 is a smart choice for the modern leisure cyclist.
With 40Nm of torque, the Ebikemotion X35 Plus motor delivers natural-feeling power over a range of three levels of support up to a maximum speed of 15.5 mph / 25 km/h. The assistance setting can be changed with the handlebar-mounted iWoc TRIO remote, ensuring a setting for all situations and gradients. The cockpit is clean and tidy thanks to the internally routed cables, matching the clean lines of the frameset, and a carbon fork damps road vibrations to reduce fatigue on longer rides. With a 248Wh capacity, the slimline battery packs enough power to get you around town. For longer rides an aftermarket range extender can be equipped, enhancing the range of the Vibe.
Integrated lights promote visibility in low-light situations, and draw power from the internal battery for ease of use. A 12-speed Shimano drivetrain provides ample gearing for even the toughest climbs, and the low-profile Kenda tyres are fast-rolling on tarmac and cycle paths. Maura MT5 E-STOP brakes are designed for the extra weight of an electric bike, ensuring confident braking in even poor weather conditions. Brooks take care of the contact points, with their Cambium saddle and grips being a comfortable choice for all-day riding.
Browse our range of Orbea electric hybrid bikes today.
Highlights
- Integrated frame lighting
- Lightweight internal Ebikemotion 248Wh battery
- Ebikemotion X35 hub motor system
- Minimalist and integrated design to mimic the look of a manual bike
- Torque Simulation Algorithm to mirror the effort you put in, with a max torque of 40Nm
- Near drag-free pedalling when the motor is not in use
- Discreet iWOC TRIO handlebar remote
- 12-speed Shimano XT/Deore groupset for smooth shifting
- Powerful hydraulic Magura MT5 E-STOP disc brakes
- Brooks saddle and grips
- Knog OI Classic bell
- Aftermarket range extender available
Battery Specifications
- Maximum Assist: 250w / 40Nm torque
- Motor Weight: 2.1kg
- Battery Power: 248wh
Technical Specification
| Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135x9 QR, flat mount disc, 700x45 maximum tyre clearance, 1" 1/2 semi headset, 41x86,5 Pressfit BB, carrier and Mudguard compatible |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, mudguard compatible |
| Headset | Orbea Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | Orbea OC1 31.8mm interface -6º |
| Handlebar | Orbea Alloy 31.8mm 12mm Rise 700mm |
| Grips | Brooks Comfort Cambium 130mm |
| Front Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Brake Levers | Magura MT5 E-STOP |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus 12-speed |
| Shift Levers | Shimano Deore M6100 12-speed |
| Chain | KMC X12 |
| Cassette | SunRace CSMZ80 11-51t 12-Speed Metalic E-bike |
| Crankset | Orbea OC 42t, with chainguard |
| Front Wheel | Blackjack Ready GR |
| Rear Wheel | Blackjack Ready GR |
| Front Tyre | Kenda K1052 700x45C Reflective type TLR, clincher |
| Rear Tyre | Kenda K1052 700x45C Reflective type TLR, clincher |
| Saddle | Brooks Cambium C19 275x184 |
| Seatpost | Orbea Alloy 27.2, offset |
| Pedals | Available to be purchased separately |
| Motor | Ebikemotion X35 Plus 25kmh |
| Ui/Remote | Ebikemotion iWoc TRIO |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Accessories | Integrated lights front and rear (Lezyne FENDER STVZO rear light), Knog OI Classic bell |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
